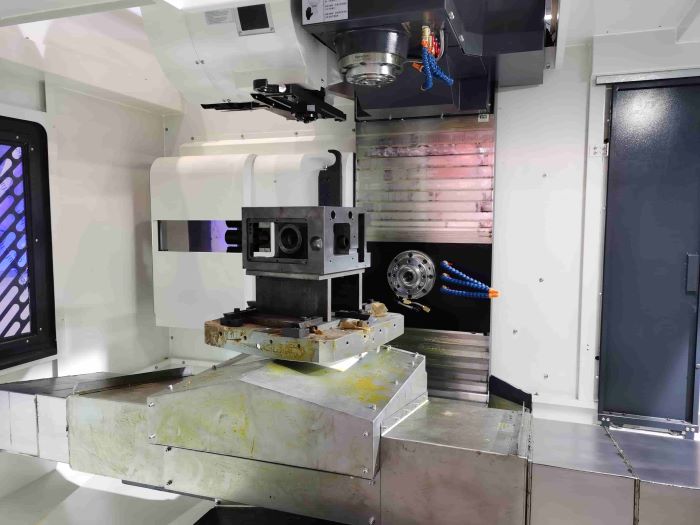

Folks in manufacturing engineering know that multi-material CNC machining is a game-changer these days. We're dealing with parts made from various alloys combined to balance strength, weight, and other properties. Think of aerospace components where titanium meets aluminum to handle heat without extra mass, or automotive pieces blending steel and bronze for wear resistance on one side and anti-corrosion on the other. These hybrids deliver performance that single materials can't match. The trouble starts when your CNC machine hits the boundary between alloys. Tool wear skyrockets, finishes get rough, and precision suffers. Getting tool strategies right across these materials is crucial to avoid failures and keep production smooth.
Consider a typical setup: a titanium billet with a gradient from Ti-5553 at the base for durability to Ti-64 on top for easier cutting. Your spindle runs at 2000 RPM with coolant flowing, but crossing the bond line boosts cutting forces by 30 percent as hardness rises from 300 to 350 HB. Chatter appears, wear increases rapidly, and the edge radius on your insert grows too fast. This happens in real shops—vibrations mark the surface, tolerances slip. I've seen it firsthand on jobs where ignoring these shifts leads to rework or scrap.
This topic is hot right now because additive methods enable complex builds, leading to more hybrid machining. CNC operations often follow deposition, but toolpaths need tailoring for thermal differences, chip variations, and potential corrosion at joins. You can't rely on standard code; adaptive approaches are key. We'll cover the main issues, tool choices, parameter adjustments with examples like titanium blends and steel-nickel combos, plus simulation aids. By the close, you'll have practical ways to handle these challenges effectively. Let's get into it.
Multi-material CNC work presents unique hurdles because material removal isn't uniform. Each alloy has distinct traits: aluminum 6061 cuts easily at high speeds but builds up on tools; titanium eats inserts due to poor heat transfer and reactivity; Inconel hardens quickly and resists standard rates. Combining them creates zones where behaviors conflict—sharp changes in strength or heat response that bend parts during cuts.
Look at an aerospace bracket: Ti-6Al-4V base for endurance, Al-7075 top for lightness. As the mill crosses, aluminum cools fast, but titanium traps heat, weakening the tool while loads increase. Deflection becomes inconsistent. On a Haas VF-2, without feed changes, vibrations at 150 Hz turn tight tolerances loose.
Interfaces are the core problem. Bonded via sintering or cladding, these areas have mixed structures—altered grains or hard phases. In graded materials, changes are subtle, but tools demand steadiness.
For instance, in titanium billets mixing Ti-64, Ti-6242, Ti-5553, and Beta C, cutting along pairings holds forces at 200 N, but across them spikes to 300 N from phase shifts. Surfaces roughen from 1.2 µm Ra to 3.5 µm, with damage to 50 µm depth affecting inspections. This comes from turning tests on 1000°C sintered pieces, showing direction matters.
Another example: EV battery housings with steel-aluminum. 4140 steel needs coated tools at slow speeds against hardening; aluminum wants high-helix uncoated at 10,000 RPM. At the cross, wear doubles as aluminum sticks in steel-worn spots. Some operations pause for chip clears, but proactive path ramps work better.
Heat varies wildly—titanium's 0.52 J/g°C versus aluminum's 0.9—causing bows of 0.02 mm. Mechanical side: brittle materials chip cleanly; ductile ones string, burying tools.
In CoCrMo-Ti-6Al-4V implants, turning sees 15 percent more chipping leaving cobalt. At 150 m/min and 0.2 mm/rev, peck cycles help.
Solutions begin with tools suited to the mix. Carbide is versatile, PCD for non-ferrous, CBN for steels. Coatings like TiAlN for hot titanium, DLC for sticky aluminum.
Geometries adapt: 45° helix for soft shearing, but vibrates in hard. Variable helix from 35° to 42° bridges.
In nickel-aluminum blades, a 12 mm variable-pitch end mill zones paths: 80 percent engagement in Ni, 40 in Al. Life goes from 20 to 45 minutes, even 1.8 µm Ra at welds.
From superalloy work, milling Inconel 718 on Hastelloy uses ceramics at 40 m/min, then carbide. CAM like Mastercam adjusts angles 5° to 15° at shifts.
Dynamic settings rule. SFM: 120 for Ti, 300 for Al. Slow feeds 20-30 percent over 2 mm at boundaries.
Turning graded Ti: 100 m/min, 0.15 mm/rev in beta; 80, 0.1 in alpha-beta, forces under 250 N. MQL with oil reduces damage 25 percent.
Milling steel-Ti prosthetics: dry on steel, cryo on Ti for 40 percent longer life. 200 SFM steel, 80 Ti, trochoidal paths.
Simulation predicts, monitoring reacts.
FEM forecasts stresses. In Ti gradients, ABAQUS shows 1.5x peaks at bonds; trochoidal cuts drop 18 percent.
For steel-bronze, ANSYS flags 0.15 mm deflection, confirmed in cuts, fixed with engagement control.
Hybrid AM: Sims guide DOC from 0.5 mm rough on Ti to 0.1 finish on steel, 95 percent density.
Sensors on spindles feed controls.
Renishaw on DMG Mori for Al-Cu: drops feed 15 percent at 120 Hz, 30 percent life gain.
IR in Ti catches 600°C spots, boosts coolant.
Multi-alloy die: cams switch flood to mist, 22 percent less wear.
Three examples illustrate.
Inconel 718-Ti blades: creep meets light. Zoned milling, ceramics 30 m/min Inconel, carbide 100 Ti. Ramps at bonds. 25 percent faster, 2 µm finish. Changes every 30 parts, halved with paths.
CoCr-Ti stems: compatible strength. Variable feeds 0.08 mm/rev CoCr, 0.12 Ti. Cryo avoids color. ISO surfaces, 50 parts life.
Steel-Al trays: Al skin on steel. Helical pockets, ramps. MQL. 15 percent less scrap, 0.05 mm flat.
We've gone through interfaces, tools, tuning, sims, and cases. As graded and hybrid parts grow, strategies must advance. Simulate early, zone paths, use sensors. Test on scraps, note successes. Shops that adapt turn challenges into strengths. Tackle that alloy mix with the right setup and make reliable parts.
