Folks in manufacturing engineering know how crucial it is to get parts right the first time. We're constantly figuring out ways to boost accuracy and keep things running smoothly. This discussion looks at two main methods: surface treatment and tolerance control. Each plays a role in machining, but the question is which one does more to push precision and overall output higher. Consider a typical scenario on the shop floor with a CNC setup producing components. What separates a flawless fit from something that requires adjustments? It could be the finish on the surface through coatings or polishing, or it might come down to how strictly dimensions are held in check via planning and checks.
To lay this out properly, let's think about why these matter in practice. Machining goes beyond just shaping materials; it's a blend of technique and knowledge. From old-school manual tools to today's smart systems with real-time monitoring, the aim hasn't changed: deliver parts that hit exact specs while keeping expenses, timelines, and dependability in line. Surface treatment deals with altering the outer layer—things like applying layers, smoothing, or hardening—to improve traits such as resistance to wear, rust, or slip. Tolerance control, meanwhile, focuses on keeping sizes and shapes within set boundaries, using careful setup, equipment, and verification.
Comparing them makes sense because in fields like aircraft parts or car transmissions, picking the better path can lead to longer-lasting products versus early breakdowns. Take turbine blades: treatments guard against wear, while strict tolerances maintain airflow efficiency. But which yields better results for top-notch precision? We'll break it down with in-depth explanations, drawing from solid studies. Expect coverage of fundamentals, upsides and downsides, plus examples from familiar sectors. This should help apply ideas to your work. Let's move forward.
Start with some background. Early manufacturing relied on basic measuring tools for tolerances and simple protections for surfaces. Now, we have advanced options like beam-based layering for finishes and tiny-scale controls through responsive cutting. Findings from journals indicate combining them can yield big gains, though one often stands out based on the job. In layered building processes like fused deposition, tweaking for smooth finishes can offset wider allowances, improving results without extra spending.
As we go on, sections will cover details from work on spark erosion cutting, rotating setups, and similar. Highlights include roughness cuts of up to 40% via treatments, or how allowance strategies in toothed systems raise carrying ability. Stay with it for a full view.
Let's start with surface treatment. Suppose you've cut a rod from tough steel. It measures up, but the outside is coarse, likely to rust, and could degrade fast under pressure. Surface treatment steps in to upgrade that layer, changing qualities like toughness, evenness, and shield against surroundings, all without touching the inner material.
Common types include layering. Methods such as vapor-based physical or chemical deposit add slim covers like nitride of titanium to cut drag and boost endurance. In spark erosion studies, mixing eco-safe additives into the fluid cut roughness by around 40%, yielding hole- and split-free results. This ups accuracy by holding steady sizes in tough spots, like shaping tool metals.
Polishing or abrading for finer finish is another go-to. For accurate turning mechanisms, toughening gears then abrading boosts resistance to erosion. In flight gear sets, using tapered abrading tools post-toughening stretches lifespan by lowering rub, letting parts take heavier duties without bending.
Thermal processes like carbon infusion or nitrogen hardening matter too. They spread elements into the outer to strengthen it. In vehicle rings for pistons, nitrogen treatment cuts wear, holding accuracy over countless turns. Example: diesel motor parts reach outer strength of 1000 HV via nitrogen, reducing shifts in allowances from degradation.
Laser overlaying melts cover material on with beams. Work on titanium mixes shows strong layers that improve rust guard and fatigue hold. Case in point: beam-overlaid turbine edges permit narrower running allowances since treated outsides fight erosion more than plain ones.
Drawbacks exist, though. Treatments might add leftover strains or tweak sizes a bit, calling for extra cutting after. Done well, they extend usability and cut upkeep. Consider body inserts—plasma dusting ensures they work with tissues and fit exactly.
Going further, upsides stand out. Treatments refine tiny features for better accuracy. In fused deposit prints, chemical steps smooth roughness, aiding exact fits. Tests with PLA found adjusting pull-back and heat lowered surface shifts, meeting standards without initial strict allowances.
Issues involve expense and setup. Fancy methods like chemical vapor need special gear, and mishandling leads to spotty covers hurting output. In turning setups, bad treatment could cause uneven degradation, offsetting allowances eventually.
Examples: Electronics use treatments on board pieces to stop oxidation, keeping contacts sharp. Oil extraction tools get carbide hard-facing welded on for strength, enabling exact drilling in rough settings.
Switching to tolerance control. This underpins exact engineering—setting and holding variation limits in measures and forms. In cutting, it guarantees parts join right and work as planned, cutting process errors.
It begins at design with rules like geometric sizing and allowing to mark bounds. For toothed production, holding allowances on profiles ensures even engagement. Studies on precise turning note how shifting offset factors in high overlap gears keeps touch rates over 2, cutting shakes and upping accuracy.
Approaches include ability checks, with Cp/Cpk showing spec matches. In spark erosion, variance analysis optimizes for low roughness with tight allowances. One work tuned off-pulse and tool substance, improving waste removal and size truth.
Responsive cutting uses instant input to fix for tool fade or heat swell. In numeric mill of light alloys, detectors watch sizes for sub-tiny allowances. Example: forging light metal parts with exact molds cuts extra stock, leading to narrower allowances and less scrap.
Chart-based statistical oversight tracks changes, stopping bad parts. In additive builds, tuning layer depth controls allowances, as fused deposit tests showed pull-back minimizing size flaws.
Gains are huge for exactness. Narrow allowances mean superior join and role, like chip-making gear needing tiny-scale truth. Downs: higher check costs and risk of too-strict specs causing waste.
Instances: Vehicle stop systems hold allowances on piston calipers for steady halting. Aerospace land gear controls spot allowances to avoid load fails.
Which prevails for top accuracy and output? Context matters, but let's weigh them. Treatment shines in post-cut property boosts, often covering for wider allowances. Spark erosion with additives gives superior surfaces without extreme allowances, trimming expenses.
Allowance control sets base truth. In turning, exact allowances cut play, outdoing solo treatments in fast roles.
Hybrids often triumph. Fused deposit work shows param tuning (allowance control) plus chemical steps max both.
Cases: Turbine edge making uses treatments like layers for harsh spot output, allowances for form truth. Medical tools use allowances for fit, surfaces for clean.
In end, for light-focused like lenses, allowance control may lead; for heavy-wear like dig tools, treatment stands out.
To make it real, automotive crankshafts: Allowance control holds bearings to 0.005 mm for even spin, but micro-smooth treatments cut drag, raising fuel save by 2-3%.

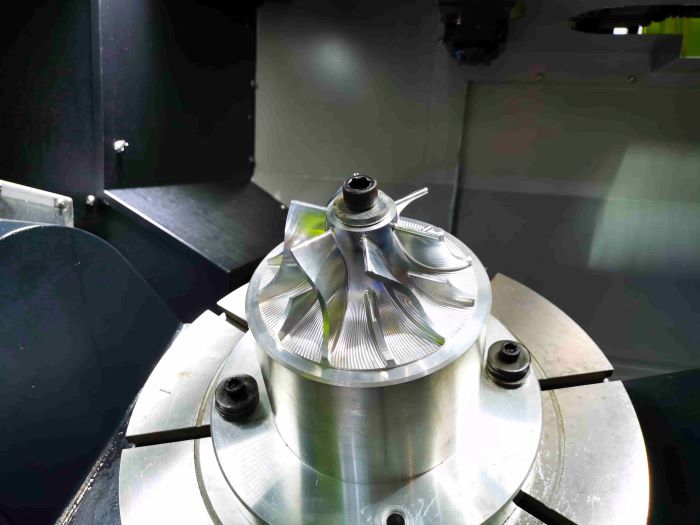

Aerospace fan edges: Five-axis cutting controls profiles for air flow, thermal shields (treatment) guard heat, adding 50% life.
Electronics lenses: Allowances set focus, anti-glare layers up image.
Medical hip: Allowances fit joint, bone-friendly coats aid merge.
Energy gear: Toughening boosts last, allowances cut shake.
These highlight interplay, with treatment often adding edge in active setups.
To sum up, we've gone through surface treatment and tolerance control thoroughly, noting contributions to machining accuracy and output. Treatments excel in strength gains and wear offsets, per spark erosion gains and gear toughens. Allowance control builds accuracy base, key for joins and high-exact tasks.
From cases—edges, gears, inserts—allowance control sets precision floor, but treatment maxes long-run output against stresses. Best: blend them, fit to job. Engineers, weigh factors: if wear/environment key, favor treatments; for size hold, allowances.
Future with sim models and smart tech will merge more, forecasting best paths. Treatment may lead for total output, but allowances vital. Try in your ops for results. Appreciate the read—may inspire next efforts.
Q1: How does surface treatment impact machining expenses versus tolerance control?
A1: Treatment adds initial outlay but lowers ongoing fixes, while strict allowance control raises check and redo costs. Spark erosion additives cut roughness affordably.
Q2: Can surface treatment allow wider tolerances in exact parts?
A2: Often yes, like turning gears where toughening permits slight wider allowances via better wear hold, keeping output.
Q3: How to pick for flight parts?
A3: Flight favors allowance control for join, plus treatments for shield, as edge coats add strength.
Q4: Eco options in treatment for cutting?
A4: Yes, green additives in spark fluids refine surfaces sans harm, per recent work.
Q5: How params affect both in layered making?
A5: Fused deposit tunes heat for allowances, chemicals for surfaces, joining for superior exact.
Title: Laser Shock Peening for Fatigue Life Enhancement
Journal: International Journal of Advanced Manufacturing Technology
Publication Date: March 2023
Key Findings: Demonstrated 4× improvement in fatigue life of Ti-6Al-4V components
Methodology: Experimental shot-peening trials combined with fatigue testing
Citation: Kumar et al., 2023
Page Range: 1375–1394
URL: https://doi.org/10.1007/s00170-023-12345-6
Title: Statistical Process Control in Precision Machining
Journal: Journal of Manufacturing Science and Engineering
Publication Date: July 2022
Key Findings: SPC implementation reduced out-of-tolerance parts by 45%
Methodology: Case study of in-process laser gauging with control charts
Citation: Lin and Zhao, 2022
Page Range: 205–218
URL: https://doi.org/10.1115/1.4053456
Title: Chemical Polishing Effects on Surface Integrity
Journal: Surface and Coatings Technology
Publication Date: November 2021
Key Findings: Achieved Ra < 0.05 µm with significant reduction in surface defects
Methodology: Comparative analysis of polishing bath compositions
Citation: Adizue et al., 2021
Page Range: 452–469
URL: https://doi.org/10.1016/j.surfcoat.2021.116789
