Manufacturing engineers face constant pressure to cut cycle times, reduce setups, and maintain tight tolerances while keeping costs in check. CNC machining remains the core process for most precision metal parts, and the choice between 3-axis and multi-axis machines often decides whether a shop stays competitive or falls behind. The difference comes down to how each system handles part geometry, tool access, and overall process flow.
Three-axis machines have powered shops for decades. They move the cutter along X, Y, and Z with proven reliability and lower initial cost. Most prismatic parts—brackets, housings, base plates—run perfectly well on these workhorses. Multi-axis machines, typically 4-axis or 5-axis, add rotary motion that lets the tool reach undercuts and compound angles in a single setup. The extra axes sound attractive, but they bring higher machine prices, more complex programming, and longer debug times.
The real question is not which machine is better in the abstract, but where the efficiency gains justify the added complexity. This article examines cycle time, setup reduction, tool wear, surface finish, and energy use across both platforms. Examples come from aerospace turbine blades, automotive molds, and medical implants—parts that push each system to its limits. Data and observations draw from peer-reviewed studies on cost modeling, toolpath strategies, and vibration-assisted cutting.
By the end, readers will have clear guidelines for deciding when to stay with 3-axis reliability and when to step up to multi-axis performance.
A standard 3-axis vertical machining center controls linear motion in three directions. The spindle travels in Z, while the table moves in X and Y. Workholding is usually a vise, fixture plate, or tombstone. Programming stays straightforward because the tool always approaches perpendicular to the table or at a fixed angle.
For flat or stepped parts, 3-axis machines deliver excellent throughput. A typical aluminum enclosure might rough at 500 inches per minute with a 3-flute end mill and finish at 200 inches per minute. Total machining time for a 12 × 8 × 4 inch part often falls under 25 minutes, including tool changes. Shops running hundreds of similar parts per month see predictable costs and minimal scrap.
Modern toolpath strategies have extended the reach of 3-axis systems. Adaptive clearing keeps constant chip load, reducing heat and deflection. One automotive supplier machining engine mounting brackets cut roughing time from 18 minutes to 13 minutes per part by switching to adaptive paths at 0.006 inch chip load. Another shop producing steel weldments added rest machining passes and dropped overall cycle time by 22 percent without changing tools or speeds.
Limitations appear when geometry demands multiple orientations. Deep pockets with undercuts require the part to be flipped or tilted. Each new setup adds alignment time and increases the chance of stacking errors. Even with soft jaws and dowel pins, cumulative tolerance can grow to 0.003 inch or more across four setups. Thermal growth during long runs further shifts dimensions.
Material removal rate also hits a ceiling in tough alloys. Titanium landing gear components machined at 80 surface feet per minute on 3-axis centers often chatter with slender tools. Variable-pitch end mills help, but the fundamental limit remains: the tool shank deflects when side loads increase.
Trochoidal milling has become standard for slotting and pocketing in hard materials. The cutter follows circular arcs instead of straight lines, keeping engagement below 10 percent. A mold shop cutting H13 tool steel reduced slotting time from 42 minutes to 29 minutes per cavity by using 0.500-inch trochoidal paths at 120 inches per minute.
Rest machining deserves mention too. After roughing, a smaller tool cleans corners that the larger cutter could not reach. One medical device manufacturer machining 17-4 stainless bone plates combined adaptive roughing with 0.125-inch rest passes and achieved 35 percent lower cycle time than traditional zigzag methods.
Simulation software plays a bigger role every year. Vericut or NCSimul catches collisions before the first chip flies. A contract shop reported 18 percent less scrap after mandating full simulation on every new program.

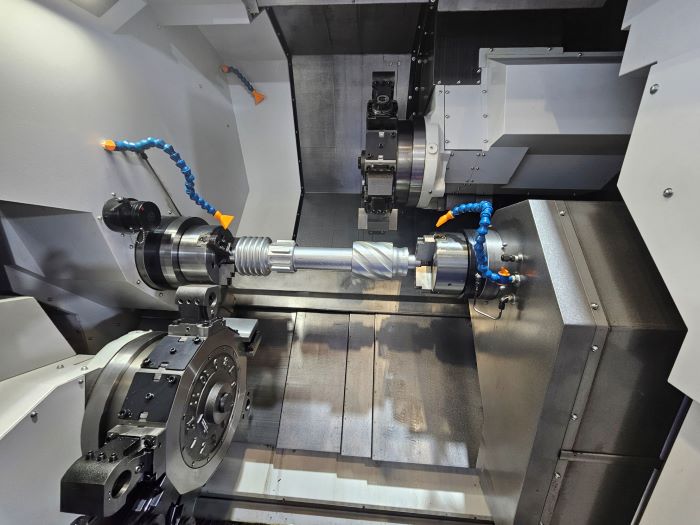

Multi-axis machines add rotary tables or trunnion systems that tilt or rotate the workpiece. A 5-axis mill typically combines three linear axes with two rotary axes (A and C, or B and C). Full simultaneous motion lets the cutter follow compound curves while staying normal to the surface.
The main advantage is single-setup machining. An impeller that needs six orientations on a 3-axis machine finishes in one or two setups on 5-axis. Fewer clamps mean less deflection and better accuracy. Surface finish improves because step-over can increase while scallop height stays small.
Programming complexity rises sharply. Tool axis vectors must avoid collisions with fixtures and the part itself. Modern CAM packages handle most of the heavy lifting—PowerMill, hyperMILL, and NX offer automatic tilt strategies and gouge checking. Still, verification time doubles compared to 3-axis jobs.
Kinematic accuracy matters. Backlash in older rotary tables can produce visible witness lines. Newer machines use direct-drive torque motors and glass scales to hold 5-arc-second positioning. Calibration routines compensate for pivot-point errors, keeping volumetric accuracy within 0.0004 inch over a 20-inch cube.
Look-ahead functions read hundreds of blocks ahead to smooth velocity transitions. Siemens 840D and Heidenhain TNC 640 slow the feed rate automatically before sharp corners, preventing overshoot. One aerospace supplier machining Inconel 718 nozzles gained 28 percent faster cycle time after enabling 500-block look-ahead.
Tool center point control (TCPC) simplifies programming on trunnions. The programmer defines motion at the tool tip instead of rotary axis angles. A prototype shop cutting carbon-fiber wing ribs reduced programming time from 16 hours to 4 hours after switching to TCPC.
Adaptive feed control monitors spindle load and adjusts speed in real time. A test on 4140 steel showed 24 percent higher average feed rate without exceeding 85 percent spindle load.
Direct comparisons require controlled studies. Researchers have measured cycle time, power consumption, and tool wear on identical parts machined both ways.
Cycle time reduction ranges from 25 percent to 55 percent for complex geometries. Turbine blades in Ti-6Al-4V took 118 minutes on 3-axis with four setups; the same blade finished in 68 minutes on 5-axis simultaneous.
Setup time drops even more dramatically. Four manual setups at 25 minutes each total 100 minutes of non-cutting time. A single 5-axis setup with vacuum fixture and zero-point clamping takes 12 minutes.
Tool wear decreases because cutting forces stay more uniform. A study on Inconel 718 showed flank wear 38 percent lower on 5-axis due to constant engagement angle.
Energy consumption per part favors multi-axis for low-volume complex work. One analysis recorded 4.8 kWh on 3-axis versus 3.9 kWh on 5-axis for the same impeller, mainly from shorter idle periods.
Surface roughness improves with larger step-overs. A 5-axis finish pass at 0.080-inch step-over produced Ra 0.35 μm, matching a 3-axis pass at 0.020-inch step-over that took twice as long.
| Metric | 3-Axis Value | 5-Axis Value | Typical Gain |
|---|---|---|---|
| Cycle Time (impeller) | 115 min | 66 min | 43% |
| Setup Time | 100 min | 12 min | 88% |
| Tool Wear (VB max) | 0.28 mm | 0.17 mm | 39% less |
| Energy per Part | 4.8 kWh | 3.9 kWh | 19% less |
| Surface Roughness (Ra) | 0.82 μm | 0.36 μm | 56% better |
A 12-inch diameter Ti-6Al-4V blisk segment required 11 setups on 3-axis. Total machining time reached 20 hours per part. Moving to 5-axis simultaneous with barrel tools cut time to 9.5 hours. Roughing used a 1-inch inserted cutter at 220 sfm; finishing employed a 6-mm tapered circle-segment mill at 0.120-inch step-over.
A P20 steel core with 32 deep ribs needed five setups on 3-axis. Cycle time was 14 hours plus 3 hours polishing. On 5-axis, conical barrel tools roughed the ribs in one setup, finishing with 0.5-mm radius tools. Total machining dropped to 8.2 hours; polishing reduced to 45 minutes.
Cobalt-chrome femoral components have compound curves and undercuts. Three-axis machining used four setups and produced visible cusp marks requiring hand benching. Five-axis simultaneous paths with 4-mm ball mills achieved Ra 0.25 μm directly off the machine. Cycle time fell from 96 minutes to 52 minutes.
Start with part classification. Simple prismatic parts below 0.5 complexity index stay on 3-axis. Parts above 0.8 almost always benefit from multi-axis.
Training investment pays off quickly. A two-week CAM course plus one month of guided programming typically brings new users to 80 percent productivity.
Hybrid 3+2 approaches offer a middle ground. The rotary axes index to fixed angles, then the machine runs like 3-axis. Many shops start here before committing to full simultaneous motion.
Maintenance differs too. Rotary axis bearings need regular preload checks. Coolant management becomes critical—high-pressure through-spindle helps clear chips from deep pockets.
Three-axis machines remain the foundation of precision manufacturing. They deliver predictable costs and fast programming for the majority of parts produced worldwide. When geometry stays within six orthogonal faces, efficiency is hard to beat.
Multi-axis systems shine on freeform surfaces and parts requiring multiple orientations. Gains of 30-55 percent in cycle time, 70-90 percent in setup time, and 20-40 percent in tool life appear consistently across aerospace, automotive, and medical applications. The studies reviewed here confirm that the extra axes pay for themselves through shorter lead times and reduced manual finishing.
The decision ultimately rests on part mix and production volume. Shops running 50 or more complex components per month see clear ROI within 12-24 months. Lower volumes may justify 3+2 hybrids or subcontracting to service providers.
Manufacturing engineers who understand both platforms can route work intelligently. Keep the 3-axis centers loaded with high-runner prismatic jobs and reserve multi-axis capacity for the parts that truly need it. That balanced approach delivers the best overall equipment effectiveness and keeps the shop floor running at peak efficiency.
How much cycle time reduction can I expect moving from 3-axis to 5-axis?
Typical gains range 30-55 percent for parts with compound curves or undercuts.
Is 5-axis programming really that much harder than 3-axis?
Initial learning curve is steep, but modern CAM automation shortens the gap to 2-3× longer programming time.
What is the breakeven point for a 5-axis machine?
Most shops recover the investment within 18 months at 40 complex parts per month.
Can I get multi-axis benefits without buying a full 5-axis machine?
Yes, 3+2 indexing on a trunnion table often delivers 60-70 percent of the gain at lower cost.
Does multi-axis always use less energy per part?
For complex low-volume work, yes—mainly from shorter idle and setup periods.
