● Getting Started with Surface Roughness in CNC Work
● Breaking Down Ra and Its Role in Specs
● What Ra Levels You Typically Get from CNC
● Picking Ra Based on How the Part Works
● Wrapping It Up: Choose Based on Need
● Q&A: Common Questions on CNC Ra Surface Finish
When you run a shop floor or design parts for production, surface finish comes up a lot. Parts come off the machine with certain textures based on how you cut them, and that texture—measured mostly as Ra—ends up affecting everything from how well things seal to how long they last under wear. Ra is just the average height of the ups and downs on the surface, taken over a set length. In micrometers usually, or microinches if you're on the imperial side.
In day-to-day CNC turning or milling, you get Ra values that depend heavily on your feeds, speeds, tool radius, and the material. Standard carbide tools on aluminum or steel often leave around 2 to 4 μm Ra without much effort. Push the parameters right, and you drop lower; run aggressive, and it climbs. But the key is knowing when a finer finish actually helps the part do its job better, and when it's just adding time and cost.
Parts don't fail because of average material strength alone. Often it's the surface where cracks start or where friction builds heat. That's why engineers spend time on these specs. Get it wrong—too rough—and seals leak or bearings wear fast. Too smooth everywhere, and you're paying for cycles you don't need.
Ra stays the standard because it's straightforward to measure and calculate. You run a stylus or optical profiler across the surface, average the absolute deviations, and that's it. Feed rate drives most of the variation in turning—the higher the feed, the taller those theoretical cusps left behind. Speed helps by letting the chip flow cleaner, reducing tearing.
Take mild steel turning: bump feed from 0.15 to 0.4 mm/rev, and Ra can jump from 1.5 μm to over 6 μm easy. Aluminum forgives more, staying under 2 μm even at decent feeds. Stainless fights back with work hardening if speeds aren't high enough.
The math is simple: theoretical Ra in turning approximates f⊃2; / (32 × r), with f as feed and r as nose radius. Bigger radius or lower feed means shallower marks. Shops know this—switch to a 1.2 mm radius insert, and you cut roughness in half at the same feed.

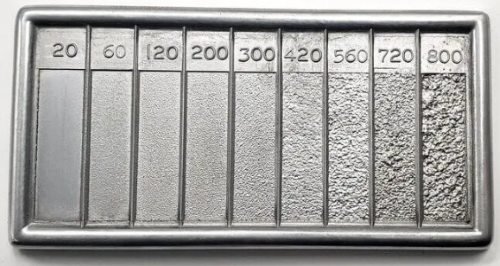

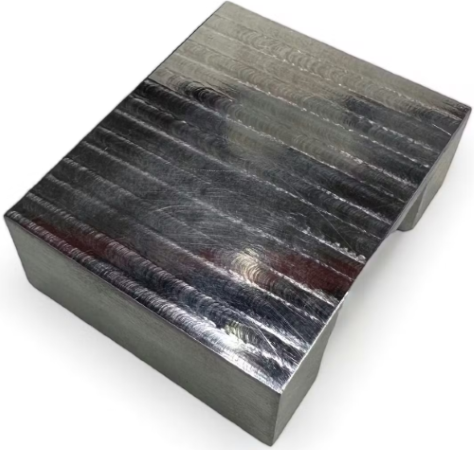

In milling, feed per tooth does the same, leaving scallops between passes.
Higher rpm often cleans up the finish by minimizing built-up edge. Carbon steel experiments show Ra falling as speed rises to an optimum, then sometimes worsening from vibration.
Deeper cuts increase forces, which can chatter and roughen things, but the direct effect is less than feed.
Wiper inserts or larger radii flatten peaks. Coated tools hold edge longer, keeping finish consistent over runs.
Soft stuff like 6061 aluminum polishes easy with sharp tools. Harder steels need flood coolant to avoid smearing. Composites pull fibers, spiking Ra in spots.

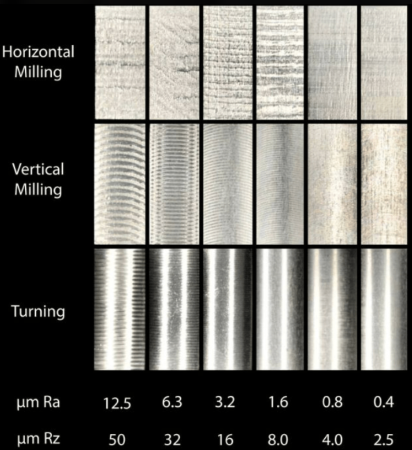

Straight off the machine:
Roughing: 6.3 μm or higher, fast stock removal.
Standard finishing: 1.6 to 3.2 μm, visible lines but smooth feel.
Optimized passes: 0.8 to 1.6 μm, barely visible marks.
With care: down to 0.4 μm, but slower.
Post-ops like grinding or lapping take it finer if needed.
Specs should come from function, not habit. Rougher is cheaper and faster.
Bases, brackets, frames: 3.2 to 6.3 μm does fine. No sliding, no sealing—just hold shape. Machine bases in factories run this way for years.
Bushings, guides, covers: 1.6 to 3.2 μm. Holds oil, low wear.
Pump bodies or low-pressure fittings often land here.
Journals, teeth: 0.8 to 1.6 μm cuts friction, heat, noise. Aerospace shafts go tighter to avoid galling.
Static gaskets: max 1.6 μm.
Dynamic like pistons: 0.4 to 0.8 μm, sometimes plateau finished.
Valve spools: 0.2 to 0.4 μm for no stick-slip.
Handles, instruments: 0.4 μm or better, often hand finished.
Blades, cranks: under 0.8 μm delays initiation.
Paint or anodize likes 1.6 to 3.2 μm for bite. Too smooth, adhesion drops.
One hydraulic shop had pistons leaking at 3.2 μm Ra. Finish pass to 0.8 μm fixed it, but cost rose. They switched to finishing only seal bands—problem solved cheaper.
Transmission gears milled to 1.6 μm cut noise noticeably over rougher ones.
Aero thread fittings at 0.8 μm stopped fatigue cracks seen before.
Implants need 0.4 μm for bone growth and easy sterilization.
Fixtures stay at 6.3 μm—speed matters more.
Halving Ra often doubles time—slower feeds, more passes, sharper tools. From baseline 3.2 μm:
To 1.6 μm: +15-25% typically.
Under 0.8 μm: +40-60%, plus possible manual work.
Specify per face. Rough backs, fine fronts.
Climb mill for shear. Damp tools on extensions. MQL over flood sometimes. Simulate first to predict.
Vibration sensors flag issues early.
Most parts run great at 3.2 μm straight from CNC—cheap, reliable. Drop to 1.6 μm where things slide or seal moderately. Only go finer when tests show wear, leaks, or fatigue demand it.
Link specs to real issues: friction heat, crack starts, leak paths, looks. Prototype, measure wear or seal tests, adjust.
Shops see wins relaxing over-specs and losses skimping critical ones. Right Ra delivers performance without waste. Talk parameters early with machinists—they know the machine's sweet spots. Smart choices here build better assemblies overall.
Q1: What Ra should I start with for prototype aluminum brackets?
A: 3.2 μm as-machined—plenty for fit checks and strength tests, keeps costs down.
Q2: How does going from 3.2 to 0.8 μm affect cycle time usually?
A: Often 30-50% longer, from reduced feeds and extra finish passes.
Q3: Recommended Ra for pneumatic cylinder bores?
A: 0.4-0.8 μm with honing for seal life and low friction.
Q4: Why does stainless steel need different parameters for good Ra?
A: Work hardens fast—higher speeds and sharp tools prevent tearing.
Q5: Is secondary polishing always needed for Ra under 0.8 μm?
A: Not always—optimized CNC with wipers or diamond tools hits it directly on easier materials.
