Surface finish in CNC machining goes far beyond appearance. For components that see cyclic loading or sliding contact, the quality of the machined surface often determines whether a part lasts for years or fails in a matter of weeks. Roughness peaks act as stress concentrators that initiate fatigue cracks, while deep feed marks and subsurface damage accelerate wear. In industries ranging from aerospace to heavy equipment, engineers constantly look for parameter combinations that deliver acceptable cycle times yet produce surfaces capable of withstanding real service conditions.
Over the past decade, research and shop-floor experience have shown that thoughtful selection of spindle speed, feed per tooth, depth of cut, tool geometry, and cutting strategy can reduce average roughness (Ra) from several microns to well below one micron, often raising fatigue strength by 20–40 % and cutting wear rates by similar margins. The goal of this article is to walk through the practical decisions that lead to those gains, using examples from steels, titanium alloys, and nickel-based materials that most shops encounter regularly.

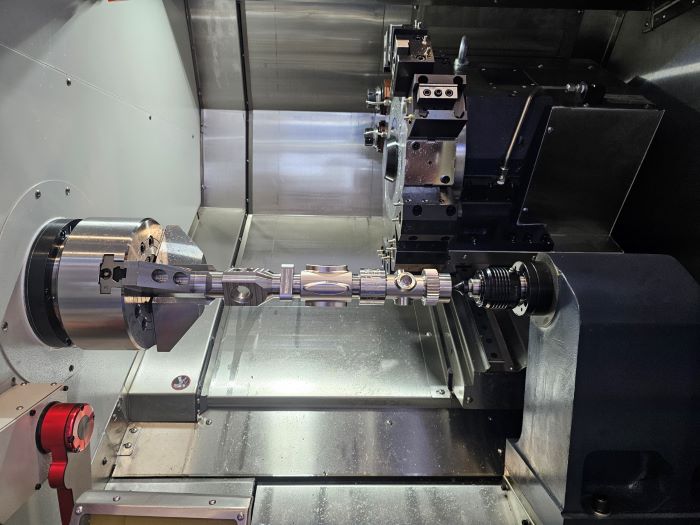

Surface roughness parameters—Ra, Rz, Rq, and others—quantify the height and spacing of irregularities left by the cutting tool. In milling, the theoretical Ra is largely governed by feed per tooth and tool nose radius. In turning, feed rate and nose radius dominate. Lower values of both variables produce smaller cusp height and therefore lower Ra.
Fatigue cracks almost always start at surface defects. A machined surface with Ra = 3.2 µm can reduce the fatigue limit of a high-strength steel by 25–30 % compared to a polished reference. The same surface, when sliding against a seal or another metal, experiences higher local contact pressure, leading to rapid adhesive wear or surface fatigue (pitting).
Multiple plant trials on transmission shafts have confirmed that dropping Ra from 2.5 µm to 0.8 µm extends time-to-pitting by a factor of three under the same torque and lubrication conditions. The mechanism is straightforward: smoother surfaces distribute Hertzian contact stress more evenly and retain oil films better.
Higher spindle speeds generally improve finish by reducing built-up edge and vibration amplitude, provided chip load remains stable. In aluminum 6061 face milling, raising surface speed from 300 m/min to 600 m/min routinely cuts Ra in half. In hardened AISI 4340 (55 HRC), speeds around 140–180 m/min with CBN inserts produce Ra below 0.6 µm and avoid the white-layer formation that kills fatigue performance.
Feed per tooth is the single biggest lever for roughness in milling. Halving feed from 0.15 mm/tooth to 0.075 mm/tooth in a 12 mm four-flute end mill drops theoretical Ra from about 2.8 µm to 0.7 µm. Real-world tests on 4140 crankshafts showed that this change alone raised rotating-bending fatigue limit from 520 MPa to 680 MPa.
Shallow depths (0.2–0.5 mm) reduce cutting forces and tool deflection, which directly lowers chatter marks and waviness. In thin-wall aerospace brackets machined from Ti-6Al-4V, limiting axial depth to 0.3 mm while using high-speed trochoidal paths improved Ra from 2.4 µm to 0.9 µm and increased low-cycle fatigue life by 35 %.
Larger nose radius smooths the surface but increases radial forces. A common compromise in finish passes is to use inserts with 0.8–1.2 mm radius for steels and 0.4 mm radius for aluminum. Wiper flats or variable-helix end mills further suppress vibration and leave mirror-like finishes on mold steels.
Conventional zigzag paths often leave visible cusp lines. Switching to constant-engagement toolpaths (adaptive clearing or spiral finishing) with 60–70 % stepover consistently yields 30–40 % lower Ra at the same feed rate. Many CAM packages now calculate the exact stepover needed to keep cusp height below a target value.
High-strength steels (4340, 300M) respond well to moderate speeds (120–180 m/min) and low feeds (0.05–0.08 mm/tooth) with CBN or coated carbide. Avoid excessive heat that forms brittle rehardened layers.
Titanium alloys require sharp positive-rake tools, heavy coolant, and feeds below 0.1 mm/tooth to prevent work-hardening and micro-chipping that degrade fatigue strength.
Nickel alloys (Inconel 718) benefit from ceramic or whisker-reinforced tools at 200–300 m/min with light finishing passes (0.1–0.2 mm depth, 0.05 mm/rev feed) to keep compressive residual stress and Ra under 0.8 µm.
Automotive connecting rods machined from forged 4340 initially showed Ra ≈ 2.2 µm after roughing and semi-finishing. A dedicated finishing operation at 160 m/min, 0.06 mm/rev, 0.25 mm depth with a wiper insert brought Ra to 0.65 µm. Fatigue tests at 650 MPa alternating stress went from 280 000 cycles to over 1.2 million cycles.
Turbine disk fir-tree slots in Inconel 718 were broached then finished with a single-point CNC operation. Original parameters gave Ra = 3.1 µm and frequent cracking in spin-pit tests. Changing to round ceramic inserts, 220 m/min, 0.04 mm/rev reduced Ra to 0.7 µm and eliminated cracks up to 10 000 cycles.
Hydraulic cylinder rods in 42CrMo4 were hard-turned instead of ground. Optimized parameters (Vc = 180 m/min, f = 0.08 mm/rev, ap = 0.15 mm) achieved Ra = 0.4 µm consistently, matching ground quality while cutting processing time by 60 % and extending seal life from 8000 to 24 000 hours.
Improving surface finish in CNC machining to extend fatigue life and wear resistance is not about chasing the lowest possible Ra at any cost. It is about finding the sweet spot where spindle speed, feed rate, depth of cut, tool selection, and toolpath strategy work together within acceptable cycle times. Experience and published work both confirm that reductions in roughness from 3–4 µm to below 1 µm routinely deliver 25–50 % gains in fatigue strength and similar reductions in wear rate across steels, titanium, and nickel alloys.
Start by measuring current roughness and residual stress on a few representative parts, then adjust one variable at a time—usually feed per tooth first—while monitoring tool wear and cycle time. Small, deliberate changes often yield large returns in component durability and overall cost of ownership. The next time a fatigue or wear failure shows up, look first at the surface that came off the machine; the fix is frequently hiding in the parameter list.
