Complex multi-feature components are now standard in aerospace, medical, automotive, and mold-making industries. Parts such as turbine blisks, orthopedic implants, transmission cases, and injection mold cores combine deep pockets, thin walls, curved surfaces, undercuts, and closely spaced features. These geometries demand multi-axis tool paths that are difficult to visualize by eye and even harder to prove safe before cutting metal.
A single undetected collision can destroy a workpiece worth thousands of dollars, break an expensive tool, damage the spindle, or force an unscheduled machine shutdown. Industry surveys consistently show that collisions remain one of the top causes of unplanned downtime in CNC shops. As machines become faster and more capable, the risk does not decrease—it shifts from obvious crashes to subtle interferences that only appear under specific axis rotations or rapid moves.
Tool path verification has therefore moved from optional to mandatory. Modern verification systems do far more than color-code a backplot. They simulate material removal, model the complete tool assembly (cutter, holder, collet, spindle nose), include the actual machine kinematics, and check every programmed position against fixtures and clamps. When applied correctly, verification eliminates nearly all physical try-out cuts and gives programmers confidence to push feeds, speeds, and stepovers to the limit.
This article examines the practical side of tool path verification for complex parts. The focus stays on methods that have been proven in production environments, supported by published research, and illustrated with concrete examples from daily shop work.
Collisions fall into two broad categories: local and global.
Local collisions affect only the workpiece. Gouging occurs when the cutter removes material beyond the intended surface. Rear gouging is common in 5-axis finishing when the tool tilts and the trailing edge digs into a previously machined wall. Excessive stock removal in narrow channels or fillet areas also belongs here.
Global collisions involve anything outside the workpiece: tool holder against a boss, spindle against a fixture, rotary table against a clamp, or even the tool shank hitting an adjacent feature during a rapid traverse. On parts with high feature density—think of a valve body with dozens of ports and mounting pads—global collisions dominate the error count.

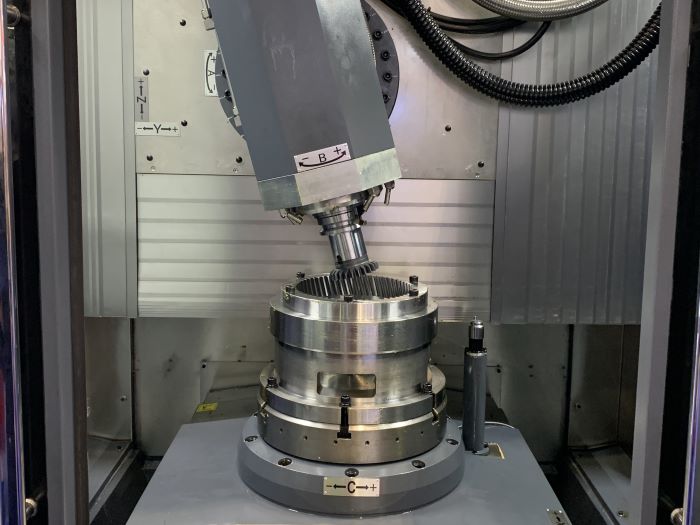

Both types become more frequent as axis count increases. A 3-axis path is relatively easy to inspect visually. Add a rotary table (4-axis) or a trunnion (5-axis simultaneous) and the number of possible interference scenarios grows exponentially.
Several proven techniques form the backbone of modern collision avoidance.
Bounding volume hierarchies (BVH) remain the fastest coarse check. The tool assembly and part are enclosed in simple shapes—spheres, cylinders, or oriented bounding boxes. Intersection tests between these volumes are orders of magnitude quicker than mesh-to-mesh checks. Only when coarse volumes overlap does the system perform a precise calculation. This approach scales well to parts with hundreds of features.
Swept-volume analysis calculates the exact space occupied by the moving tool assembly. The method generates an envelope for every linear or rotary segment and intersects that envelope with the in-process stock and fixtures. Swept volumes catch holder collisions that bounding boxes sometimes miss, especially during rapid tilted moves.
Accessibility cones and configuration-space (C-space) mapping are essential for 5-axis work. For each point on the surface, the system determines the range of safe tool axis vectors. Paths that stay inside the visible cone avoid both gouging and holder collisions. C-space maps extend the idea to the entire machine joint space, revealing axis limits before posting code.
Voxel and dexel representations provide another robust option. The workspace is divided into small cubic or prismatic cells. As the tool moves, occupied cells are marked. Any attempt to occupy a cell already containing fixture or stock triggers an immediate alert. Voxel methods excel at rapid stock updates and are heavily used in standalone verification packages.
Most CAM systems now include basic verification, but production shops treating complex parts seriously run dedicated verification software.
Vericut from CGTech remains the industry standard for machine-specific simulation. It reads native G-code, applies the exact kinematic model of the target machine (including head-head, table-table, or hybrid configurations), and models tool wear, coolant, and subsystem collisions. Many aerospace contractors mandate Vericut reports before first-part release.
NCSimul (Hexagon) and ModuleWorks-based solutions focus on optimization loops: detect collision → auto-correct tilt or retract → re-simulate. These packages are common in European mold and automotive environments.
For smaller shops, CAMPlete TruePath and Autodesk PowerMill Verification offer strong 5-axis checking at lower cost. Open-source alternatives such as CAMotics or the Path Workbench in FreeCAD provide surprisingly capable voxel simulation for budget-conscious users.
Successful verification follows a repeatable sequence.
Export the complete tool assembly from the tool library (cutter + holder + extensions).
Import fixture and clamp models into the verifier—never rely on simplified blocks.
Load the exact machine kinematic definition file provided by the machine builder.
Run a coarse BVH check first to catch obvious errors in minutes.
Switch to full swept-volume or voxel simulation with a safety margin (typically 0.2–0.5 mm).
Review every flagged event in slow motion; most collisions cluster around lead-in/lead-out moves or rapid tilts.
Correct the path in CAM (add tilt limits, change retract strategy, or reorder operations) and re-post.
Store the verified program and simulation report in the job folder—traceability is increasingly required by quality systems.
A European mold shop machines P20 core inserts with more than 40 deep ribs and lifter pockets. Initial 5-axis finishing paths repeatedly showed holder collisions against adjacent ribs. Switching to accessibility-cone-limited swarf paths eliminated all interferences and reduced cycle time by 18%.
An American aerospace supplier produces Inconel 718 blisks on a 5-axis gantry. Swept-volume verification revealed that the 200 mm tool assembly collided with the hub during simultaneous B- and C-axis moves. The programmer shortened the holder by one station and added a 3-degree yaw offset—problem solved without sacrificing reach.
A medical contract manufacturer cuts titanium tibial trays with multiple undercuts. Voxel simulation caught a rapid Z-retract that clipped a previously machined dovetail feature. Adding a short arc lead-out instead of a straight plunge eliminated the collision and became standard in their macro library.
Verify every new program at 100 %—never assume “it's just a small change.”
Model fixtures exactly; a 5 mm misalignment in simulation is enough to hide a real crash.
Keep a library of proven tool assemblies; untested holders are the number-one collision source.
Use color-coded stock models to spot near-misses that do not trigger full alerts.
Run an air cut with a plastic probe or laser pointer after verification if the part value exceeds $10 000.
Log every collision event and root cause; patterns emerge quickly (wrong holder, missing retract, etc.).
Tool path verification has evolved from a nice-to-have graphic display into a core process that directly affects profitability and delivery schedules. For anyone machining complex multi-feature components, skipping proper verification is no longer an option. The techniques described—bounding volumes, swept envelopes, accessibility cones, and full kinematic simulation—are mature, widely available, and proven to eliminate collisions in production environments.
Shops that invest time in building accurate digital twins of machines, fixtures, and tool assemblies see immediate returns: zero crashed spindles, reduced scrap, shorter lead times, and the ability to take on more challenging work with confidence. As part geometries continue to grow in complexity and material costs rise, systematic verification will separate the shops that thrive from those that merely survive.
Q1: How long does full verification typically add to programming time?
A: For a complex 5-axis part, expect 30–90 minutes extra per program the first time. Once fixtures and tool assemblies are saved, subsequent jobs drop to 10–20 minutes.
Q2: Is in-CAM verification enough for 5-axis work?
A: Rarely. Most CAM built-in checks ignore holder and machine collisions. Dedicated verifiers are strongly recommended for production.
Q3: What is the most common collision people still miss?
A: Rapid moves between features with the tool tilted—especially when the programmer forgets to add a safe retract plane in tilted orientation.
Q4: Can verification replace prove-out cuts completely?
A: In most regulated industries, a first-part prove-out is still required, but verified programs almost always pass on the first try, reducing prove-out to a formality.
Q5: How do I convince management to buy dedicated verification software?
A: Document one or two real crashes (cost of billet + tool + downtime) and compare to the annual license cost. The ROI is usually measured in weeks.
