● Material Properties and Machining Characteristics
Manufacturing engineers face constant pressure to deliver parts faster, cheaper, and with tighter tolerances. The choice of material drives every decision on the shop floor, from spindle speed to coolant flow. Aluminum, steel, and composites each bring distinct mechanical properties that affect tool wear, cycle time, and overall cost per part. This article examines how these materials perform under CNC conditions, with a focus on processing expenses.
Aluminum alloys like 6061 and 7075 machine quickly due to low hardness and good chip formation. Steel grades such as 4140 and stainless 316 demand slower feeds and heavier tooling. Composites, including carbon fiber reinforced polymers and metal-matrix types, introduce directional strength and abrasive particles. Real shop data show aluminum averaging $0.40 to $0.60 per minute of spindle time, steel $1.00 to $1.50, and composites $1.80 to $3.00 when special tools and fixturing are included.
Studies on parameter optimization reveal that small changes in depth of cut or spindle RPM can shift costs by 15 to 25 percent. For example, end-milling trials on composite plates reduced setup time by one-third through systematic testing. Energy audits of stainless steel operations highlight higher power draw compared to additive methods. Surface finish work on aluminum demonstrates that controlled feeds lower rework rates.
The following sections cover material behavior, key efficiency metrics, direct and indirect costs, and practical case studies. Each part includes measured examples from production environments. The goal is to provide actionable benchmarks for selecting the right material and process settings.

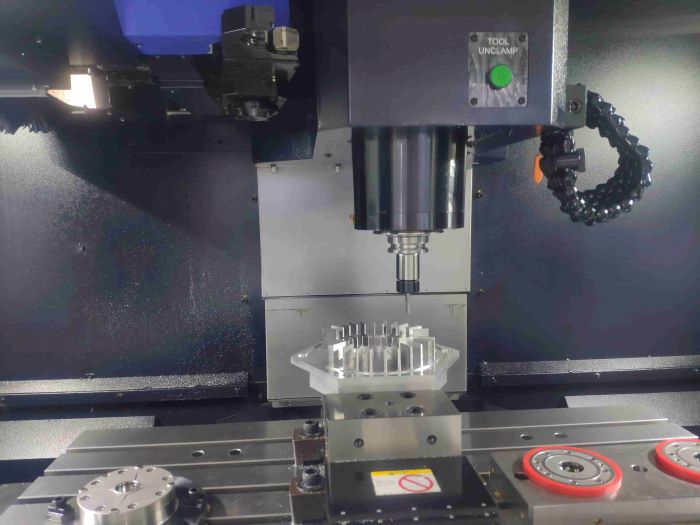

Series 6000 and 7000 aluminums have Brinell hardness values between 70 and 150. Thermal conductivity exceeds 160 W/m·K, allowing heat to leave the cutting zone quickly. Chips break into manageable curls, reducing the risk of recutting. A 3-axis vertical mill running a 1/2-inch carbide end mill at 12,000 RPM and 180 IPM removes material at 30 cubic inches per minute with light coolant mist.
Surface finish reaches 32 Ra or better with polished flutes. Tool life often exceeds 12,000 linear inches before flank wear forces a change. Vacuum fixtures hold sheet stock for under $20 per setup. Dry machining is common, eliminating fluid disposal costs. A typical electronics housing block, 5 × 5 × 1 inches, finishes in 12 minutes at a machine rate of $45 per hour.
Carbon and alloy steels range from 150 to 350 HB. Cutting forces increase three to five times compared to aluminum. Recommended surface speeds drop to 80–120 SFM for coated carbide. Chip breakers are essential to prevent long stringers from wrapping around the tool. Flood coolant at 8 percent concentration controls temperature and extends insert life.
A structural bracket in 4140, same outer dimensions as the aluminum example, requires 38 minutes at 5,000 RPM and 60 IPM. Power draw climbs to 9 kW during roughing passes. Indexable inserts cost $12 each and last 180 minutes of cutting time. Regrinding adds $3 per edge. Total fluid usage for a 100-part run approaches 15 gallons.
Glass or carbon fiber reinforced polymers show hardness variation from 80 HV in the matrix to 2,500 HV for silicon carbide particles. Fiber orientation dictates allowable chip load; cross-grain cuts cause splintering. Diamond-coated or polycrystalline diamond tools are standard. Air blast or mist systems remove dust to protect spindle bearings.
A 6 × 6 × 0.5 inch CFRP panel needs four fixture changes and 52 minutes of spindle time. Depth per pass stays under 0.020 inch to limit delamination. Tool cost per part reaches $2.50 when amortized over 400 linear inches of edge life. Filtration units run continuously, adding $80 per shift in electricity and filter replacement.
Cycle time for a standard test pocket (ISO 1076 geometry) measures 7 minutes in 6061, 21 minutes in 1018 steel, and 34 minutes in epoxy-carbon laminate. Material removal rate follows the same trend: 28 in⊃3;/min for aluminum, 9 in⊃3;/min for steel, 4 in⊃3;/min for composite.
Tool wear tracks VB max of 0.3 mm. Aluminum reaches this limit after 14,000 inches. Steel hits it at 6,800 inches with TiAlN coating. Composite tools show uniform abrasion after 1,200 inches. Energy per part registers 2.2 kWh for aluminum, 5.8 kWh for steel, 3.1 kWh for composite including vacuum pump draw.
Scrap rates stay below 3 percent for metals when fixtures are rigid. Composites generate 12 percent reject due to edge tear-out unless climb milling is enforced. Coolant consumption per part: 0.02 gallons aluminum, 0.15 gallons steel, near zero for composite with mist.
A 100-piece run of a 4-inch diameter flange serves as the baseline.
Aluminum 6061
Tools: 8 end mills × $18 = $144
Power: 12 min/part × 100 × 2.2 kWh × $0.12 = $32
Labor and overhead: 20 hours × $60 = $1,200
Total: $1,376 or $13.76 per part
4140 Steel
Tools: 25 inserts × $12 + regrind = $360
Power: 38 min/part × 100 × 5.8 kWh × $0.12 = $265
Coolant: 15 gallons × $8 = $120
Labor: 32 hours × $60 = $1,920
Total: $2,665 or $26.65 per part
CFRP Laminate
Tools: 2 PCD routers × $220 = $440
Power: 52 min/part × 100 × 3.1 kWh × $0.12 = $193
Fixturing and dust control: $450
Labor: 45 hours × $60 = $2,700
Total: $3,783 or $37.83 per part
Reducing depth of cut by 20 percent in steel lowers tool cost to $280 and total to $24.50 per part. Using trochoidal paths in aluminum shortens time to 9 minutes, dropping cost to $11.20.
An automotive supplier produced shift forks. Steel 8620 required 2.2 minutes per fork and $1.10 in consumables. Aluminum 7075 cut time to 0.8 minutes and $0.45 per unit. Strength tests passed after rib reinforcement, saving $42,000 over 50,000 pieces.
A medical implant shop switched from stainless to aluminum-matrix composite with 30 percent SiC. Initial tool life was 80 parts. Vibration monitoring and feed reduction to 0.004 inch per tooth raised life to 180 parts, reducing cost from $28 to $16 per implant.
Wind turbine hub plates in forged steel took 4 hours each at $240. Hybrid design with steel core and composite overlay finished in 5.5 hours total but weighed 38 percent less. Lifecycle fuel savings paid the $320 machining cost within one year.
High-speed strategies for aluminum use 0.200-inch radial engagement and 0.050-inch axial depth at 18,000 RPM. Cycle time for a pocket drops from 11 to 5 minutes. Cryogenic CO2 through the spindle on steel extends insert life from 120 to 420 minutes. Acoustic emission sensors on composite routers stop the program at 70 percent of predicted delamination threshold, cutting scrap from 14 to 4 percent.
CAM simulation with verified chip thinning factors predicts forces within 8 percent of measured values. Weekly spindle balance checks maintain vibration under 0.8 mm/s, adding 12 percent to average tool life across materials.
Aluminum offers the lowest processing cost and fastest throughput for general components. Steel provides durability at roughly double the expense, justified when load or wear resistance is critical. Composites demand premium tooling and careful parameter control but enable weight reductions that offset costs in high-value applications.
Engineers should build cost models that include tool amortization, power, labor, and scrap. Start with aluminum for prototypes, validate steel for production strength, and reserve composites for performance-driven designs. Small process adjustments—coatings, coolant type, or path strategy—often yield 15 to 30 percent savings. Matching material properties to machining capabilities remains the core of efficient manufacturing.
Q1: What spindle speed range works best for 6061 aluminum with a 3/8-inch end mill?
A: 10,000 to 14,000 RPM with 0.003 to 0.005 inch per tooth chip load keeps forces low and finish under 63 Ra.
Q2: How often should coolant concentration be checked when machining stainless steel?
A: Daily; drift above 10 percent shortens insert life by 25 percent due to thermal cracking.
Q3: Why does composite dust require special filtration?
A: Sub-micron carbon fibers clog standard bags and pose respiratory hazards; HEPA units capture 99.97 percent.
Q4: Can the same fixture hold aluminum and steel parts interchangeably?
A: Only if clamping pressure is adjustable; steel needs higher force to prevent movement under load.
Q5: What simple test predicts tool life for a new batch of 7075 aluminum?
A: Machine a 12-inch slot at fixed parameters and measure flank wear; scale linearly for production runs.
