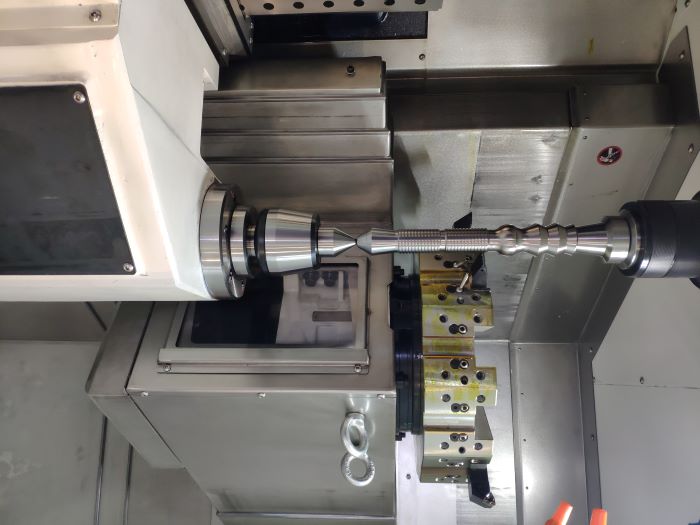

In CNC machining, the fixture holds the workpiece steady while the tool removes material. For low-volume jobs, a simple vise often works well enough. In high-volume runs, however, the same fixture must position thousands of parts within a few microns, cycle after cycle, without adjustment or drift. A fixture that meets this demand requires careful attention to locating surfaces, clamping forces, material selection, and wear resistance. The goal is to eliminate variables that cause position errors, so every part leaves the machine in the same exact relationship to the cutter.
Engineers who design fixtures for high-volume work face three main challenges: maintaining location accuracy under repeated loading, controlling thermal growth, and minimizing wear on contact surfaces. Each challenge influences the others. For example, a clamp that applies uneven pressure can distort a thin wall, and the resulting heat can shift the part out of position. The design process therefore combines mechanical principles with practical shop-floor experience.
This article covers the core elements of fixture design, from basic locating rules to advanced features used in automated lines. Real examples from automotive, aerospace, and electronics production illustrate how specific choices affect repeatability. The discussion draws on published studies that tested fixture performance under production conditions. By the end, readers will have a clear checklist for evaluating or improving their own fixtures.
A fixture differs from a general-purpose clamp because it is built for one part family and one sequence of operations. It must satisfy four requirements: locate the part, support it against cutting forces, allow chip evacuation, and permit fast loading and unloading. In high-volume work, the last point becomes critical—every second saved per cycle adds up over thousands of parts.
The 3-2-1 rule remains the standard starting point. Three supports define the primary plane, two define the secondary axis, and one defines the tertiary axis. This arrangement constrains all six degrees of freedom without redundancy. Redundant constraints create stress and reduce repeatability.
For a rectangular aluminum housing, the primary plane might rest on three hardened pads spaced to maximize stability. The secondary axis could use two cylindrical pins pressed into the fixture base, engaging slotted holes in the part. The tertiary constraint is a single round pin in a close-fit hole. When the operator drops the part onto the pads and pushes it against the pins, the position is fixed. Measurements taken on a coordinate measuring machine (CMM) after 100 cycles typically show less than 0.005 mm deviation if the pads and pins are ground flat and parallel.
Irregular shapes require creative locating. Turbine blade roots, for instance, often use a curved nest that matches the root profile. Three adjustable screws on the nest contact the concave side, while two fixed pads touch the convex side. A single tangential pin prevents rotation. This setup follows 3-2-1 logic but adapts it to the geometry. Tests on similar blade fixtures report positional repeatability of 0.008 mm over 500 cycles.
Clamping must hold the part without moving it or deforming it. Edge clamps, swing clamps, and toe clamps are common. Force should act close to the supporting surfaces to minimize bending moments. Hydraulic or pneumatic actuators provide consistent pressure and fast actuation.
In one brake-caliper fixture, four hydraulic edge clamps apply 600 N each at the corners of the casting. A pressure regulator maintains force within ±5%. Strain gauges bonded to prototype parts during trials confirmed maximum distortion of 0.012 mm, well below the 0.050 mm tolerance. After 2,000 cycles, clamp wear was negligible because the contact faces were hardened to 58 HRC.
For thin-walled electronics enclosures, vacuum clamping distributes force evenly. A fixture with a perforated aluminum plate and a peripheral gasket holds the part flat. Vacuum level is monitored; if it drops below 0.6 bar, the machine pauses. This system kept flatness within 0.025 mm across 10,000 parts.
Repeatability depends on controlling variables that change during a production run. Temperature, vibration, and wear are the primary culprits.
Cutting generates heat, and fixtures expand. Steel expands at 11–12 ppm/°C, aluminum at 23 ppm/°C. A 50 mm aluminum fixture that warms 10°C grows 0.0115 mm—enough to push a 0.010 mm tolerance out of spec.
Low-expansion materials help. Invar (1.2 ppm/°C) is expensive but effective for precision bases. One gear-housing fixture used an Invar plate bolted to an aluminum frame. Thermocouples logged a 7°C rise during a four-hour run; the critical dimension shifted only 0.002 mm.
Coolant channels machined into the fixture body remove heat directly. In a titanium implant fixture, coolant flowed through internal passages, keeping surface temperature within 3°C of ambient. Positional drift stayed below 0.004 mm after 1,000 cycles.
High spindle speeds excite fixture resonances. A natural frequency near the tooth-passing frequency amplifies chatter. Damping materials absorb energy. One milling fixture for smartphone frames incorporated 3 mm viscoelastic pads between the base and the machine table. Accelerometer tests showed a 65% reduction in amplitude at 8,000 RPM. Surface finish improved from Ra 1.4 µm to Ra 0.7 µm.
Tuned mass dampers offer another solution. A small steel block bolted to the fixture and tuned to the problem frequency reduced vibration by 50% in a slot-milling operation.
Locating pins and pads see thousands of insertions. Hardened steel (60 HRC) with a TiN coating lasts five times longer than uncoated 4140. In a valve-body line, coated pins maintained 0.002 mm repeatability after 25,000 cycles. Uncoated pins required replacement after 5,000 cycles.
Replaceable wear plates simplify maintenance. A modular fixture for engine blocks uses carbide inserts at high-contact points. Swapping a worn insert takes minutes and restores original accuracy.
Production volumes above 500 parts per shift demand features that reduce setup time and operator error.
Zero-point clamping plates allow rapid fixture changes. Four pull-down studs locate the fixture to 0.002 mm repeatability. A pallet system for small medical parts switches between roughing and finishing fixtures in 45 seconds. The same base plate serves ten part variants by changing locator modules.
Robotic loaders need clear access and foolproof part presentation. Guide rails and tapered lead-ins ensure the gripper seats the part correctly every time. Vision systems verify orientation before clamping. In an electronics line, this reduced loading errors from 1.2% to 0.1%.
A robust fixture costs more upfront but saves money in scrap and downtime. A run-out inspection fixture for gears paid for itself in four months by eliminating manual checks and reducing scrap from 3% to 0.5%.
The fixture uses a steel base with three ground pads, two diamond-coated pins, and one spring-loaded pin. Four hydraulic edge clamps sequence in pairs to avoid distortion. Coolant nozzles flush chips from the locating area. Over 50,000 parts, hole-position tolerance held at ±0.007 mm.
A cast aluminum nest matches the blade root. Six adjustable screws contact the concave surface; two fixed pads contact the convex side. Vacuum assists the mechanical clamps. Damping pads under the nest reduced vibration. Repeatability reached 0.004 mm after 800 cycles.
A palletized fixture with zero-point studs holds interchangeable locator blocks. Pneumatic swing clamps actuate in 1.2 seconds. RFID tags track cycle count and flag maintenance at 15,000 cycles. Ten part variants run on the same machine with changeovers under two minutes.
Topology optimization removes unnecessary mass while preserving stiffness. One optimized fixture weighed 30% less yet deflected 15% less under load. Embedded sensors monitor clamp force and vibration in real time, triggering automatic compensation.
Fixture design for high-volume CNC machining is a balance of precision, durability, and speed. Start with the 3-2-1 locating principle, choose materials to control thermal growth, and add damping to suppress vibration. Modular systems and automation features keep changeovers fast and loading consistent. Real production examples prove that upfront investment in robust design pays dividends in quality and throughput. Review your current fixtures against these guidelines, measure actual repeatability on the machine, and iterate. Small improvements often yield large gains when multiplied across thousands of parts.
