Effective chip management is a cornerstone of successful machining operations. For manufacturing engineers and machinists, chips are more than just waste—they can disrupt workflows, damage tools, and compromise part quality. Whether you're milling titanium for aerospace components or turning stainless steel for medical devices, poor chip control can lead to costly downtime and scrapped parts. Research indicates that chip-related issues contribute to 20-30% of unplanned stoppages in high-volume production environments. This guide dives into practical strategies to optimize chip evacuation and protect part surfaces, blending shop-floor insights with findings from peer-reviewed studies.
We'll cover the mechanics of chip formation, tackle common evacuation challenges, and explore solutions like tool design, coolant systems, and parameter tuning. Real-world examples—like a shop that saved a $50,000 batch by adjusting coolant flow—ground the discussion in practical reality. The goal is to equip you with actionable techniques to keep your operations smooth and your parts pristine, no matter the material or machine setup.
To manage chips effectively, you first need to understand how they form. Chip formation is the result of material deformation under a cutting tool, shaped by the interplay of workpiece properties, tool geometry, and machining parameters.
Chips vary widely depending on the material and setup. Discontinuous chips, common in brittle materials like cast iron, break into small, manageable fragments that are easy to clear. Continuous chips, typical in ductile materials like aluminum or mild steel, form long, ribbon-like strands that can tangle around tools or parts. Semi-continuous chips, with irregular breaks, often appear in alloys with mixed microstructures. Stringy chips, notorious in stainless steels, are particularly troublesome, wrapping tightly and resisting evacuation.
For example, a Midwestern shop machining 4140 steel for automotive gears struggled with continuous chips that clogged their lathe. By switching to a chip-breaker insert with a sharper rake angle, they reduced chip length by 50%, cutting downtime significantly. Another case involved a pump manufacturer turning brass; stringy chips scratched surfaces until a variable feed rate broke them into shorter segments.
Material properties drive these differences. Ductile metals stretch into long chips under high cutting speeds, while brittle ones fracture readily. Hardness, inclusions, and even prior heat treatments influence chip shape, making material knowledge critical.
Cutting parameters—speed, feed, and depth of cut—are primary influencers. High speeds generate heat, softening materials and promoting continuous chips. Higher feeds can produce thicker, more breakable chips, while deeper cuts increase chip volume, demanding robust evacuation. Tool geometry, like rake angle or edge radius, also plays a role: positive rakes shear smoothly for continuous chips, while negative rakes encourage breaks in tougher alloys.
Coolant affects chip behavior too. Flood coolant reduces friction, tightening chip curls, while dry machining can cause chips to stick, forming built-up edges. In a study on aluminum milling, high-pressure coolant reduced chip curl radius by 25%, aiding evacuation.
One aerospace shop turning Inconel 718 found that increasing speed from 150 to 250 SFM turned manageable curls into long whips that scored parts. They countered with a serrated insert, breaking chips consistently. These examples show how small tweaks in setup can shift chip dynamics dramatically.
Chip evacuation failures can grind operations to a halt. When chips linger, they get recut, clogging tools and spiking wear rates. In deep-hole drilling or pocket milling, poor evacuation can increase torque loads by 40%, risking tool failure or part damage.
One frequent issue is insufficient chip clearance in tool paths. Traditional milling strategies, like linear pocketing, trap chips in tight corners, especially in soft materials like aluminum. A California electronics firm milling 6061-T6 housings faced this when chips piled up in 0.75-inch pockets, stalling their spindle. Switching to a spiral path cleared the issue.
Vibration is another culprit. Unbalanced tools or worn spindles scatter chips unpredictably, embedding them in surfaces. A German auto supplier saw titanium chips mar cylinder bores due to spindle wear, adding $8,000 per shift in rework costs. Heat buildup compounds problems—chips trap heat, softening tools or warping parts. In dry magnesium milling, chips occasionally ignited, highlighting evacuation's safety stakes.
Lingering chips accelerate tool wear through abrasion, doubling edge rounding rates in some turning ops. Surface damage is equally costly. Chip drag can push surface roughness (Ra) from 20 to 120 microinches, failing specs for precision components. A valve maker machining 316L stainless reported 10% rejection rates from chip scratches until air blasts cleared flutes.
Quantifying the impact: A single evacuation failure in a 500-part run can add hours of manual cleanup, inflating costs by 5-8%. These challenges demand proactive strategies to keep chips moving.
Effective chip evacuation requires a coordinated approach, integrating tool design, coolant systems, and machining parameters to ensure chips exit cleanly.
Tool geometry is a game-changer. Variable helix end mills, with uneven flute spacing, disrupt vibration and guide chips outward, reducing packing by 35%. Parabolic drills excel in deep holes, channeling chips efficiently. An oilfield shop drilling 4140 steel cut cycle times by 40% with parabolic designs.
Surface texturing on tools, like micro-grooves, lowers friction, preventing chip adhesion. In titanium drilling, textured tools reduced evacuation forces by 20%. Coatings like AlCrN or DLC further repel chips, especially in sticky materials like copper. A mold maker using DLC-coated tools reported 30% longer life in brass milling.
Real-world case: A Swiss precision shop machining hardened dies adopted chip-breaker inserts with optimized groove widths. Chips segmented at feeds as low as 0.003 IPR, clearing flutes without secondary breaks.

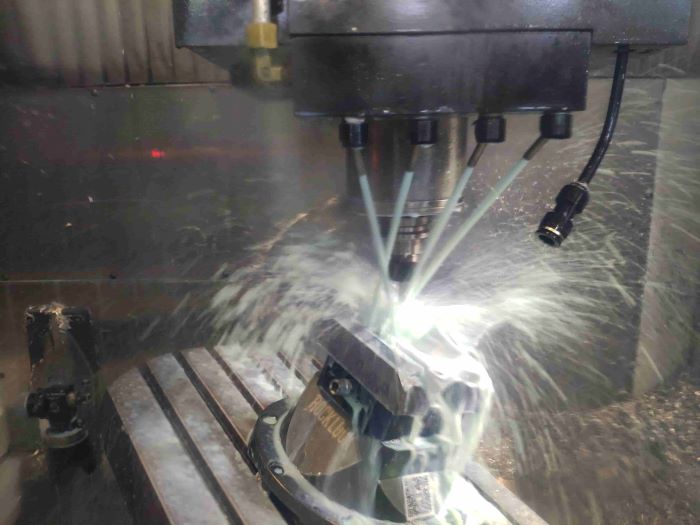

Coolant is a chip's escort out of the cutting zone. High-pressure through-tool systems (800-1,500 PSI) blast chips free, particularly in deep slots. An engine block manufacturer milling cast aluminum halved evacuation issues with a 60-bar setup. Nozzle placement is critical—angling at 10-15 degrees behind the tool maximizes flow without turbulence.
For dry machining, compressed air or cryogenic jets work wonders. A composites plant used CO2 jets to clear carbon fiber dust, avoiding vacuum clogs. Eco-friendly shops favor vegetable-based fluids for their low foam and high lubricity, maintaining flow in complex cuts.
Example: A gear manufacturer hobbing 8620 steel used zoned coolant—high-pressure at entry, mist at exit—cutting chip nesting by 50% and extending hob life by 20%.
Tuning speeds and feeds is like balancing an equation. High spindle speeds (above 7,000 RPM) leverage centrifugal force for chip ejection, but pair with moderate feeds (0.006-0.010 IPR) to encourage breaks. Peck drilling, retracting every 1-2x diameter, flushes deep bores effectively. An aerospace firm drilling Ti-6Al-4V cut evacuation forces by 30% with this approach.
Adaptive control systems monitor torque and adjust feeds dynamically, preventing buildup. In a crankshaft milling trial, this reduced stalls by 85%. CAM tools like Fusion 360 simulate chip flow, letting you test paths virtually.
Evacuation is only half the equation—preventing chips from harming surfaces is equally critical. Scratches or embedded swarf can ruin precision parts, especially in industries like aerospace or medical.
Chip breakers are frontline defenders, curling chips away from surfaces. In turning hydraulic rods, a wave breaker kept chips 0.15 inches clear, maintaining Ra below 25 microinches. Tool paths like trochoidal milling sweep chips out on the upcut, ideal for mold pockets. A plastics fabricator milling ABS cut defects from 7% to 1% with this method.
Temporary barriers, like peelable coatings, shield critical zones. A medical toolmaker used a water-soluble film on titanium implants, eliminating chip marks post-machining. Climb milling, where the tool cuts with the feed direction, also minimizes chip drag on finish passes.
Post-process cleaning, like ultrasonic baths, removes embedded chips without abrasion. Eddy current testing spots subsurface flaws from chip impact. An optics shop used laser scanning to detect micro-scratches, catching 4% of defects early.
Case study: Turbine blade machining in aerospace used climb milling with immediate air blasts, achieving 98% defect-free surfaces, verified by interferometry.
Real-world applications bring these strategies to life. A Texas drillpipe manufacturer faced 15% tool failures from chip packing in deep holes. High-pressure coolant at 1,800 PSI, paired with chip-morphology control via pulsed feeds, cut downtime by 50%.
In Sweden, a medical implant shop machining CoCrMo struggled with stringy chips scoring surfaces. Modulation-assisted machining (MAM), oscillating feeds to break chips, held Ra below 12 microinches, boosting yield to 97%.
An Ohio auto supplier milling aluminum heads tackled port clogs with peck cycles and vortex nozzles, reducing recuts by 65%. Energy costs dropped 10% from shorter cycles. A watchmaker turning 904L cases used textured tools, eliminating burrs and preserving mirror finishes.
These cases show how tailored solutions drive measurable gains.
Emerging tech is reshaping chip control. AI-driven systems, using vibration sensors, predict buildup and adjust parameters in real-time. A shop using MTConnect sensors cut interventions by 75%.
Ultrasonic-assisted machining fractures chips via high-frequency vibration, boosting evacuation by 80% in titanium trials. 3D-printed tools with custom coolant channels optimize flow for specific jobs, reducing adhesion by 40% in composites.
IoT-enabled conveyors detect clogs instantly, rerouting air or fluid. Edge computing dashboards integrate these systems, flagging risks proactively. These tools are already transforming high-tech shops.
Chip management is the backbone of efficient, high-quality machining. By understanding chip formation, optimizing tools, coolants, and parameters, and protecting surfaces, you can minimize downtime and defects. From the Texas drillpipe turnaround to the Swiss watchmaker's mirror finishes, these strategies deliver results. Stay proactive—test new approaches, log outcomes, and share insights with peers. As machining evolves with tougher materials and tighter tolerances, mastering chip control keeps you ahead. Your next great run is just a tweak away—what's your chip strategy?
Q1: How can I quickly address chip buildup in aluminum pocket milling?
A: Use through-spindle coolant at 600 PSI aimed at the tool tip to flush chips. If unavailable, program a spiral tool path to sweep chips out. This cleared 75% of clogs in a shop I visited milling 6061-T6.
Q2: What's the best way to avoid chip scratches on titanium parts during turning?
A: Opt for inserts with chip breakers and a positive rake to direct chips away. Use MQL for low adhesion. Climb cutting on the final pass reduced scratches by 80% in one aerospace job.
Q3: How do I optimize deep-hole drilling to prevent chip-related tool breaks?
A: Peck every 1-1.5x diameter with high-pressure coolant (1,200 PSI). Gradually increase feed to avoid jamming. This cut breaks by 50% in 4140 steel drilling.
Q4: Are variable helix tools worth it for general milling?
A: Yes, for ductile materials—they reduce vibration and improve chip flow, extending tool life by 25%. Less critical for brittle materials like cast iron. ROI often hits within 40 hours.
Q5: How can I monitor chips on an older CNC without major upgrades?
A: Install low-cost vibration sensors tied to a PLC, using open-source software to track flute harmonics. A shop retrofitted this for $150, catching 65% of buildup issues early.
Title: Efficiency of Chips Removal During CNC Machining of Particleboard
Journal: WOOD RESEARCH
Publication Date: 2016
Main Findings: Pocketing extraction nearly 100%, through-milling 87% efficiency; finer chips easier to remove than larger ones
Methods: CNC router experiments with sieving analysis for chip size distribution
Citation: Pałubicki et al., 2016, pp 811–818
URL: https://www.woodresearch.sk/wr/201605/13.pdf
Title: Effect of Different Feed Rates on Chip Evacuation in Drilling Small-Diameter Deep Holes
Journal: International Journal of Advanced Technology (IJAT)
Publication Date: 2024-07-04
Main Findings: Slow feed yields bellows-like chips; high feed produces long-pitch chips, enabling 10,000 holes with better accuracy
Methods: Twist drill tests on free-cutting brass at varied feed rates; hole quality assessment
Citation: Yamamoto et al., 2024, pp 503–512
URL: https://www.jstage.jst.go.jp/article/ijat/18/4/18_503/_article/-char/en
Title: Study on Chip Removal Mechanism of PCD Ball-End Milling
Journal: Advances in Mechanical Engineering
Publication Date: 2023-09-30
Main Findings: Orthogonal cutting experiments show PCD inserts generate segmented chips under optimized parameters, reducing tool-chip contact
Methods: Experimental milling with ultrafine PCD inserts; chip morphology and surface finish analysis
Citation: Kasuriya et al., 2023, pp 1–12
URL: https://www.tandfonline.com/doi/full/10.1080/21693277.2020.1862721
