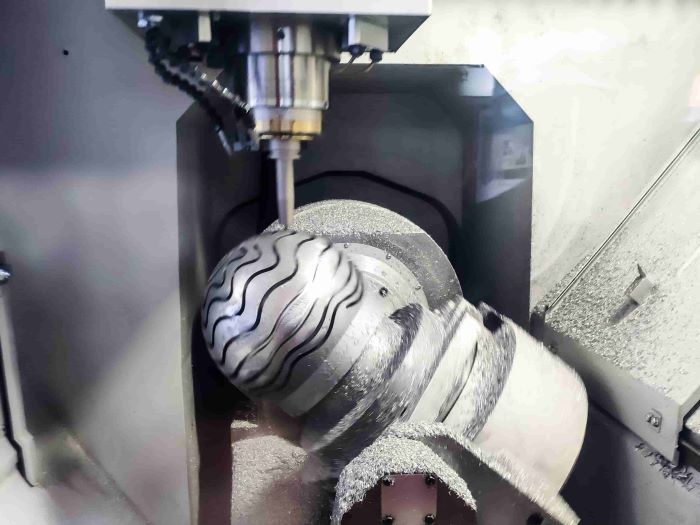

Fellow machinists and engineers in the manufacturing world, let's get straight into the heart of chip analysis in machining. Those metal shavings piling up at the base of your lathe or mill aren't just scrap—they hold key information about how your cutting process is performing. By examining the shape and texture of these chips, you can figure out if your parameters are spot on or need some adjustment. This guide walks through the basics of chip formation, common shapes you'll encounter, ways to analyze them properly, and how to use that knowledge to fine-tune speeds, feeds, and other settings for better results in operations like turning, milling, or drilling.
I've spent time in shops where ignoring chip signals led to headaches like excessive tool wear or scrapped parts. But once you start paying attention, it becomes second nature. For example, in high-volume turning of aluminum parts, smooth, continuous chips often mean you're good to go, while jagged, broken ones might point to a dull tool or wrong rake angle. We'll draw from solid research on materials ranging from steels to composites, showing real setups where chip insights improved efficiency. By the time you finish reading, you'll have practical steps to apply on your next job.
Chip formation starts the moment the tool edge contacts the material, shearing it off in a zone of intense plastic deformation. There are typically three shear zones: the primary where the bulk of the work happens, the secondary along the tool face where friction heats things up, and sometimes a tertiary near the tool tip. The resulting chip's texture—whether it's smooth, serrated, or fractured—directly ties back to the strain rates, temperatures, and material flow in these zones.
In orthogonal turning, the shear plane angle is crucial. If it's around 20-30 degrees, you get heavy compression and thick chips; push it to 40-50 degrees with higher speeds, and chips thin out with less deformation. I recall a setup on medium carbon steel where shear angles varied from 36 degrees at low speeds to 49 degrees at higher ones, measured using quick-stop devices. This change alone reduced chip thickness by nearly half, making evacuation easier and cutting forces lower.
Material type sets the stage—ductile metals like brass or low-carbon steel form long, curling chips easily, while harder or brittle stuff like titanium alloys or ceramics breaks into short segments. Tool geometry plays a big part too; a tool with a high positive rake angle (say, 15-20 degrees) encourages smoother flow and less built-up edge, leading to cleaner chip surfaces.
Cutting conditions round it out. Low speeds and high feeds often produce compressed, segmented chips because of the prolonged contact time and higher shear strain. Take a practical example from turning precipitation-hardening stainless steel like 17-4 PH. At a speed of 280 m/min and feed of 0.094 mm/rev under dry conditions, you end up with long, snarly chips that wrap around the tool and scratch the workpiece. Bump the speed to 456 m/min and feed to 0.27 mm/rev, and those turn into short, manageable spirals. The reason? Better heat management reduces stickiness, and the higher shear rate promotes natural breaking.
Another real-world scenario involves drilling carbon fiber-reinforced polymers (CFRP). Standard twist drills at conventional settings generate blunt, fibrous chips with short lengths around 80 micrometers, as the heat softens the resin matrix and causes smearing. Introduce low-frequency vibration assistance at 83 Hz with 0.48 mm amplitude, and the chips sharpen up, with fiber lengths stretching to 300 micrometers. The vibration creates periodic disengagement, keeping the material cooler and stiffer for cleaner cuts.
Feed rate and depth of cut also matter. In a milling job on aluminum alloys, a shallow depth of 0.5 mm with a moderate feed of 0.1 mm/tooth keeps chips continuous and thin. Go deeper to 2 mm, and they start segmenting due to increased chip load, which can lead to higher temperatures and surface defects.
Continuous chips look like unbroken ribbons or tubes, curling as they form. They show up in ductile materials under stable conditions with good lubrication and balanced parameters. On the positive side, they indicate low friction and efficient material removal, but if they're too long and stringy, they can jam machines or mar surfaces.
Consider end milling of CFRP-aluminum stacks on a CNC machine. Running at 5000 RPM spindle speed and 800 mm/min feed with a 0.2 mm depth of cut, the chips come out as fine, continuous strands with minimal fiber damage. Surface roughness here hovers around 0.5-1.0 micrometers Ra, because the chips evacuate without redepositing debris. Now, if you double the feed to 1600 mm/min, the chips fragment into irregular pieces, causing vibrations that roughen the surface to 1.5-2.0 micrometers Ra. The texture shifts from smooth shear lines to jagged edges, a clear sign to dial back the feed.
In turning soft steels, continuous chips are the goal for high-speed production. At 200 m/min and 0.3 mm/rev, they form helical curls that break naturally at the tool's chip breaker, keeping things tidy.
These chips break into short, individual pieces or serrated bands, often due to high strain hardening, brittle fracture, or built-up edges. They're common in machining harder steels or at low speeds where deformation builds up. While they might signal potential issues like tool chipping, well-controlled discontinuous chips are great for automatic chip handling in modern machines.
Look at turning tool steel like 62SiMnCr4. At a low speed of 75 m/min and feed of 0.2 mm/rev, chips compress to 2.46 times their original thickness, showing heavy segmentation from intense plastic strain. The texture features deep serrations, about 0.5-1 mm wide, visible under a microscope. Increase speed to 145 m/min and feed to 0.6 mm/rev, and compression drops to 1.06, with segments smoothing out—fewer cracks and more uniform flow. This adjustment not only eases chip removal but also cuts energy consumption by 20-30% in the process.
For drilling CFRP, vibration-assisted methods produce segmented chips in high-frequency modes (1500 Hz), reducing the uncut chip thickness by up to 50%. These chips have organized, layered textures with less matrix adhesion, leading to 60% less delamination around holes compared to continuous, smeared chips from standard drilling.
Spiral or helical chips twist into tight coils, striking a balance between continuous and discontinuous. They're ideal for turning operations where chip control is key, forming at moderate speeds and feeds that allow curling without excessive length.
In finish turning 17-4 PH stainless steel under minimum quantity lubrication (MQL), a speed of 456 m/min and feed of 0.27 mm/rev yields short spirals with a curl radius under 10 mm. The chip texture shows fine, even serrations on the back side, correlating to low surface roughness values around 0.4 micrometers Sa. At lower speeds like 194 m/min and higher feeds of 0.36 mm/rev, you get long helices that can foul the tool, with rougher textures featuring irregular waves up to 1.5 micrometers Sa.
Adding extreme pressure additives to the MQL fluid changes the game—chips shift to more controlled screwed shapes, with tighter spirals and smoother undersides, reducing surface anisotropy by promoting isotropic finishes.
In aluminum bar turning, helical chips at 300 m/min and 0.15 mm/rev help in high-precision work, where the curl prevents them from whipping around and damaging the fresh cut.
Begin with the naked eye or a hand lens: check color (dark blue for overheating, silvery for cool cuts), length (short for good breaking, long for tangling), and overall form. Then, move to scanning electron microscopy (SEM) for details like fracture surfaces or fiber pullout.
In a study on milling CFRP composites, SEM images at low speeds (2000 RPM) revealed blunt chip edges with smeared resin and fractured fibers, textures that matched poor hole quality. At 5000 RPM, chips displayed clean, perpendicular shear planes with minimal adhesion, directly linking to smoother machined surfaces.
For steel chips from turning, optical microscopy at 100-500x magnification lets you see grain flow. In cross-sections of C45 steel chips, elongated grains parallel to the shear direction indicate 70% deformation at low parameters, while higher speeds show more equiaxed grains with only 20% strain.
Calculate the chip compression ratio as the ratio of chip thickness to undeformed thickness—values over 2 suggest inefficiency. Degree of plastic deformation can be quantified using stereology on etched sections, measuring grain distortion.
Experiments on C45 carbon steel showed compression starting at 2.01 at 110 m/min and 0.2 mm/rev, dropping to 1.00 at 180 m/min and 0.6 mm/rev. Deformation followed suit, from 0.70 to 0.21, with textures shifting from heavily serrated to nearly smooth. For tool steel 62SiMnCr4, similar trends held, but feed had a stronger effect, reducing deformation more than speed alone.
Use digital image correlation (DIC) on high-speed videos to map strain fields in real time, helping predict texture changes before full runs.
Chip texture often predicts workpiece finish—use 3D profilometers to measure parameters like arithmetic mean height (Sa), root mean square (Sq), and maximum height (Sz).
In turning stainless steel, dry conditions at moderate parameters produced chips with anisotropic textures and high Sa (1.3-15 micrometers), leading to periodic surface grooves. MQL at optimized settings gave short chips with mixed anisotropy and lower Sa (0.4-0.8 micrometers), with 60% isotropy for better uniformity.
For CFRP drilling, vibration-assisted chips' fibrous, organized textures correlated to Ra below 1.5 micrometers, versus over 3 micrometers for conventional blunt chips, with 40-50% less edge chipping.
Speed influences heat and shear—higher values thin chips but can overheat if unchecked. In steel turning, raising from 110 to 180 m/min halved compression, optimal with 0.6 mm/rev feed for smooth textures.
For CFRP milling, Taguchi analysis confirmed feed's 52% role in roughness; low 800 mm/min with high 5000 RPM speed produced fine chips, cutting Ra by 30-40%.
In drilling, low-frequency vibration at 83 Hz and 0.48 mm amplitude sharpened chips, allowing 20% higher feeds while dropping delamination by 60%.
Start adjustments small: if chips are too continuous, increase feed by 20%; for segmentation, boost speed 10-15%.
Deeper cuts load the tool more, promoting segmented chips. In aluminum milling, sticking to 0.2-0.5 mm depths with low feeds kept chips continuous and surfaces under 1 micrometer Ra.
Tool edges matter— a 55 micrometer hone on carbide inserts for steel turning aids smooth flow; for composites, sharper PCD tools (under 10 micrometers) prevent pullout, yielding cleaner chip breaks.
Geometry tweaks like higher rake (10-15 degrees) reduce compression in ductile materials, as seen in tests where it dropped ratios by 15-20%.
Cooling controls temperature, affecting ductility. Dry machining works for some alloys but leads to long chips; MQL with vegetable oil at 50 ml/h in stainless turning broke chips into spirals, cutting Sa by 48% versus dry.
In CFRP, vibration's intermittent contact cools naturally, reducing matrix softening and refining chip textures by 31% lower temps.
For high-speed steel work, flood coolant at 10-15 bar pressure smooths segments, but MQL saves fluid while maintaining similar benefits.
In a production run milling CFRP-aluminum laminates, an L9 Taguchi array tested speeds from 2000-5000 RPM, feeds 800-1600 mm/min, and depths 0.2-0.6 mm using PCD end mills. At 5000 RPM, 800 mm/min, 0.2 mm, chips were thin and continuous with clean fiber cuts, achieving Ra of 0.5 micrometers. ANOVA showed feed dominating at 52%, speed at 28%. Adjusting to these parameters reduced roughness by 35% and cycle time by 25%, with SEM confirming smoother chip morphologies.
Without optimization, higher feeds produced fragmented chips with resin buildup, spiking Ra to 2.0 micrometers and increasing delamination by 50%.
Turning 17-4 PH stainless on a CNC lathe with coated carbide tools, researchers mapped parameters using a parameter space investigation (PSI). Optimal dry: 280 m/min, 0.094 mm/rev—long snarls, Sa 0.8 micrometers. MQL at 456 m/min, 0.27 mm/rev: short spirals, Sa 0.4 micrometers, 43% improvement. Wet conditions added minor gains but used more fluid. Chips under MQL showed reduced serration depth by 40%, linking to lower friction coefficients.
This setup extended tool life by 40% in a factory trial, handling 500 parts without resharpening.
Drilling CFRP plates with twist drills, conventional at 2000 RPM and 50 mm/min feed gave blunt chips, 80 micrometer fibers, and 3 micrometers Ra with 20% delamination. Low-frequency VAD at 83 Hz, 0.48 mm amplitude, 3000 RPM: sharp, 300 micrometer chips, Ra under 1.5 micrometers, zero delamination. Thrust rose 15% but temps fell 31%, enabling unsupported drilling. High-frequency (1500 Hz) segmented chips further, reducing edge damage by 60%.
In aerospace applications, this cut secondary processing time by half.
For C45 carbon steel on a universal lathe, tests at 110-180 m/min, 0.2-0.6 mm/rev showed compression from 2.01 to 1.00, deformation 0.70 to 0.21. Microstructures via light microscopy revealed less grain elongation at high parameters, with chip textures smoothing from 1 mm serrations to 0.2 mm. Energy dropped 25%.
Tool steel 62SiMnCr4 followed: 75-145 m/min, same feeds, compression 2.46 to 1.06. Feed drove most changes, optimizing at 0.6 mm/rev for 145 m/min, improving surface finish by 30% in gear production.
Titanium alloys like Ti-6Al-4V form tough, continuous chips that bird-nest easily. Ultrasonic vibration at 20 kHz, 10 micrometer amplitude during turning at 100 m/min, 0.2 mm/rev broke them into 5-10 mm segments with serrated textures indicating reduced adhesion. Without vibration, chips were 200 mm long, causing interruptions; with it, productivity rose 50%, and tool wear fell 35% due to lower temps.
Different materials react uniquely. In composites, 0-degree fiber orientation leads to pullout in chips, rough textures; 90-degree gives transverse fractures, cleaner breaks. Optimize by aligning cuts with layers.
For steels, annealed grades form continuous chips at low speeds (under 100 m/min), while hardened ones segment immediately. Inconel or superalloys need high-pressure coolant to avoid gumminess.
Finite element modeling (FEM) software like Abaqus simulates chip flow, predicting textures based on Johnson-Cook models for strain. Validate with experiments— one simulation matched real shear angles within 5% for steel turning.
Couple with machine learning to analyze chip images from cameras, auto-adjusting parameters.
Smart factories use sensors to monitor chip volume and shape via vision systems, feeding data to CNC controls for real-time tweaks. In one setup, AI detected long chips and auto-increased feed by 10%, preventing jams.
Edge computing processes this on-site, reducing latency for high-speed ops.
Common pitfalls: ignoring coolant degradation, leading to overheated chips; or mismatched tool geometry for material. Troubleshoot by logging chip samples per run, correlating with forces and finishes.
For eco-friendly shops, dry or MQL strategies demand finer parameter control to maintain chip control.
As we wrap up this deep dive into chip texture analysis, it's clear that these small indicators pack a punch for machining success. Whether you're seeing continuous ribbons that scream efficiency or segmented fragments warning of overload, each shape guides you toward better parameters. We've covered the mechanics, from shear zones to quantitative metrics, and seen how adjustments in speed, feed, depth, and cooling transform outcomes—like those short spirals in stainless turning under MQL or sharpened fibers in vibration-drilled composites.
In the cases we examined, from CFRP milling to steel turning, optimizing based on chips consistently lowered roughness, extended tool life, and boosted productivity. Apply this on your floor: collect chips after each pass, inspect them closely, measure key ratios, and iterate. Over time, you'll develop an intuition that saves hours and materials.
This isn't a one-size-fits-all; tailor it to your materials and machines, but the principles hold firm. Keep experimenting, share what works in your team, and watch your processes level up. Machining gets better when we listen to the chips.
Q: What does it mean if chips are turning blue during high-speed milling?
A: Blue color signals excessive heat from too high a speed or poor cooling—dial back speed by 20% or add MQL to prevent tool softening and chip welding.
Q: How can feed rate changes help with long continuous chips in aluminum turning?
A: Increase feed from say 0.1 to 0.2 mm/rev to promote curling and breaking; this raises shear angle, reducing length without much force increase.
Q: In composite drilling, why do vibration methods improve chip sharpness?
A: The periodic separation reduces continuous contact, keeping fibers intact and matrix firm, leading to lengths up to 300 micrometers versus 80 in standard.
Q: What's the impact of rake angle on chip segmentation in hard steels?
A: Higher positive rake (15 degrees) smooths segments by easing flow; negative rake increases them, useful for control but raises forces 15-20%.
Q: How do I use chip compression to predict energy use in turning?
A: Lower ratios under 1.2 indicate efficient low-energy cuts; track via thickness measurements, adjusting speed/feed to stay in that zone for 20-30% savings.
