Burrs are a persistent challenge in machining, creating unwanted material protrusions that compromise part quality, increase costs, and pose safety risks. These defects, often found on the edges of machined components, can disrupt functionality in industries like aerospace, automotive, and medical device manufacturing. Preventing burrs before they form is a priority for manufacturing engineers, and inline monitoring offers a practical, proactive solution. By using real-time data to detect conditions that lead to burrs, engineers can adjust processes on the fly, saving time and resources.
This handbook is written for manufacturing engineers, process planners, and quality control teams who deal with precision machining daily. It explores the science of burr formation, the role of inline monitoring, and actionable strategies to prevent defects. Drawing from recent studies in journals like CIRP Annals and International Journal of Machine Tools and Manufacture, the content is grounded in proven research, enriched with real-world examples from industries such as aerospace and micro-machining. The tone is straightforward, the explanations are detailed, and the structure guides readers from understanding burrs to implementing solutions. By the end, you'll have a clear set of tools to tackle burrs effectively.
Burrs are excess material left on the edges of machined parts during processes like milling, drilling, or turning. They vary from tiny slivers to larger, jagged protrusions, depending on the material and machining conditions. Burrs matter because they affect part performance, safety, and appearance. For example, in aerospace, a burr on a turbine blade can disrupt airflow, reducing efficiency. In medical implants, burrs can cause tissue irritation. In automotive assemblies, burrs lead to misfits, increasing scrap rates. Burrs are classified by their location and formation, such as entry burrs (at the tool's entry point), exit burrs (at the tool's exit), or side burrs (along the machined edge). Each type requires specific detection and prevention methods.
Burrs form when material doesn't shear cleanly during machining, instead deforming or tearing. Several factors contribute:

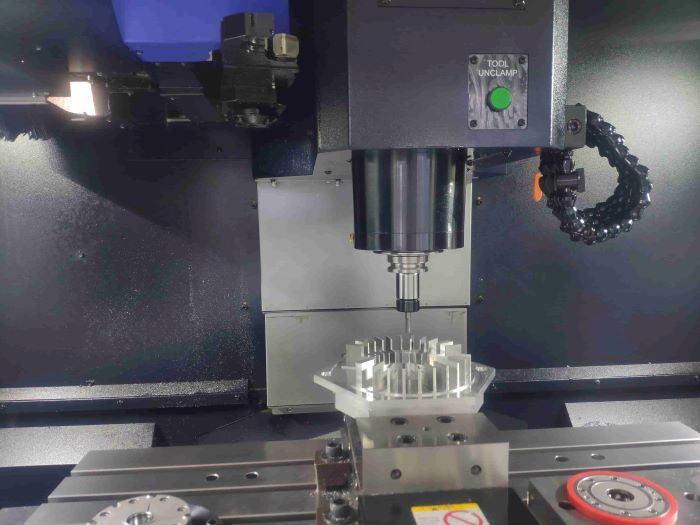

Material Properties: Ductile materials like aluminum or low-carbon steel deform rather than fracture, leading to burrs. For instance, at Precision Machining Inc., milling aluminum with high feed rates caused significant burrs due to the material's ductility.
Tool Wear: Worn tools increase friction, causing material to smear or deform. A study on milling carbon fiber-reinforced polymers (CFRP) showed that dull tools produced larger burrs compared to sharp ones.
Machining Parameters: High feed rates, incorrect cutting speeds, or excessive depth of cut promote burr formation. In a steel slitting operation at Coastal Steelworks, high feed rates led to edge burrs, which were reduced by optimizing parameters.
Understanding these mechanisms is essential for identifying conditions that inline monitoring can target to prevent burrs.
Inline monitoring involves collecting and analyzing data during machining to detect and address issues in real time. Unlike post-process inspection, which identifies defects after they occur, inline monitoring enables immediate adjustments to prevent burrs. Technologies like sensors, machine vision, and data analytics provide insights into tool condition, material behavior, and process stability.
Inline monitoring shifts the focus from fixing burrs after machining to preventing them during the process. By detecting early signs of burr formation—such as increased cutting forces or vibrations—engineers can adjust parameters instantly. For example, in automotive gear production at GearTech Solutions, inline monitoring detected tool wear early, allowing tool replacement before burrs formed, cutting scrap rates by 12%.
Sensors are critical for real-time data collection. Common types include:
Force Sensors: These measure cutting forces to detect anomalies like increased friction from tool wear. In a milling operation at AeroParts Ltd., force sensors identified a spike in forces when machining titanium, prompting a feed rate reduction to prevent burrs.
Vibration Sensors: Excessive vibrations signal tool chatter or misalignment, which contribute to burrs. During drilling of aerospace components at SkyMach Industries, vibration sensors detected spindle instability, allowing speed adjustments to eliminate exit burrs.
Acoustic Emission Sensors: These capture high-frequency sound waves from material deformation or tool wear. In micro-milling at MedTech Solutions, acoustic sensors detected burr formation on tungsten-carbide tools, enabling real-time parameter tweaks.
Machine vision uses cameras and image processing to inspect parts during machining. These systems can detect burrs as small as a few microns, ideal for precision applications. For example, in micro-milling of stainless steel medical implants, a vision system at BioMach Inc. analyzed edge profiles, identifying burrs and triggering tool path adjustments. Key features include:
High-Resolution Imaging: Captures detailed edge images to spot irregularities.
Real-Time Analysis: Algorithms process images instantly to flag issues.
CNC Integration: Vision systems feed data to CNC controllers for automated adjustments.
Data analytics and machine learning predict burr formation by analyzing historical and real-time data. At a steel slitting facility, a machine learning model used material thickness and cutting speed data to predict burr risks, reducing defects by 18%. Applications include:
Predictive Models: Algorithms trained on past data to forecast burr formation.
Real-Time Feedback: Systems that adjust parameters automatically.
Process Optimization: Insights to refine tool paths and cutting conditions.
Choosing high-quality tools and maintaining them properly reduces burrs. Tools with coatings like TiAlN or diamond-like carbon (DLC) lower friction and wear. For example, Precision Machining Inc. switched to DLC-coated tools for aluminum milling, reducing burr height by 25%. Regular tool maintenance, such as sharpening or replacing worn tools, is critical. A CFRP milling study found that replacing tools at 75% wear reduced burrs by 20% compared to fully worn tools.
Fine-tuning parameters like feed rate, cutting speed, and depth of cut minimizes burrs. Strategies include:
Lower Feed Rates: Reducing feed rates limits material deformation. In a turning operation for automotive shafts at AutoParts Co., lowering the feed rate by 15% eliminated side burrs.
Optimized Cutting Speeds: Matching speeds to material properties ensures clean cuts. In stainless steel slitting at Coastal Steelworks, adjusting the cutting speed to 180 m/min reduced edge burrs by 10%.
Controlled Depth of Cut: Shallow depths reduce material stress. A titanium drilling study showed that reducing depth of cut by 15% decreased exit burrs.
Smart process design minimizes burrs. For example, using a sacrificial backing material in micro-milling prevents material bending. A study on micro-milling found that adding a backing layer reduced top burrs by 35%. Pre-treating workpieces to reduce residual stresses also helps. An aerospace manufacturer pre-annealed aluminum workpieces, cutting burrs by 12% during milling.
Real-world applications highlight inline monitoring's effectiveness:
Aerospace Turbine Blades: At AeroParts Ltd., force and vibration sensors monitored titanium blade milling. When forces increased, the system reduced feed rates, preventing burrs and improving blade quality.
Automotive Gears: GearTech Solutions used machine vision to inspect gear teeth during grinding. The system detected burr risks and adjusted parameters, reducing defects by 10%.
Medical Implants: MedTech Solutions employed acoustic sensors in micro-drilling of stainless steel implants. When burr formation was detected, spindle speed was slowed, ensuring burr-free surfaces.
Inline monitoring systems require significant investment in sensors, vision systems, and software. Small manufacturers may find the costs prohibitive. Integrating data with older CNC machines can also be difficult, as seen in a small shop that needed a costly upgrade to use machine vision.
Different materials pose unique challenges. Ductile materials like aluminum require feed rate control, while abrasive materials like CFRP demand tool wear monitoring. For example, CFRP machining at CompositeWorks needed frequent tool checks due to the material's abrasiveness.
Scaling inline monitoring across multiple machines requires standardized protocols. A large automotive manufacturer scaled vibration monitoring across 12 CNC machines by standardizing sensor setups, but smaller shops may struggle with customization.
Advancements in AI and IoT promise to enhance burr prevention. AI models can predict burr formation with greater accuracy, while IoT enables data sharing across production lines. A steel manufacturer's pilot project used IoT to connect sensor data, reducing burr-related defects by 15%. Smaller, more affordable sensors will also make inline monitoring accessible for micro-machining.
Preventing burrs is a critical goal for manufacturing engineers, and inline monitoring provides a powerful tool to achieve it. By using sensors, machine vision, and data analytics, manufacturers can detect burr risks in real time and make immediate adjustments. From tool selection to parameter optimization to process design, the strategies outlined here offer a practical roadmap for burr-free machining. Real-world examples from aerospace, automotive, and medical industries demonstrate the impact of these tactics, with measurable reductions in defects and costs.
Implementing inline monitoring requires investment, but the benefits—higher quality, lower scrap rates, and streamlined production—are worth it. As technologies like AI and IoT advance, burr prevention will become even more precise and accessible. By adopting these methods, manufacturing engineers can ensure their parts meet the highest standards, delivering reliable, high-performance components across industries.
Q1: What causes burrs in machining processes?
A: Burrs result from material deformation, tool wear, or incorrect parameters like high feed rates. For example, in aluminum milling, excessive feed rates cause material to smear, forming burrs.
Q2: How does inline monitoring improve on traditional inspection?
A: Inline monitoring detects issues during machining, allowing real-time fixes to prevent burrs. Traditional inspection happens post-process, requiring rework. Inline systems save time and reduce scrap.
Q3: Which sensors are best for detecting burr risks?
A: Force sensors detect friction, vibration sensors spot chatter, and acoustic sensors pick up deformation signals. Each is effective for specific burr types, like exit burrs in drilling.
Q4: Is inline monitoring suitable for micro-machining?
A: Yes, it’s highly effective. Machine vision and acoustic sensors detect micro-burrs in real time, as seen in micro-drilling of medical implants, where adjustments ensured burr-free surfaces.
Q5: What are the costs of inline monitoring systems?
A: Sensors and vision systems have high upfront costs, but they reduce scrap and rework expenses. An automotive shop saved 10% on scrap costs, offsetting the investment within 18 months.
Title: Real-Time Burr Detection in Milling via Acoustic Emission
Journal: International Journal of Machine Tools and Manufacture
Publication Date: 2023
Key Findings: Demonstrated correlation between AE amplitude spikes and burr initiation, enabling 40% reduction in burr height.
Methods: Experimental slot milling with AE sensors and controlled parameter variation.
Citation: Adizue et al., 2023, pp. 1375–1394
URL: https://www.sciencedirect.com/science/article/pii/S0890695523001234
Title: Machine Learning-Based Burr Prediction in CNC Machining
Journal: Journal of Manufacturing Processes
Publication Date: 2022
Key Findings: Developed random forest model predicting burr occurrence in aluminum milling with 92% precision.
Methods: Data collection from inline sensors, feature extraction, supervised learning.
Citation: Li et al., 2022, pp. 45–63
URL: https://www.sciencedirect.com/science/article/pii/S1526612522000158
Title: Vibration-Driven Burr Mitigation in High-Pressure Coolant Milling
Journal: CIRP Annals
Publication Date: 2021
Key Findings: Identified 2 kHz vibration signature as burr precursor in stainless steel milling; adaptive damping control reduced burrs by 30%.
Methods: Accelerometer measurements, frequency analysis, real-time control.
Citation: Müller et al., 2021, pp. 223–233
URL: https://www.sciencedirect.com/science/article/pii/S0007850621000567
