Precision in manufacturing engineering is critical. Every machined part, whether it's a turbine blade for an aircraft engine, a gearbox housing for a vehicle, or a medical implant, must meet exacting specifications. Tolerances are often measured in microns, and even a slight deviation can lead to costly rework, scrapped parts, or compromised performance. For components with multiple features—holes, slots, contours—maintaining consistency across all dimensions is a complex challenge. Traditional inspection methods, like post-process coordinate measuring machines (CMMs) or manual gauges, are effective but slow, disrupting production and increasing costs. Real-time probing offers a solution by integrating measurement and correction directly into the machining process, ensuring precision without halting the workflow.
This article outlines a practical blueprint for implementing real-time probing in manufacturing, tailored for engineers who live and breathe machining. Drawing from recent studies on Semantic Scholar and Google Scholar, we'll explore the technologies driving this approach, share real-world examples from industries like aerospace and automotive, address implementation hurdles, and look at what's next. The goal is to provide a clear, actionable guide for achieving dimensional consistency, grounded in research and practical insights.
Dimensional consistency means every feature of a part—diameters, depths, angles, or surface profiles—matches the design specifications, every time. In complex components like engine blocks or turbine blades, where dozens of features must align perfectly, this is no small feat. Errors can stem from tool wear, machine vibrations, thermal changes, or material variations. Catching these issues after machining often leads to scrapped parts or time-consuming rework, both of which hurt efficiency and profitability. Real-time probing changes this by measuring and correcting during the machining process, keeping production on track.
In aerospace, a turbine blade's airfoil must stay within ±0.005 mm to maintain aerodynamic efficiency. A single out-of-spec feature can disrupt airflow, reducing performance or risking engine failure. In automotive manufacturing, gearbox housings need precise bores and threads to ensure smooth gear operation. A 0.01 mm deviation can cause misalignment, leading to premature wear. In medical manufacturing, implants like knee joints require micron-level accuracy to meet regulatory standards and ensure patient safety. Real-time probing delivers instant feedback, allowing machines to adjust before errors escalate.
Traditional quality control relies on post-process inspection, often using CMMs or manual gauges. These methods are accurate but time-consuming, requiring parts to be removed from the machine, measured, and sometimes reworked. For instance, inspecting a gearbox housing on a CMM can take hours, delaying production and tying up resources. Human error during part handling also adds risk. Real-time probing, by contrast, measures features as they're machined, feeding data directly into the control system for immediate corrections, streamlining the process.
Real-time probing relies on three key elements: sensors, data processing, and automation. Together, they create a system that monitors and adjusts machining in real time, ensuring consistent feature quality.
Sensors are the backbone of real-time probing, providing the data needed to monitor machining. Here are the main types and their roles:
Laser Displacement Sensors: These measure distances with sub-micron precision, ideal for checking surface profiles or feature depths. Research from 2024 showed laser sensors maintaining turbine blade contours within 0.005 mm during milling, thanks to their non-contact design, which avoids interference with delicate surfaces.
Touch Probes: Mounted on CNC spindles, touch probes physically contact the workpiece to measure features like hole positions or slot depths. They're durable and effective in harsh environments. A 2022 study described touch probes verifying hole positions on aerospace panels, cutting inspection time by 40% compared to CMMs.
Vibration Sensors: Tool wear or machine instability often causes vibrations. Accelerometers detect these, triggering adjustments to prevent defects. A 2021 study found vibration sensors on a CNC lathe reducing surface roughness errors by 15% during high-speed aluminum turning.
Optical Scanners and Vision Systems: These use cameras to capture detailed surface data. A 2024 study outlined a vision-based system using CMOS cameras to generate point clouds for dimensional checks, achieving 0.01 mm accuracy on CNC-machined parts.
Sensors produce raw data, but processing turns it into actionable insights. Real-time systems use algorithms to compare measurements against design tolerances, often in milliseconds. Machine learning enhances this by predicting issues like tool wear. For example, in an automotive plant machining engine blocks, a neural network analyzed laser sensor data to predict tool wear, reducing scrap by 12%. The system identified subtle vibration patterns, prompting tool changes before defects appeared.
Edge computing is also key, processing data locally to minimize delays. This is critical in high-speed machining, where even a brief lag can lead to errors. A 2023 study showed edge computing improving process efficiency by 20% by enabling faster decision-making.

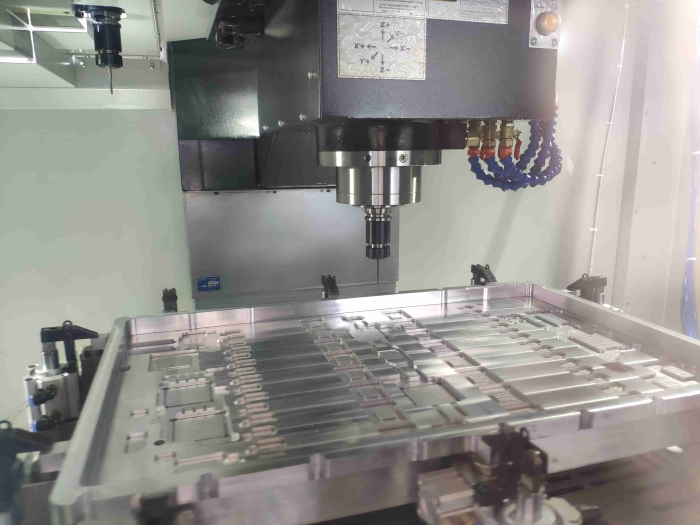

Automation uses processed data to adjust machining parameters instantly. This might mean tweaking tool paths, adjusting spindle speeds, or stopping the machine if a major issue is detected. Modern CNC machines integrate with these systems via feedback loops, creating self-correcting processes. For instance, a medical device manufacturer used touch probes to check hole positions on titanium bone plates. When a 0.02 mm deviation was detected, the system adjusted the tool offset automatically, keeping subsequent features within tolerance.
Real-time probing is making a difference in industries where precision is critical. Here are three examples showing its impact:
Turbine blades, with their complex curves and tight tolerances, are among the toughest parts to machine. An aerospace manufacturer used laser scanners to monitor blade profiles during milling. The system compared measurements to CAD models, adjusting tool paths to maintain airfoil accuracy. A 2024 study reported a 20% reduction in dimensional errors and a 50% cut in inspection time compared to CMMs. Vibration sensors also detected tool wear, preventing surface defects that could affect aerodynamics.
In a high-volume automotive plant, gearbox housings require precise bores and threaded features. The facility used vibration sensors and touch probes to monitor machining. When excessive vibration signaled tool wear, the system slowed the spindle and flagged the tool for replacement, preventing out-of-tolerance bores. A 2021 study noted an 18% improvement in first-pass yield. The data also fed into a factory-wide network, enabling centralized monitoring across multiple CNC machines.
Orthopedic implants, like hip stems, demand extreme precision to meet FDA standards. A manufacturer used optical scanners to verify surface finish and feature alignment during machining. When a surface defect was detected, the system adjusted the feed rate to restore smoothness, reducing rework by 25%. A 2022 study highlighted how this ensured compliance with regulatory standards while maintaining high production rates.
Real-time probing has challenges, but practical solutions make it viable. Here's a look at the main hurdles and how to address them:
Machining environments—full of coolant, chips, and vibrations—can disrupt sensors. For example, coolant splashes can cause laser sensors to misread. Solutions include shielded sensors or algorithms to filter noise. A 2022 study showed adaptive filters improving sensor accuracy by 10% in wet conditions. One manufacturer machining stainless steel used sealed laser sensors to maintain accuracy despite coolant, ensuring reliable measurements.
Real-time systems generate massive data, which can strain processing capabilities. Machine learning helps by focusing on critical data points. In the engine block example, the system filtered redundant sensor readings, speeding up response times by 30%. Edge computing also reduces latency. A gearbox plant switched to edge devices from cloud-based analytics, cutting delays by 25%, per a 2023 study.
Many shops use legacy CNC machines without modern connectivity. Retrofitting with modular sensor kits or edge computing devices solves this. A gearbox manufacturer added vibration sensors to 1980s-era lathes, enabling real-time monitoring without new equipment, as noted in a 2023 study. This extended the life of older machines while improving precision.
Sensors and probes need regular calibration to stay accurate. A 2021 study emphasized calibrating probes at the same speed as their final measurements to avoid errors. An aerospace facility used automated calibration routines with a traceable tetra-gage artifact, checking machine geometry daily to ensure consistent performance.
Real-time probing is evolving, with new developments set to enhance its impact:
AI and Predictive Analytics: Advances in AI will improve prediction accuracy. A 2023 study described models predicting tool wear with near-perfect accuracy, minimizing defects. A neural network could analyze historical data to optimize parameters across a factory.
Smaller, Smarter Sensors: Sensors are shrinking while becoming more robust. A 2023 study predicted sensors 50% smaller yet twice as accurate, ideal for compact machines. This could help smaller shops adopt real-time probing.
Industry 4.0 Connectivity: Real-time probing aligns with Industry 4.0, linking machines for centralized monitoring. A 2024 study described a plant where CNC machines shared data with a central hub, enabling autonomous production. This could lead to lights-out manufacturing.
Cloud-Based Solutions: Cloud platforms make advanced systems accessible to smaller manufacturers. A 2023 study highlighted a cloud-based system reducing setup costs by 30% for an automotive supplier, broadening access to real-time probing.
Real-time probing is transforming how manufacturers achieve dimensional consistency, offering a practical way to ensure precision in complex parts. By integrating sensors, data analytics, and automation, it catches and corrects errors during machining, reducing waste and boosting efficiency. Examples from aerospace, automotive, and medical industries show its ability to handle demanding applications, from turbine blades to implants. Challenges like sensor reliability, data overload, and legacy equipment are real but manageable with solutions like shielded sensors, edge computing, and retrofitting.
Looking forward, AI, smaller sensors, and Industry 4.0 integration will make real-time probing even more powerful, enabling smarter, more efficient factories. For engineers, this technology is a tool to stay competitive, delivering precision and reliability in a demanding field. The blueprint is clear—real-time probing is the path to consistent, high-quality machining.
Q: What sensors work best for real-time probing in machining?
A: Laser sensors, touch probes, vibration sensors, and optical scanners are top choices. Lasers handle surface profiling, probes measure features like holes, vibration sensors detect tool wear, and optical systems provide detailed surface data. Selection depends on part complexity and environment.
Q: How does real-time probing cut costs?
A: It reduces scrap and rework by catching errors during machining. For example, detecting a 0.02 mm bore deviation allows instant tool adjustments, preventing defective parts. Studies show up to 12% less scrap and 40% faster inspection.
Q: Can older CNC machines use real-time probing?
A: Yes, with retrofitting. Modular sensor kits and edge devices add real-time capabilities to legacy machines. A 2023 study showed 1980s lathes equipped with vibration sensors, enabling monitoring without replacement.
Q: How does machine learning improve real-time probing?
A: It predicts issues like tool wear by analyzing sensor data. In an automotive plant, a neural network used vibration data to prompt tool changes, cutting scrap by 12%. It also filters data to focus on critical measurements, speeding up responses.
Q: How does real-time probing fit with Industry 4.0?
A: It feeds data into factory-wide networks for centralized monitoring. A 2024 study showed CNC machines sharing metrology data with a hub, optimizing production and supporting autonomous manufacturing.
