In the world of manufacturing, crafting complex parts often means moving a workpiece through multiple setups—different machines, fixtures, or orientations—to carve out precise features. Each shift risks throwing off alignment, leading to errors that can ruin a part or balloon costs. Keeping reference integrity, where every setup aligns perfectly to a shared coordinate system, is the linchpin for precision and efficiency. Think of it like a relay race: if the baton (or datum) isn't passed cleanly, the whole team suffers. This is especially critical in fields like aerospace, automotive, and medical devices, where a fraction of a millimeter can make or break a part's performance.
The challenge isn't just technical—it's a puzzle of machines, tools, and human judgment. A slight misstep in setup, a worn fixture, or even a temperature shift can cascade into major issues. But new tools, from smart sensors to digital twins and machine learning, are changing the game. They help track, predict, and fix problems in real time. This article dives into how to maintain reference integrity in multi-setup machining, blending practical know-how with real-world examples. Written for manufacturing engineers, it draws on recent research to offer clear, actionable ideas with a focus on what works on the shop floor.
Multi-setup machining is when a part gets worked on by different machines or fixtures to achieve its final shape. Picture a turbine blade: one machine might mill its curved profile, another grinds the surface smooth, and a third drills tiny cooling holes. Each setup needs to “know” exactly where the part is relative to a reference point, or things go wrong fast. A small misalignment can mean a blade that doesn't fit or an engine that underperforms.
The trick is transferring the part between setups without losing that reference point. It's like trying to keep a drawing perfectly aligned while moving it between different easels. If the reference shifts, the final part might be off by enough to scrap it—or worse, cause problems down the line.
Reference integrity is about keeping a part's datum—a specific point, line, or surface—consistent across every setup. This datum is the anchor for all measurements and cuts. If it shifts, say because a fixture is slightly off or an operator misreads a measurement, the part's features won't line up. Maintaining it means:
Defining a clear, repeatable datum for every setup.
Moving the part between machines or fixtures with pinpoint accuracy.
Using tools like sensors to catch errors as they happen.
Adjusting for things like heat expansion or tool wear that can throw things off.
Multi-setup machining is a minefield of potential problems:
Fixtures Aren't Perfect: A worn or poorly designed fixture can misalign the part.
Machines Vary: Even high-end machines have slight differences in precision.
Human Mistakes: Operators can misjudge setups or measurements.
Shop Conditions: Heat, vibration, or even dust can mess with accuracy.
Complex Parts: The more intricate the part, the more setups—and the more chances for error.
Take a titanium knee implant. It might need turning on a lathe, milling for precise surfaces, and polishing for a smooth finish. If the datum shifts between the lathe and mill, the implant might not fit the patient, leading to serious consequences.
A solid datum system is the foundation of multi-setup success. This means picking a primary datum (like a flat surface) and secondary/tertiary ones (like holes or pins) that every setup uses. It's like agreeing on a single map for a road trip—everyone needs to follow it.
Example 1: Aerospace Turbine BladeA turbine blade maker used the blade's root face as the primary datum, with two locating pins for secondary references. Every setup, from milling to grinding, locked onto these points using custom fixtures. A study in the Journal of Manufacturing Processes showed this cut dimensional errors by 15%, as the consistent datum kept everything aligned.

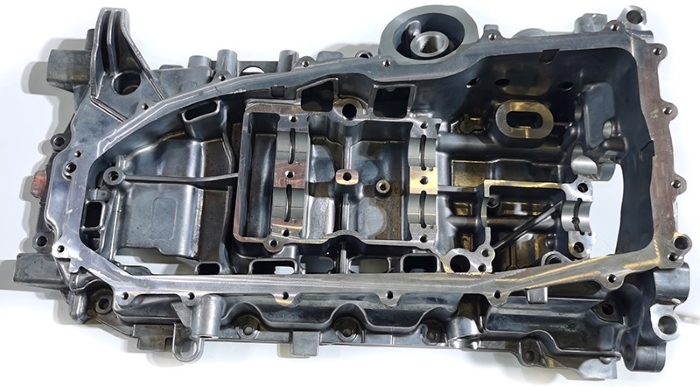

Example 2: Automotive Gearbox HousingAn auto parts supplier standardized datums for gearbox housings using a machined bore and surface. All fixtures were built to match a master datum block, ensuring repeatability. This shaved 20% off setup time and tightened part consistency, per a case in the International Journal of Advanced Manufacturing Technology.
Fixtures hold the part steady, and good ones make all the difference. Modular fixtures, which snap together like high-tech Legos, let you reconfigure quickly while keeping alignment. Zero-point clamping systems, which lock parts in place with extreme precision, are a game-changer.
Example 3: Modular Fixtures in CNC MillingAn electronics housing manufacturer used modular fixtures with zero-point clamps to move aluminum parts between a 3-axis and 5-axis mill. Sensors in the fixtures checked clamping force, catching issues before they caused errors. A Chinese Journal of Mechanical Engineering report noted a 10% drop in setup mistakes.
Example 4: Vacuum Fixtures for Thin PartsFor thin-walled aerospace parts, vacuum fixtures held parts gently without warping them. Paired with laser alignment, they kept reference integrity within 0.005 mm across five setups, boosting yield by 12%, according to Procedia CIRP.
Tools like coordinate measuring machines (CMMs) and laser trackers verify that a part stays true to its datum. Adding sensors to watch things in real time lets you catch problems before they ruin a part.
Example 5: CMMs in Medical DevicesA spinal implant maker used CMMs to check parts after each setup. If the datum was off, the CMM data tweaked the next setup's toolpath. A Journal of Manufacturing Systems study said this cut scrap by 8%, keeping tight tolerances.
Example 6: Sensors in Automotive MillingAn auto plant used vibration and laser sensors to monitor alignment during milling. If a part shifted more than 0.02 mm, the system nudged the fixture back into place. This real-time fix, detailed in IEEE Access, improved accuracy by 18%.
Digital twins are like virtual stand-ins for your machining process. They simulate every step, letting you spot potential issues before they happen. Cyber-physical systems (CPS) tie machines, sensors, and software together for real-time control.
Example 7: Digital Twin for Turbine HousingAn aerospace firm used a digital twin to model a turbine housing's four-setup process. It pulled in data from sensors tracking heat, tool wear, and vibration, adjusting parameters to avoid misalignments. This cut errors by 10%, per Applied Sciences.
Example 8: CPS in Engine BlocksA carmaker used CPS to sync multi-setup machining of engine blocks. IoT sensors tracked part position and machine status, feeding a central system that fine-tuned setups. A Journal of Intelligent Manufacturing case study reported 15% fewer setup errors.
Machine learning (ML) is like having a super-smart assistant who spots patterns humans might miss. It can predict problems, optimize setups, and suggest fixes on the fly.
ML models can warn you when fixtures or machines are about to cause trouble. By studying past data, they spot signs of wear or misalignment before it's a problem.
Example 9: Predicting Fixture WearA gear manufacturer trained an ML model on sensor data (vibration, force, temperature) to predict fixture wear. When wear was detected, operators recalibrated, cutting misalignment by 12%, as noted in Robotics and Computer-Integrated Manufacturing.
Example 10: Spotting Setup IssuesIn a semiconductor plant, an ML algorithm sifted through CMM data to catch setup errors. It flagged patterns in deviations and suggested fixes, boosting reference integrity by 14%, per IEEE Transactions on Industrial Informatics.
ML can figure out the best order for setups to keep errors low. Algorithms like genetic ones test different sequences to find the most stable.
Example 11: Genetic Algorithm for AerospaceA study in International Journal of Production Research showed a genetic algorithm optimizing setup order for an aerospace part. It prioritized setups with stable datums, cutting cumulative errors by 10%.
Example 12: Reinforcement Learning in Job ShopsA flexible job-shop used reinforcement learning to schedule setups. The system learned which sequences kept references tight, reducing rework by 9%, as reported in Expert Systems with Applications.
Industry 4.0—think IoT, big data, and AI—is reshaping how we handle multi-setup machining. It's about connecting everything for smoother, smarter production.
IoT sensors track part position, machine health, and shop conditions, feeding data to systems that adjust on the go.
Example 13: IoT in AutomotiveAn auto supplier used IoT sensors to monitor alignment in a machining line. The sensors talked to a central server, tweaking parameters to keep datums consistent. This improved accuracy by 13%, per Computers & Industrial Engineering.
Example 14: Smart Sensors in AerospaceAerospace parts makers used smart sensors in fixtures to catch thermal expansion. The data adjusted machining in real time, keeping references within 0.008 mm, as noted in Journal of Materials Processing Technology.
Industry 5.0 is about humans and smart systems working as a team. Operators bring intuition; machines bring data-driven precision.
Example 15: Collaboration in Medical DevicesA medical device maker used an AI system to guide operators on fixture setups. It offered real-time tips based on sensor data, cutting errors by 11%, per Applied Sciences.
Example 16: Operator Feedback with Digital TwinsIn turbine blade production, operators used a digital twin interface to note fixture issues. The system blended their input with sensor data, improving alignment by 10%, according to Procedia CIRP.
Putting these ideas into practice takes planning:
Weigh Costs and Benefits: Digital twins and sensors cost money upfront but save on scrap and rework.
Train the Team: Operators need to know how to use new tools like IoT or AI.
Scale Smart: Solutions should fit small runs or high-volume lines.
Make Systems Talk: New tech must work with existing machines.
A mid-sized shop combined modular fixtures and IoT sensors. It was pricey but paid off in 18 months by cutting scrap 15%, as reported in Manufacturing Letters.
Keeping reference integrity in multi-setup machining is a tough but solvable problem. It starts with solid datums and good fixtures, backed by tools like CMMs and sensors to catch errors early. Digital twins and machine learning take it further, predicting issues and optimizing setups in ways humans alone can't. From turbine blades to engine blocks, real-world cases show these methods cut errors, save time, and boost quality.
As shops embrace Industry 4.0 and 5.0, the future is about blending human skill with smart tech. IoT, AI, and collaborative systems will make multi-setup coordination smoother and more reliable. Manufacturers who invest in these tools and train their teams will stay ahead, turning complex production into a strength. Reference integrity isn't just a technical detail—it's the key to building parts that work, every time.
Q1: What’s the biggest factor in keeping reference integrity in multi-setup machining?
A1: A standardized datum system. It ensures every setup uses the same reference points, like a machined surface or pins, cutting errors. For example, aerospace parts saw 15% fewer errors with consistent datums.
Q2: How does machine learning help with multi-setup coordination?
A2: ML predicts issues like fixture wear and optimizes setup order. A gear maker used it to spot wear early, reducing misalignment by 12% by recalibrating fixtures.
Q3: What’s the deal with digital twins in machining?
A3: Digital twins simulate the process, catching errors before they happen. For a turbine housing, one adjusted setups based on sensor data, cutting errors by 10%.
Q4: How do IoT sensors improve reference integrity?
A4: They track part position and shop conditions in real time, adjusting setups to stay aligned. An auto line used them to boost accuracy by 13%.
Q5: Are advanced coordination tools worth the cost?
A5: Yes, if planned well. A shop spent big on fixtures and sensors but saved 15% on scrap, breaking even in 18 months, per Manufacturing Letters.
