● The Mechanics of Tool Wear in Machining
● Effects on Dimensional Accuracy

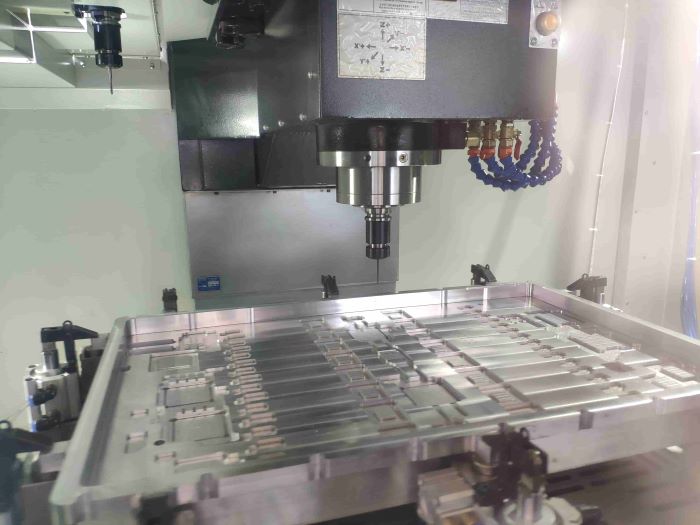

In the daily grind of a manufacturing shop, where CNC machines hum and metal chips pile up, tool wear is an ever-present challenge. It starts subtly—a slight dulling of the cutting edge, a faint change in the sound of the cut. But over time, this wear creeps into the quality of the parts, roughening surfaces and nudging dimensions out of tolerance. For manufacturing engineers, understanding how progressive tool wear impacts surface quality and dimensional accuracy is critical to maintaining precision and avoiding costly rework. This article dives into the mechanics of wear, its effects on machined parts, and practical strategies to mitigate its impact, drawing from real-world studies and shop-floor examples. We'll explore turning tough alloys, milling composites, and drilling deep holes, offering insights you can apply to your own operations to keep parts within spec and finishes smooth.
Tool wear is the gradual degradation of a cutting tool's edge and material as it battles friction, heat, and mechanical stress during machining. It's a relentless process, driven by the interaction between the tool and workpiece, and it evolves in predictable stages that every machinist needs to recognize.
Tool wear progresses through three main phases: initial wear, steady-state wear, and accelerated or catastrophic wear. Initial wear occurs during the first few cuts, as the fresh edge breaks in, often showing micro-chipping or slight abrasion. Steady-state wear follows, where consistent abrasion or diffusion erodes the tool at a predictable rate. If unchecked, wear accelerates, leading to chipping, cracking, or complete failure.
Consider turning an aluminum matrix composite reinforced with 45% silicon carbide (Al2124SiCp). The SiC particles act like abrasive grit, rapidly wearing the flank face of uncoated cubic boron nitride (CBN) tools. In experiments at cutting speeds of 40-100 m/min, flank wear reached 0.2 mm within a few passes, with adhesive material buildup on the rake face disrupting chip flow. Similarly, in hard turning of AISI 4140 steel (63 HRC) with multilayer-coated carbide inserts (TiCN/Al2O3/TiN), high temperatures around 1000°C triggered crater wear on the rake face, while abrasion scored the flank, reaching 0.3 mm depth after 90 minutes of cutting.
Several mechanisms drive tool wear, each leaving distinct marks. Abrasion occurs when hard workpiece inclusions, like SiC in composites, grind grooves into the tool, increasing cutting forces by up to 20%. Adhesion involves workpiece material welding to the tool under heat and pressure, then shearing off unevenly, causing jagged edges or built-up edge (BUE) formation. Diffusion, prominent in high-temperature cuts, dissolves tool binders like cobalt, weakening the structure. Oxidation, meanwhile, degrades coatings at the chip-tool interface, exposing the substrate.
In deep-hole drilling of SA-5083 low-carbon steel for pressure vessels, guide block wear concentrated at the hole entry due to misalignment and high thrust forces. At feeds of 0.04-0.12 mm/rev, SEM analysis revealed carbide particle pullout, with wear scars pushing hole diameters out by 0.05 mm over 800 mm depths. In another case, milling carbon fiber composites showed fiber pullout and delamination as tool edges blunted, with wear accelerating due to the composite's abrasive nature.
Surface quality, defined by parameters like average roughness (Ra) or peak-to-valley height (Rz), suffers as tool wear progresses. A worn tool loses its ability to shear cleanly, instead rubbing or plowing the workpiece, leaving chatter marks, waviness, or smeared surfaces.
Ra measures average surface deviations, but Rz better captures extreme peaks and valleys that affect performance. As flank wear increases, the tool's clearance angle effectively reduces, causing more rubbing and vibration. This can push Ra from 0.5 μm with a fresh tool to over 2.0 μm at 0.15 mm wear.
In turning Al2124SiCp with polycrystalline diamond (PCD) tools, Ra stayed below 1.2 μm at 100 m/min, thanks to PCD's resistance to abrasion. However, with uncoated CBN tools, Ra climbed to 3.5 μm under the same conditions, with SiC particles leaving micro-pits visible under a profilometer. Higher depths of cut (0.3 mm) increased tool load, boosting Rz by 40% as wear accelerated.
During finish turning of Inconel 718 for turbine blades, a fresh tool delivered a smooth 0.8 μm Ra. After 30 minutes at 80 m/min and 0.1 mm/rev feed, crater wear rounded the tool nose, introducing waviness tied to spindle speed (e.g., 0.5 mm waves at 1500 RPM). This stemmed from adhesion and diffusion, as nickel alloys bonded to and dissolved tool material.
In hard turning AISI 4340 steel, Taguchi-optimized parameters (150 m/min, 0.1 mm/rev) kept initial Ra at 0.6 μm. But at a higher feed of 0.3 mm/rev, wear contributed 25% to roughness (per ANOVA), pushing Ra to 2.8 μm. Multilayer coatings delayed diffusion, but abrasive grooves from carbide inclusions reached 10-20 μm deep.
Milling aluminum for automotive dies showed similar trends. Progressive flank wear on high-speed steel end mills widened flutes by 0.02 mm after removing 200 cm³, increasing Rz from 1.0 to 4.5 μm. This also introduced subsurface white layers, prone to fatigue cracking. In carbon fiber milling, worn tools caused delamination, with defects extending 50-100 μm deep, as confirmed by SEM imaging.
Dimensional accuracy is the backbone of precision machining, and tool wear undermines it by altering cutting dynamics, increasing forces, and introducing thermal and vibrational errors.
Flank wear extends the tool-workpiece contact zone, raising radial forces that deflect the tool or workpiece. Heat from friction causes uneven thermal expansion, often enlarging diameters or creating tapers. Vibrations from a dull edge amplify lobing or chatter, compounding errors over multiple passes.
In BTA deep-hole drilling of SA-5083, guide wear at the hole entry caused diameter deviations from 17.75 mm to 17.82 mm over 800 mm at 0.12 mm/rev feed. Roundness errors reached 0.03 mm, with perpendicularity drifting 0.5°, driven by a 25% thrust force increase.
Turning Ti-6Al-4V for medical implants with PCD tools initially held diameters to ±5 μm at 900 m/min. After 0.2 mm flank wear, thermal expansion from adhesive layers pushed diameters 15 μm oversize, with 20 μm barreling over 100 mm lengths, measured via laser trackers.
Comparing wiper and conventional inserts in AISI 4340 turning, wiper geometry maintained ±10 μm accuracy over 500 mm cuts at 82 m/min, versus 25 μm for conventional inserts due to edge chipping. Wear-induced taper reached 0.015 mm after 400 mm with conventional tools, as deflection increased.
In milling tool steel slots for mold inserts, progressive wear on ball-nose tools reduced slot depth by 0.05 mm per side after 50 passes at 200 m/min. CMM scans confirmed 0.1 mm form errors, tied to chatter frequencies around 500 Hz, as flute blunting altered the helix angle.
Controlling tool wear's impact requires a mix of smart tool selection, optimized parameters, and proactive monitoring. These strategies can extend tool life and maintain part quality.
PCD tools excel in non-ferrous and composite machining, resisting abrasion in Al2124SiCp turning to keep Ra below 1.0 μm and diameters within 10 μm. For ferrous alloys, multilayer CVD-coated carbides (TiCN/Al2O3/TiN) reduce crater wear, lasting 60 minutes in AISI 4140 versus 30 for uncoated tools. Diamond-like carbon (DLC) coatings cut adhesion by 50% in dry machining, while TiAlN handles high-temperature cuts up to 1000°C.
Lower feeds (0.05-0.1 mm/rev) reduce tool load, preserving edge sharpness. In AISI 4340 turning, dropping feed from 0.3 to 0.1 mm/rev halved roughness increases. Speeds of 100-120 m/min balance surface finish and wear, while shallow depths (0.1-0.2 mm) cut forces by 30%, minimizing deflection. Coolants like minimum quantity lubrication (MQL) with vegetable oil reduced adhesion 25% in composite milling, maintaining Ra below 1.2 μm.
Acoustic emission sensors detect wear through signal spikes at 200-500 kHz, flagging 0.05 mm flank wear thresholds. In AISI 4140 turning, a 10 dB sound increase predicted a 20% roughness rise. Power monitoring tracks force increases, with a 15% spike indicating 0.02 mm dimensional drift. Adaptive CNC systems adjust speeds based on torque, extending tool life 40% in titanium while holding ±5 μm accuracy.
Innovations like laser-assisted machining soften workpieces, reducing wear 50% in superalloys and improving surface integrity with compressive stresses up to -500 MPa. Additively manufactured tools with graded structures promise doubled lifespans. AI-driven models predict wear from sensor data, optimizing parameters in real time. Vibration-damped holders in composite machining tighten Rz to 0.5 μm, while biodegradable lubricants in hybrid processes cut wear and environmental impact.
Progressive tool wear is a machinist's silent adversary, eroding surface quality and dimensional precision with every pass. From abrasive scars in Al2124SiCp to diffusive craters in AISI 4140, wear drives roughness from 0.5 μm to over 3.0 μm and dimensions off by 50 μm or more. Real-world cases—PCD tools excelling in composites, wiper inserts stabilizing hard turning—show that informed choices in tools, parameters, and monitoring can curb these effects. By selecting robust coatings, fine-tuning feeds and speeds, and leveraging sensors, manufacturers can maintain tight tolerances and smooth finishes. The next time you hear a shift in your machine's hum, check the edge—it's your first clue to act. With these strategies, you can turn wear's challenges into opportunities for precision and efficiency.
Q: How soon does tool wear noticeably affect surface roughness in turning?
A: Flank wear around 0.1 mm starts pushing Ra up 20-30% in alloys like AISI 4140. At 0.15 mm, Ra often exceeds 1.0 μm, especially with coated carbides at 100 m/min.
Q: What's the best parameter to adjust in deep-hole drilling to minimize dimensional errors from wear?
A: Reducing feed to 0.04-0.06 mm/rev cuts diameter errors 40% over 500 mm in SA-5083, improving pilot centering more than speed adjustments.
Q: Do wiper inserts trade tool life for better surface quality?
A: Wiper inserts match conventional tool life in AISI 4340 up to 400 mm cuts, with 10% higher energy use but 50% better Ra, thanks to stable geometry.
Q: How does coolant choice affect wear in composite machining?
A: MQL with esters reduces adhesion 30% in Al-SiC turning, extending PCD tool life and keeping Ra under 1.2 μm, while dry machining accelerates abrasion.
Q: Can monitoring predict dimensional issues before they violate tolerances?
A: Acoustic sensors catch 5-8 dB spikes in AISI 4140 turning, signaling 0.02 mm drift 10-15 minutes before it hits specs, allowing feed adjustments.
A novel simultaneous monitoring method for surface roughness and tool wear based on VMX intelligent software development
Journal: Scientific Reports
Publication Date: 2025-03-08
Key Findings: Novel method for simultaneous monitoring of tool wear and surface roughness in machining processes achieved high prediction accuracy through integration of vibration, current, and force signals with neural network modeling.
Methods: Experimental investigation using multi-sensor data collection during end milling with 63 measurements across 816 tool strokes, employing time-domain and frequency-domain feature extraction with neural network prediction models.
Citation: Liu et al., 2025, pp. 1-15
https://www.nature.com/articles/s41598-025-92178-3
Fundamental Investigation into Tool Wear and Surface Quality in High-Speed Machining of Ti6Al4V Alloy
Journal: Materials
Publication Date: 2021-11-22
Key Findings: Crater wear increased by over 150% and flank wear increased by 40% when cutting length increased from 40 to 120 mm, while surface roughness increased by 50%, demonstrating how tool wear progression leads to deteriorated surface quality.
Methods: Systematic trials using carbide inserts on Ti6Al4V with controlled cutting parameters, measuring crater wear, flank wear, and surface roughness through microscopic analysis and profilometry.
Citation: Abbas et al., 2021, pp. 1-19
https://pmc.ncbi.nlm.nih.gov/articles/PMC8658211/
Effect of progressive tool wear on the functional surfaces machined by micro milling
Journal: Procedia CIRP
Publication Date: 2020
Key Findings: Progressive tool wear during micro end milling significantly affects surface quality through changes in cutting edge geometry, leading to deteriorated surface integrity, increased burr formation, and compromised functionality of machined surfaces.
Methods: Experimental study using five different TiAlN coated carbide micro end mills with 500 μm diameter, examining chip formation, burr formation and surface quality under different wear conditions across cutting distances from 64 to 320 cm.
Citation: Davoudinejad et al., 2020, pp. 159-163
https://www.sciencedirect.com/science/article/pii/S2212827120301323
