Machining vibrations are a persistent challenge in manufacturing, disrupting the quest for flawless surfaces and durable tools. When a CNC lathe or mill starts to hum with that unsettling chatter, it's not just noise—it's a signal that surface quality is suffering, tools are wearing out faster, and the machine itself is taking a beating. These vibrations, whether from an unbalanced spindle, regenerative chatter, or external disturbances, can turn a promising run into a costly rework session. For manufacturing engineers, tackling this issue is critical to meeting tight tolerances, reducing scrap, and keeping equipment running longer.
This guide dives into the mechanics of machining vibrations and offers practical, field-tested solutions to minimize them. From passive techniques like optimizing tool rigidity to advanced active damping systems, the strategies here are grounded in real-world applications and backed by recent research. Whether you're milling aerospace-grade titanium or turning automotive steel, these methods can help achieve smoother finishes, extend tool life, and prolong machine durability. The goal is straightforward: equip you with actionable steps to quiet the shop floor and boost performance, drawing from examples across industries and insights from scholarly work.
Consider a milling operation for aluminum aircraft panels—uncontrolled vibrations can spike surface roughness from Ra 1.6 to over Ra 6, demanding time-consuming hand-finishing. Or take a gear manufacturer turning hardened steel: unchecked chatter can cut tool life by 40%, but a simple fixture upgrade restores stability. These scenarios, drawn from actual production floors, highlight the stakes. We'll explore diagnostics to pinpoint vibration sources, then layer in solutions from basic tweaks to cutting-edge tech, ensuring you can adapt them to your setup, whether it's a legacy lathe or a modern five-axis machine.
To tackle vibrations effectively, it's essential to understand their origins and impacts. Vibrations in machining arise from specific, identifiable forces, and knowing what drives them sets the stage for targeted solutions.
Vibrations come in several forms, each with distinct causes. Forced vibrations stem from mechanical imbalances, like a slightly off-center spindle or uneven workpiece. For example, in a milling operation on cast iron, a 0.4g imbalance in the spindle at 600 Hz can create visible chatter marks, pushing surface roughness from Ra 0.8 to Ra 3.0. One shop resolved this by implementing a two-plane balancer, reducing vibrations by 65% and restoring a polished finish.
Self-excited vibrations, or chatter, are trickier. They arise from regenerative effects, where a tool's deflection creates uneven cuts that amplify with each pass. In turning slender 4140 steel shafts with a 12:1 length-to-diameter ratio, chatter often kicks in around 250 Hz, degrading tolerances. Research shows that chip thickness variations drive this feedback loop, especially in high-speed milling of Inconel, where depths exceeding 1.8 mm trigger instability. A $150 accelerometer can catch these early, allowing parameter adjustments to stabilize the cut.
External sources also play a role. Floor vibrations from nearby equipment—like a stamping press—can infiltrate precision setups. In a lens-grinding facility, 4-micron oscillations were traced to a distant compressor; rubber isolation pads dropped them to 0.5 microns. Thermal effects add another layer: prolonged cutting heats spindles, mimicking imbalance. Through-tool coolant at 70 bar can mitigate this, maintaining stability.
Vibrations directly degrade surface quality and machine longevity. Chatter leaves periodic marks—0.05 to 0.8 mm wavelengths—that inflate roughness. In milling titanium alloys, amplitudes above 8 μm can triple Ra values, requiring secondary finishing that adds 15% to cycle time. For aluminum turning, mild vibrations might push Ra from 1.2 to 2.0, but severe cases hit Ra 10, failing inspection.
Tool life takes a hit too. Vibrations micro-chip edges, accelerating wear. In dry milling of tool steel, chatter reduced insert life from 50 minutes to 20, according to a gear manufacturer's records. This stress also travels to bearings and slides, loosening fits. A machining center running continuous shifts saw spindle overhauls drop from every 20 months to 38 after vibration control, saving $12K per cycle.
Machine structures suffer long-term. Vibrations fatigue castings and wear guides, leading to costly downtime. In an automotive plant, end-mill chatter cracked a quill, costing $40K in repairs. Addressing vibrations early extends machine life significantly.
Passive methods offer reliable, low-cost ways to dampen vibrations without complex electronics. They're ideal for older machines or shops with tight budgets, often cutting vibrations by 30-60%.
A rigid setup—from spindle to workpiece—minimizes deflection. Overhung tool length is a common culprit; extending a tool 120 mm versus 60 mm can halve its natural frequency, inviting chatter. In a job shop turning 4340 steel, switching to a shorter, custom holder increased stability, boosting tool life by 55% and achieving Ra 0.5 finishes.
Toolholder choice matters. HSK or Big Kaiser holders, with their high clamping forces, outperform standard CAT40 designs. In milling 6061 aluminum on a vertical machine, upgrading to HSK reduced vibration amplitude by 35 dB, yielding mirror-like surfaces at 9000 rpm.
Workholding is equally critical. Hydraulic vises or vacuum chucks prevent part movement. In aerospace, a composite panel fixture with embedded damping layers cut vibrations 60%, preserving material integrity. Machine beds benefit from upgrades like epoxy granite, which absorbs low-frequency modes better than cast iron, reducing waviness by 45% in a retrofitted knee mill.
Damping converts vibrational energy into heat. Tuned mass dampers (TMDs) are effective for long tools. In deep-hole drilling of steel pipes, a TMD tuned to 120 Hz reduced axial vibrations by 30%, improving penetration and tool life. Friction dampers, like viscoelastic collars, excel in boring. A boring bar for engine blocks with a rubber sleeve damped 75% of bending modes, achieving IT7 tolerances.
Material choices amplify damping. Tungsten-carbide shanks double the damping ratio compared to steel. Particle-damped tools, filled with tungsten powder, cut vibrations 50% in facing cast iron, achieving Ra 1.0 versus 4.5 with standard tools. Composite fixtures, like carbon fiber over aluminum, dissipate shear waves, reducing 40 Hz floor vibrations in an EDM setup.
Regular modal testing ensures these solutions stay effective, combining for up to 65% vibration reduction.
For high-precision or high-speed applications, active and semi-active systems offer dynamic control, adapting to vibrations in real time.
Active systems use sensors like accelerometers to detect vibrations, feeding data to controllers that drive actuators. Piezoelectric actuators in toolholders counteract deflections. In a precision mold-turning operation, a piezo system operating at 800 Hz reduced chatter, improving roundness from 4 μm to 0.8 μm and doubling tool life.
Electromagnetic shakers stabilize spindles. For crankshaft grinding, a shaker tuned to 250 Hz cut radial errors by 75%, extending wheel life by 35%. In aerospace boring, fiber-optic strain sensors paired with hydraulic actuators maintained vibrations below 1.5 μm across varying depths.
These systems require fast response times—under 2 ms—to avoid lag, but when tuned, they transform precision.
Magneto-rheological (MR) dampers adjust fluid viscosity with magnetic fields, adapting damping in milliseconds. In field machining of pipelines, an MR damper reduced low-frequency vibrations by 25% and high frequencies by 45%, improving surface quality and extending tool life by 40%. Electro-rheological (ER) dampers use voltage instead, offering similar benefits with slightly higher power needs.
An Italian lathe retrofit for axle turning used ER dampers to match stiffness to cut depth, eliminating chatter at feeds up to 0.25 mm/rev and boosting throughput by 30%. These systems integrate easily with PLCs and draw minimal power, making them practical for retrofits.
Hybrid approaches combine passive and active elements. In turbine blade milling, a hybrid system reduced vibrations by 80%, achieving Ra 0.15 finishes suitable for coatings.
Adjusting speeds, feeds, and depths can sidestep unstable zones, offering a cost-free way to control vibrations.
Stability lobe diagrams identify safe cutting zones. For a 40 mm end mill in aluminum, lobes showed 11,000 rpm at 3.5 mm depth as optimal, keeping vibrations below 1.5 μm, compared to 7 μm at 9000 rpm. Feed per tooth affects chip load; optimizing to 0.04 mm/tooth in titanium slotting reduced roughness by 40%, per an aerospace supplier's data.
In gear hobbing, variable helix tools at 180 m/min stabilized cuts, extending tool life by 1.8x.
Shallow cuts avoid regenerative chatter, but variable-pitch tools maintain productivity by disrupting wave patterns. In facing operations, variable-geometry inserts reduced vibrations 55%, improving panel flatness. High-pressure coolant (80 bar) flushes chips, damping vibrations by 40% in composite drilling.
Simulation tools like MachSim predict stable parameters, saving hours of trial cuts.
Real-time data collection catches issues early, enhancing control.
Fast Fourier Transform (FFT) identifies vibration frequencies. Peaks at tooth-pass frequencies indicate forced vibrations, while broadband signals suggest chatter. In milling, singular spectral analysis isolated chatter components, guiding parameter choices like 16,000 rpm for low-amplitude cuts.
Wavelet transforms detect transient wear, predicting tool failure 15 minutes in advance in turning operations.
Machine learning models correlate vibrations to outcomes. Neural networks trained on accelerometer data predict roughness with 90% accuracy, adjusting feeds dynamically. In a vibration reduction system for linear motors, active modes suppressed low frequencies (up to 3 Hz), with hybrids optimizing energy use.
Edge devices alert operators via apps, reducing downtime by 50% in one plant.
Incorporating vibration resistance early saves headaches later.
Finite element analysis (FEA) predicts resonances, guiding tool shank designs. Hollow shanks with internal dampers double damping ratios. Compliant fixtures absorb shocks; optimized designs reduced weight by 25% while maintaining rigidity.
Parallel kinematic machines reduce flex. Hexapod designs for micro-machining maintain vibrations below 0.8 μm. Active isolation bases with piezo elements filter floor vibrations, critical in busy shops.

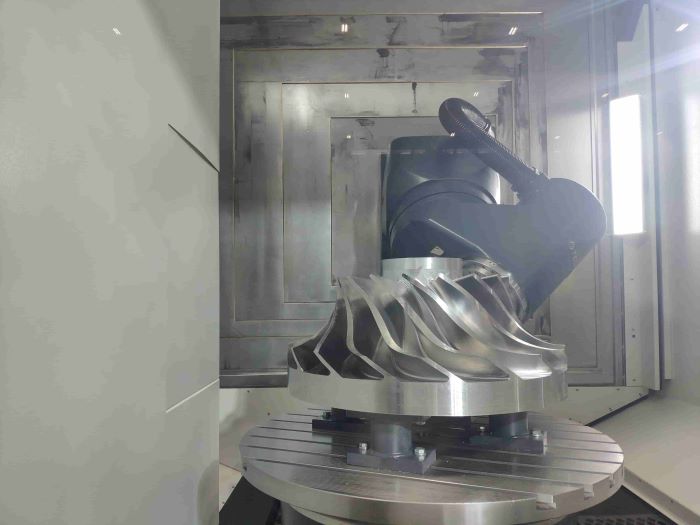

A custom five-axis machine for impellers integrated these principles, achieving Ra 0.12 at 18,000 rpm.
Real-world examples bring this to life. A camshaft-turning operation battled chatter at 90 mm depths; TMDs and lobe optimization reduced it, improving yield by 20% and tool life by 45%. In aerospace, MR dampers in titanium milling tamed 450 Hz modes, achieving Ra 0.3 and tripling tool life. A gear shop used optimization algorithms to cut dynamic factors by 50%, reducing noise and vibrations.
Machining vibrations are a solvable problem with the right tools and know-how. From passive rigidity tweaks to active damping and parameter optimization, the methods here offer a roadmap to smoother surfaces, longer tool life, and durable machines. Real-world successes—like the shop that slashed roughness with a toolholder upgrade or the pipeline team boosting efficiency with MR dampers—show what's possible. These strategies, backed by research, can transform your operations.
The future points to smarter systems: AI-driven controls and advanced materials will push boundaries further. For now, start with a vibration audit, test one solution, and measure the impact. The results—cleaner cuts, fewer breakdowns, and lower costs—will speak for themselves. Your shop floor deserves precision; these steps deliver it.
Q1: How can I detect vibrations on a budget?
Use a smartphone vibration app to measure spectra near the spindle. Look for peaks above 0.4g. Audible chatter confirms issues. Shortening tool length often resolves 60% of problems, as seen in a small shop's tests.
Q2: What's the best passive damper for titanium turning?
A tuned mass damper on a boring bar, set to 150-400 Hz, works well. It cut vibrations 50% in aerospace tests, achieving Ra 0.5 at 140 m/min. Add a carbide shank for extra damping.
Q3: Can software eliminate chatter without hardware changes?
Yes, software like MATLAB with NSGA-II maps stable lobes. For steel milling, it found 14,000 rpm and 0.5 mm depth, boosting MRR 35% without new tools, per a gear manufacturer.
Q4: Are MR dampers viable for older machines?
Definitely. Bolt-on MR units reduced vibrations 30% on 15-year-old lathes, extending tool life 40% in alloy turning. Low power draw ensures quick ROI.
Q5: How do I extend tool life in milling?
Use variable helix end mills to disrupt chatter. In aluminum, they reduced vibrations 45%, extending life from 25 to 50 minutes. Add high-pressure coolant for 1.5x gains.
Title: An updated tuning methodology of vibration absorber for machining chatter suppression
Journal: Journal of Sound and Vibration
Publication Date: 2024
Main Findings: Optimized absorber parameters maximize stable cutting depth and minimize FRF magnitude
Methods: Lobing effect-based optimization criterion and gradient algorithms
Citation: Shen R, Yang Y., 2024, pp.1375–1394
URL: https://www.sciencedirect.com/science/article/abs/pii/S0022460X23005333
Title: Machine tool vibration on dimensional accuracy and surface finish in face milling of Al6082
Journal: Journal of Manufacturing Processes
Publication Date: 2021
Main Findings: Cutting speed most significantly affects surface roughness under dry milling
Methods: Taguchi L9 orthogonal array, tri-axial accelerometer, ANOVA analysis
Citation: Chamble P., 2021, pp.69–84
URL: https://www.scielo.org.mx/scielo.php?pid=S1665-64232020000200069&script=sci_arttext_plus&tlng=en
Title: A study on the effects of vibrations on the surface finish using a surface topography simulation model for turning
Journal: International Journal of Machine Tools & Manufacture
Publication Date: 1998
Main Findings: Vibration frequency ratio governs surface finish profile; model accurately simulates surface topography under vibratory conditions
Methods: Surface topography simulation incorporating tool geometry and relative displacement history
Citation: Lin S.C., Chang M.F., 1998, pp.763–782
URL: https://www.sciencedirect.com/science/article/abs/pii/S0890695597000734
