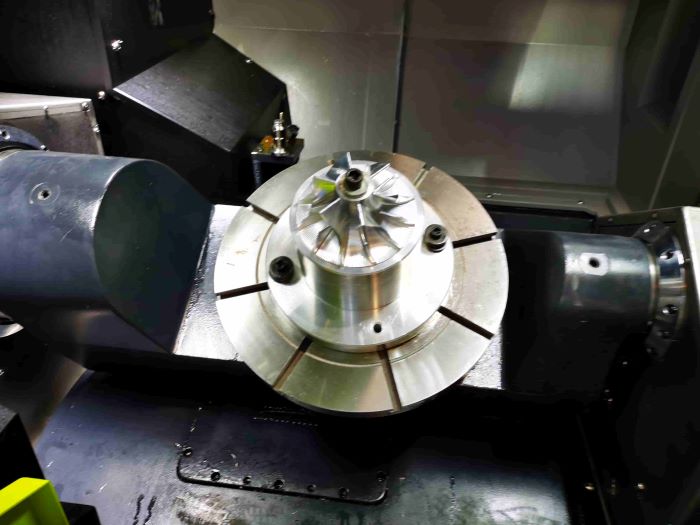

In any production shop running CNC machines, tool life directly affects cost per part, spindle uptime, and overall profitability. One of the largest uncontrolled variables that shortens insert and end-mill life is how the material actually flows and forms chips during the cut. When chips are long and stringy, they rub against the rake face, pack into flutes, or re-cut themselves, all of which generate extra heat and mechanical load. When chips break cleanly and evacuate quickly, cutting temperatures drop, flank wear slows, and tools last noticeably longer.
The connection between material flow behavior and tool durability has been studied for decades, yet many shops still treat chip control as a secondary concern. In practice, small changes in feed per-tooth feed, cutting speed, depth of cut, tool geometry, coolant delivery, or even insert grade can shift chip morphology from continuous ribbon to short comma-shaped segments. Those shifts routinely deliver 25–60 % longer tool life on the same workpiece material.
This article examines the mechanics behind those shifts, explains the main influencing factors, and shows concrete examples from daily production environments. The discussion draws on peer-reviewed work published in established manufacturing journals and combines it with observations collected from aerospace, automotive, oil & gas, and medical component machining.
During orthogonal cutting (the simplest model used in research), the workpiece material passes through three distinct zones: the primary shear zone ahead of the tool tip, the secondary deformation zone along the rake face, and the tertiary zone at the clearance face. In real 3D milling or turning the geometry is more complex, but the same zones still exist.
In the primary zone, the material is compressed until the shear stress exceeds the yield strength, then it slides along a shear plane at an angle φ (shear angle). Higher shear angles produce thinner chips and lower cutting forces. The secondary zone is dominated by sliding friction and plastic flow; friction coefficients here typically range from 0.3 to over 1.0 when adhesion occurs. Excessive secondary deformation is the main heat source and the primary driver of crater wear.
Chip type is the visible outcome of these internal mechanics:
Type I – continuous ribbon (ductile steels, aluminum at moderate speeds)
Type II – continuous with built-up edge (low-carbon steels below 80 m/min)
Type III – segmented or serrated (titanium alloys, nickel alloys, hardened steels)
Type IV – discontinuous fragments (cast iron, brass with lead additives)
Each type interacts differently with the tool and the machine guard space. Long ribbons increase contact length and heat, while short segments reduce it dramatically.
Cutting speed has the strongest effect on shear angle and friction coefficient. In AISI 1045 steel, raising speed from 100 to 250 m/min increased the shear angle from 22° to 38° and reduced cutting forces by roughly 25 %. The same speed increase in Ti-6Al-4V changed continuous chips into highly segmented ones with 60–70 % lower tool-chip contact length.
Feed per tooth (or feed per revolution in turning) determines undeformed chip thickness. Thicker chips absorb more energy per volume before fracturing, which favors segmentation in difficult materials. Many shops machining Inconel 718 deliberately run 0.20–0.30 mm/tooth instead of the “catalog” 0.10 mm/tooth to force chip breakage and gain 40–50 % longer insert life.
Depth of cut influences contact width more than thickness. Deep cuts (axial depth > 3× tool diameter in milling) create wide ribbons that are hard to curl or break. Modern trochoidal and high-efficiency milling paths keep depth moderate while removing metal quickly, precisely to maintain controllable chip width.
Tool geometry choices are equally powerful. Positive rake angles (8–15°) lower cutting forces and promote chip curl. Chip-breaker grooves or 3D molded topologies on modern inserts force the chip to hit an obstruction and fracture at predictable lengths. Variable-helix and variable-pitch end mills disturb the harmonic excitation that would otherwise produce long uniform chips.
Coolant pressure and direction matter more than most operators realize. Through-tool high-pressure coolant (70–100 bar) aimed directly at the rake face can shear off segments before they elongate, especially in stainless steels and superalloys.
A Midwest automotive tier-1 supplier was roughing transmission planet carriers in carburized 8620 steel. Original parameters (180 m/min, 0.12 mm/tooth, 4 mm radial depth) produced 150–200 mm long ribbons that packed into the tool changer and caused two crashes per shift. After switching to a 42°/45° variable-helix end mill with molded chip breakers and increasing feed to 0.22 mm/tooth and adding 80-bar through-tool coolant, chips shortened to 4–8 mm commas. Tool life rose from 60 to 185 minutes per corner, and crashes stopped completely.
An aerospace contractor machining Ti-6Al-4V landing-gear beams used to see 8–10 minutes of flute life on 25 mm roughing end mills. High-speed video revealed almost no segmentation at 55 m/min. Raising speed to 90 m/min and using a dedicated titanium-grade insert with deep chip-breaker gullets produced heavily segmented chips, reduced flank wear by 55 %, and extended life to 28–32 minutes per tool.
A medical implant manufacturer turning CoCrMo femoral stems suffered severe built-up edge at 70 m/min with conventional coated carbide. Switching to an uncoated fine-grain carbide with 17° rake and polished rake face, combined with vegetable-ester MQL at 40 ml/h, eliminated BUE entirely and raised parts-per-insert from 45 to 180.
Finite-element packages (AdvantEdge, DEFORM-3D, ThirdWave) now accurately predict chip curl radius, segmentation frequency, and temperature fields for given parameters. Running a quick 2D orthogonal simulation before a new job often reveals the “sweet spot” feed and speed combination in minutes instead of days of physical trials.
In-process monitoring using spindle power, acoustic emission, or even simple USB microscopes focused on the cutting zone allows real-time detection of chip-form changes. Several OEMs now embed these signals into the CNC macros that automatically up-feed when chips become too long or down-feed when vibration spikes.
Textured rake faces created by femtosecond laser or EDM produce micro-pockets that trap wear debris and lower friction. Tests on textured inserts in 316L stainless showed 35 % lower crater wear depth at identical conditions.
Cryogenic cooling and hybrid ultrasonic-assisted machining are gaining traction for superalloys. Both methods increase shear-band frequency and reduce secondary zone adhesion dramatically.
Chip formation is not an unavoidable by-product of machining; it is a controllable variable that has major influence on tool wear, surface integrity, and overall process economy. Production experience combined with decades of research shows that deliberate manipulation of cutting speed, feed rate, tool macro- and micro-geometry, and coolant strategy can reliably shift chips from long continuous strings to short, easily evacuated segments.
Shops that treat material flow dynamics as a core process parameter rather than an afterthought consistently achieve 30–60 % longer tool life, fewer unplanned stoppages, and lower cost per component. The tools to do this—better insert topologies, high-pressure coolant systems, variable-geometry end mills, and accessible simulation software—are already on the market and economically justified in most medium- to high-volume environments.
The next time a tool wears out prematurely or chips jam the guards, don't just index to the next corner—look first at how the material is flowing and which single parameter change will break those chips into manageable pieces. The difference is measured not in percentage points but in hours of unattended runtime and thousands of dollars saved per machine per year.
Q1: Why do my aluminum chips turn into long nests even at high spindle speeds?
A: Aluminum stays ductile across a wide temperature range. Increase feed per tooth above 0.20 mm and use a polished high-positive rake insert with sharp chip breaker to force curling and fracture.
Q2: Is it true that slower speeds always produce longer chips in titanium?
A: Yes below ~70 m/min titanium tends to form continuous ribbons. Above 80–90 m/min adiabatic shear bands appear and chips become segmented almost instantly.
Q3: How much tool life improvement can I realistically expect from high-pressure coolant alone?
A: In stainless and nickel alloys, 70–100 bar through-tool coolant typically adds 40–80 % more parts per insert by better chip segmentation and cooling.
Q4: Are variable helix end mills worth the extra cost for steel?
A: Absolutely in roughing operations with radial engagement >30 %. They suppress chatter and produce shorter, more uniform chips, often doubling corner life.
Q5: What is the quickest way to test chip control on an existing job?
A: Raise feed per tooth by 30–50 % for one part while keeping speed constant. In 9 out of 10 cases the chips will shorten dramatically with negligible effect on power draw.
