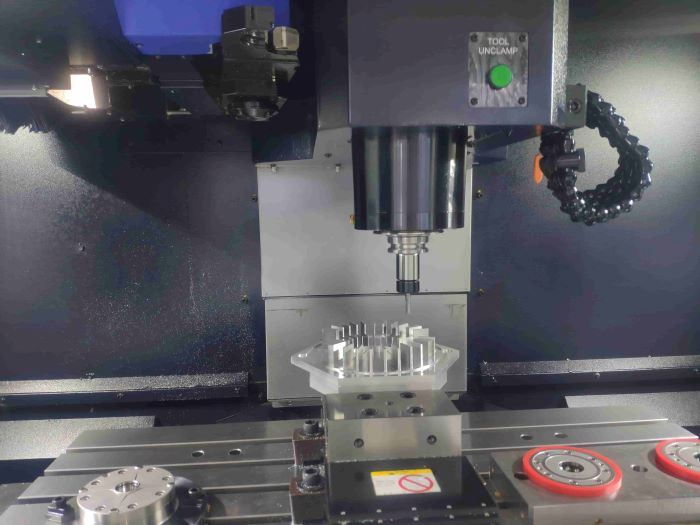

In precision CNC work, the difference between a good batch and a rejected one often comes down to a few tenths of a thousandth. Aerospace, medical, and defense parts rarely forgive scatter. When tolerances drop below 5 μm or surface finish must stay under Ra 0.4 μm across thousands of features, random fluctuations stop being acceptable noise and become expensive problems.
The goal is straightforward: every part that comes off the machine has to match the previous one within the print limits, not just on average, but every single time. Achieving that level of repeatability requires more than tight machines and sharp tools. It demands a systematic way to measure, understand, and shrink variation before it reaches the inspection report.
Over the past twenty years, statistical methods have moved from the quality office onto the shop floor. Control charts now run inside the CNC control, capability numbers are calculated in real time, and small designed experiments are completed in a single shift. The result is that many high-end shops have pushed Cpk values from barely above 1.0 to 1.67 or higher on features that used to be marginal.
This article walks through the practical statistical tools that actually work in a production environment: basic SPC for daily monitoring, capability analysis for proving process performance, design of experiments for systematic improvement, and the newer real-time integrations that are changing day-to-day operations. Each section includes examples taken from actual production floors.
Variation enters the process from dozens of places. Some are obvious, others hide until the data expose them.
Tool wear is usually the first suspect. A 0.001-inch increase in flank wear on a 6 mm end mill can shift a pocket dimension by 2–3 μm over a single part in aluminum and far more in stainless. Thermal growth ranks second. A 3 °C rise in spindle temperature lengthens the Z column enough to open a bore tolerance by 4–6 μm on a 400 mm tall part. Fixture repeatability, coolant concentration drift, material lot differences, and even barometric pressure changes on long horizontal bores all contribute measurable amounts.
A contract shop running 17-4PH landing-gear components discovered that morning versus afternoon shifts produced statistically different thread depths on the same machine. The cause turned out to be a 4 °C swing in shop temperature between the night cooling cycle and the day heat-up. Once they added a 30-minute machine warm-up routine, the shift-to-shift difference disappeared.
Another example comes from a medical manufacturer turning 316L hypotubes. Diameter variation followed a clear weekly cycle. Incoming tubing lots from the mill had hardness differences of 8–10 Rockwell B points. Segregating stock by lot and adjusting feed rates by 6 % between lots cut the standard deviation from 0.0008 in to 0.0003 in.
These cases show why histograms and simple run charts remain essential. Without plotting the data, the patterns stay invisible.
Most precision shops live and die by X-bar/R charts and Individuals charts. The rules are simple enough that machinists can interpret them without a statistics degree.
A typical setup samples five consecutive parts every hour, measures the critical dimension on a bench CMM or handheld gage, and plots the subgroup average and range. Upper and lower control limits sit at ±3 standard deviations from the overall mean. Points outside those limits or runs of eight points on one side of the centerline trigger an immediate reaction.
A Tier-1 aerospace supplier machining titanium blisks uses Individuals charts on airfoil thickness because parts are measured one at a time on a Leica tracker. They run the chart directly on the CNC screen using a custom Macro B program. When the moving range exceeds limit for three consecutive parts, the control stops the cycle and pages the setup lead. In practice this catches a broken insert or loose locating pin within minutes instead of after twenty bad airfoils.
Pre-control lines offer an even simpler alternative for high-volume work. Two green lines are placed at 75 % of the tolerance band. Operators check two consecutive parts every half hour. Both in the green zone → continue. One in yellow → check two more. Any red → stop and adjust. Shops turning hydraulic spools at 180 parts per hour often prefer pre-control because it requires almost no calculation.
Cp and Cpk assume normality. Many CNC features do not follow a perfect bell curve, especially surface finish, tool wear effects, and diameters affected by springback.
A bearing journal shop found Cp = 1.45 but actual fallout of 2 %. The diameter distribution had a sharp cutoff on the low side caused by occasional undersized bar stock. Switching to a Weibull-based capability index dropped the calculated Ppk to 1.1 and matched the real reject rate. They then added 100 % incoming diameter checks and brought Ppk back above 1.5.
For non-normal data, tolerance intervals give a more honest picture. A 95 %/99 % tolerance interval means you can be 95 % confident that 99 % of future parts will fall inside the interval. Medical and aerospace auditors increasingly ask for tolerance interval reports instead of just Cpk numbers.
Full factorial experiments sound academic until you see the payback.
A shop milling Inconel 718 turbine seals ran a 2-level, three-factor experiment in one eight-hour shift: spindle speed (12 000 and 16 000 rpm), feed per tooth (0.0015 and 0.0030 in), and depth of cut (0.010 and 0.020 in). Eight experimental runs plus three center points told them that depth of cut interacted strongly with feed – deeper cuts needed lower feed to keep flank wear under control. The optimized settings reduced dimensional variation by 38 % and extended tool life from 22 to 47 parts per edge.
Sequential experimentation works even better when downtime is expensive. Start with a fractional screening design to find the big effects, then fold into a response surface design to fine-tune. Modern software generates the run sheets and analyzes the data in minutes.
Newer machines close the loop automatically. Renishaw Sprint systems measure blisks on-machine after every five airfoils and feed offsets back to the control. Vibration sensors trigger feed reduction when chatter starts. Spindle load monitoring adjusts feed rate on the fly to keep cutting forces constant as the insert wears.
A European shop making orthopedic knee components combined spindle load monitoring with an EWMA chart running in the background. When the EWMA signal crossed a threshold, the control automatically dropped feed rate by 8 % for the next part. Dimensional standard deviation fell from 4.2 μm to 1.8 μm with no operator intervention.
Statistical methods have become standard equipment in precision CNC machining for the same reason gages and tool setters are standard – they pay for themselves quickly and repeatedly. Shops that treat variation as something to be measured and managed rather than hoped away consistently hit Cpk values above 1.67 on features that used to run at 1.0 or lower.
The path is the same everywhere: start with control charts to achieve stability, calculate honest capability numbers to prove performance, run small designed experiments to remove the largest sources of variation, and finally add real-time monitoring to hold the gains. Each step delivers measurable reduction in scrap, rework, and customer complaints.
The tools are mature, the software is affordable, and the payback is fast. The only remaining question is how tight you want your next batch to be.
