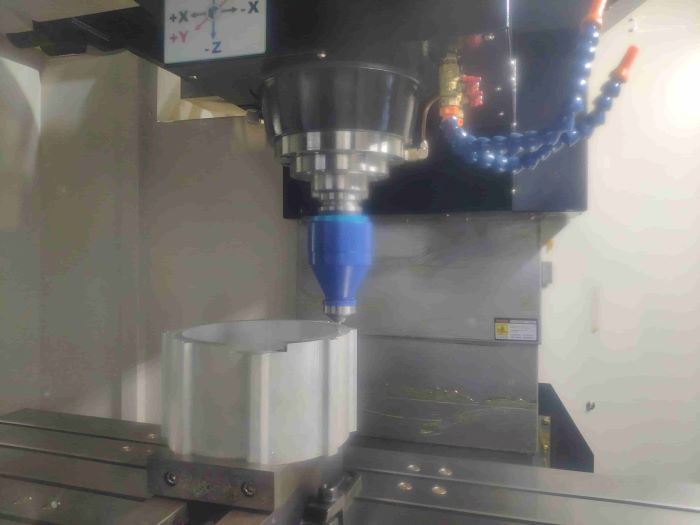

In any shop that runs CNC machines day in and day out, the goal is simple: every part that comes off the line has to match the last one within the tolerance band on the print. When that does not happen, the differences between parts start to add up, and suddenly a batch that looked good on paper turns into rework, scrap, or worse—a rejected lot from the customer. Repeatability is the property that keeps those differences small enough to stay inside the spec limits. It is not about hitting the exact nominal dimension every time (that is accuracy); it is about landing in the same spot whenever the machine is told to go there under the same conditions.
Part-to-part variation shows up in many forms: a bore that grows 8 microns over a 50-piece run, a flatness callout that drifts from 0.004 mm to 0.012 mm, or a surface finish that jumps from Ra 0.8 to Ra 1.6 between the first and the last piece. These shifts cost money, slow down delivery, and erode trust with customers who expect consistent quality. The good news is that most of the variation can be traced back to a handful of controllable sources, and once those sources are identified, process controls can keep them in check.
The controls themselves range from basic checklists and torque specs to live data collection and automatic compensation routines. Shops that treat repeatability as a core process rather than an afterthought routinely hold tolerances that others consider impossible. This article walks through the main causes of part-to-part variation, shows how statistical tools and measurement checks reveal the real culprits, and lays out practical steps that have worked on real shop floors. The examples come from turning centers, vertical mills, and multi-axis machines producing everything from hydraulic spools to turbine blade roots.
Repeatability is measured by running the same command many times and recording how close the machine returns to the same position. Standards like ISO 230-2 define it as the range of positions achieved after multiple approaches to a point from the same direction. A typical mid-range machining center might claim ±0.005 mm repeatability on a single axis, but real-world numbers often open up once thermal effects, tool deflection, and fixture shifts enter the picture.
In daily production, repeatability directly controls the spread of critical dimensions across a batch. A process that is repeatable but not accurate can still make good parts if the offset is adjusted correctly. A process that lacks repeatability, however, produces a cloud of points no matter how often the offset is tweaked.
Accuracy, repeatability, and resolution are separate ideas. Resolution is the smallest move the control can command—usually 0.001 mm or 0.0001 mm. Accuracy is the average error compared to a known standard. Repeatability is the tightness of the cluster around that average. Shops chasing tight tolerances care far more about repeatability than about absolute accuracy because offsets can be dialed in once the cluster is small enough.
Temperature changes rank as the single largest repeatability killer in most shops. A spindle running at 12,000 rpm can rise 15 °C in the first hour, lengthening the tool by 8–12 microns. Workpieces heat up from chip friction, and coolant temperature swings add another layer. Vibration from nearby presses or forklifts couples into the column and table, while worn linear guides introduce small stick-slip events that look random on a control chart.
Variation enters the process at every step from raw stock to final inspection. Sorting the sources into categories makes troubleshooting easier.
Ball-screw thermal growth, backlash in the drive train, and spindle runout all contribute measurable amounts. A 500 mm ball screw that warms 10 °C lengthens roughly 0.06 mm—enough to push a ±0.02 mm tolerance into the red. Backlash that is not fully compensated shows up as oversize features when the axis reverses direction. Spindle TIR of 0.003 mm at the gage line becomes 0.006 mm at a 100 mm stick-out, doubling the error on diameter.
Geometric errors—straightness, squareness, and perpendicularity—compound over long travels. A 0.015 mm straightness error on the Y axis of a bridge mill turns into tapered walls on tall parts.
Carbide inserts lose 3–5 microns of edge radius after cutting 40 meters of 4140 steel. That small change increases cutting force by 8–10 %, pushing the tool away from the workpiece and opening up dimensions on later parts. Material hardness variation of even ±2 HRC changes chip load enough to move a finish pass by 0.004 mm.
Castings with hard spots or cold shuts machine differently from part to part. Bar stock that is not stress-relieved can spring 0.03 mm after roughing, throwing finish dimensions off in a predictable but hard-to-catch way.
Fixture locators wear or accumulate chips, reducing clamping repeatability. Torque wrenches that drift from calibration let clamps relax during the run. Operators who load parts by feel instead of using dowel pins introduce tilt that shows up as angular errors.
Controls work best when they catch problems before the part is finished. Two proven tools are statistical process control and measurement system analysis.
Control charts track critical dimensions in real time. An X-bar/R chart for shaft diameters immediately flags when the average drifts or the range widens. Rules like Western Electric triggers alert operators to adjust offsets or change tools before scrap is made.
A shop turning 38 mm hydraulic spools installed air gages after the roughing cut. Data fed into a simple Excel chart with control limits set at ±0.007 mm. Within two weeks the chart showed a steady upward trend every Monday morning. The cause turned out to be coolant left off over the weekend, letting the machine cool unevenly. A new startup procedure that circulated coolant for 20 minutes before cutting eliminated the trend and cut scrap from 4 % to 0.3 %.
Gage R&R studies separate measurement noise from part variation. A study on bore gages for 50 mm cylinder liners showed 22 % of the observed variation came from the gage itself—operators were not inserting the gage squarely. Switching to a fixture that held the gage perpendicular dropped GR&R to 8 % and revealed the true process spread was only 0.009 mm instead of the 0.018 mm everyone had been chasing.
Attribute checks like thread gages benefit from the same approach. Worn go/no-go gages were responsible for 15 % false rejects on M12 threads until a regular calibration schedule was enforced.
Three cases illustrate how controls pay off.
A contract shop milling 7075 aluminum wing ribs struggled with flatness drifting from 0.008 mm to 0.025 mm across a 120-piece lot. Thermocouples on the spindle nose fed temperature data to the control, which adjusted Z offsets every 10 parts. Flatness variation fell to 0.006 mm total spread, and the customer extended the contract two years.
A valve manufacturer turning 17-4PH stems saw length variation of 0.012 mm. MSA pointed to collet runout changing as the drawbar pressure dropped during the shift. Installing a pressure sensor and alarm brought variation down to 0.004 mm.
An electronics supplier wire-EDM'ing copper current collectors had surface finish bouncing between Ra 0.6 and Ra 1.4. Real-time monitoring of discharge current let the generator adjust power automatically, holding Ra 0.8 ±0.1 across 500-piece runs.
Volumetric compensation maps all 21 geometric errors of a three-axis machine and corrects them in the controller. One aerospace supplier reduced position errors from 0.018 mm to 0.005 mm over a 800 mm cube.
Active thermal compensation uses spindle-mounted sensors and coolant chillers to hold tool point temperature within 0.5 °C. Diamond turning shops routinely achieve 0.0001 mm repeatability with this approach.
Machine-learning models trained on historical run data now predict when variation will exceed limits, prompting preemptive tool changes or offset adjustments.
Start with a baseline: run 30 parts and measure five features. Calculate Cp and Cpk to see where you stand. Lock down setups with presetters and torque-controlled clamps. Train operators to read control charts—ten minutes a day prevents hours of rework. Review MSA results every six months. Keep coolant concentration and temperature within ±1 % and ±2 °C.
Repeatability is not a gift from the machine builder; it is built one controlled variable at a time. Shops that measure, chart, and adjust consistently turn out parts that fit the first time, every time. The examples here—hydraulic spools, wing ribs, valve stems—started with the same problems most shops face: thermal drift, worn gages, and loose setups. The difference was a willingness to collect data and act on it.
The payoff is measurable: lower scrap, shorter lead times, and customers who stop asking for capability studies because the parts speak for themselves. Start small—pick one feature on one machine, chart it for a week, fix the first special cause that appears. The next week pick another feature. Within a month the whole line tightens up, and the conversation shifts from “why are we scrapping parts?” to “how much more work can we take on?” That is the real reward of treating repeatability as a process instead of a hope.
Q1: Which factor usually causes the largest part-to-part shift in aluminum milling?
A: Spindle warm-up and table thermal growth; expect 8–12 microns in the first hour without compensation.
Q2: Can I run SPC without buying expensive software?
A: Yes—use Excel or free Python scripts to plot X-bar/R charts from air gage or CMM output.
Q3: What GR&R percentage is acceptable for a 0.010 mm tolerance?
A: Keep it under 10 %; 15 % starts hiding real process problems.
Q4: How often should thread gages be checked?
A: Every 500 cycles or monthly, whichever comes first, to catch wear before false rejects climb.
Q5: What is the fastest way to find fixture repeatability issues?
A: Machine a test plate, indicate locator holes before and after unclamping ten times; any shift over 0.003 mm needs attention.
