Introduction

What Throughput Really Means on a CNC Floor

Typical Constraints Found in CNC Environments

Proven Methods to Pinpoint the Current Constraint

How to Elevate the Constraint Once Identified

Three Detailed Examples from Published Work

Conclusion

Q&A

Introduction

CNC shops live or die by how many good parts they ship each week. Throughput measures exactly that: the rate at which finished parts leave the building and turn into revenue. In most machining environments, the gap between what the machines could do on paper and what actually happens on the floor is huge. A new 5-axis center might cost half a million dollars and boast 800 ipm rapids, yet the average spindle cutting time across a shift rarely breaks 45%. The rest is setups, waiting, air cuts, broken tools, or parts sitting in inspection queues.

That gap exists because every production system has at least one constraint that sets the maximum possible throughput. Improve everything else and nothing changes until you address the current weakest link. This idea comes straight from the Theory of Constraints, but it applies perfectly to CNC cells, transfer lines, and job shops. The constraint might be a single slow HMC, a fixture that takes 40 minutes to change, an operator who can only load two machines at once, or even the CMM that checks every fifth part.

Over the past decade researchers have published dozens of papers on bottleneck detection specifically in systems that include CNC machines. The methods range from simple blockage/starvation analysis to full discrete-event simulation and real-time sensor data. The results consistently show that correctly identifying the constraint first—before spending money on new spindles or robots—delivers the biggest gains. Shops that follow the process often see 25-40% more parts out the door without adding headcount or floor space.

The rest of this article walks through the constraints most commonly found in CNC operations, how to find them reliably, and what to do once you know where the choke point is. Everything here comes from actual implementations and peer-reviewed work rather than textbook theory.

What Throughput Really Means on a CNC Floor

Throughput = (Good parts shipped) ÷ (Time period). Nothing else matters for the income statement. Cycle time per part is useful, but it ignores setups, downtime, and quality losses. OEE captures availability, performance, and quality, but it treats every machine equally. In a line or cell, the constraint machine's OEE is the only one that directly limits system throughput.

Example: a cell with three operations—OP10 lathe, OP20 4-axis mill, OP30 wash and inspect. The mill has the longest cycle time (18 min) and occasional tool breakages. Even if the lathe and washer run at 95% OEE, the whole cell cannot exceed roughly 3.3 parts per hour because the mill is the pacing resource.

Another common situation in high-mix job shops: no single machine is obviously slowest, but changeovers eat half the day. Total throughput then becomes a function of average batch size and setup time rather than spindle capability.

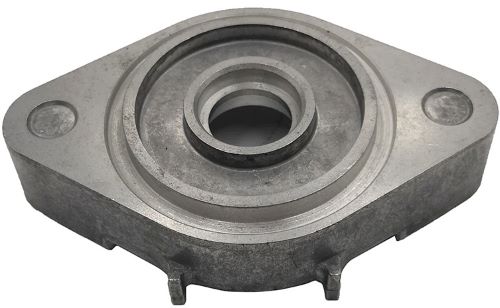

brass motorcycle parts

Typical Constraints Found in CNC Environments

Setup and Fixture Changeover Time

In most job shops running batches of 5-50 pieces, setup is the number-one throughput killer. A horizontal machining center with pallet pool might take 35-60 minutes to swap fixtures, indicate, load the new program, and run the first-piece probe cycle. Multiply that by 8-12 changeovers per shift and the machine is idle more than it cuts.

Real case: a Midwest hydraulic component manufacturer tracked setup time on four HMCs. Average changeover was 48 minutes. They introduced SMED techniques—externalize everything possible, zero-point clamping, preset tools—and dropped it to 9 minutes. Throughput on those machines rose 34% with no new capital.

Non-Optimized Toolpaths and Conservative Parameters

Many programmers still use 20-year-old strategies because “it's safe.” Zigzag pocketing with 50% stepover and constant Z-step leaves the tool in cut only 25-35% of the cycle. Modern constant-engagement strategies (trochoidal, adaptive, or volumetric) keep radial engagement steady and allow much higher feed rates. One aerospace supplier machining 7075 aluminum frames cut a 4.5-hour part to 1.8 hours just by switching to Mastercam Dynamic Motion paths.

Tool Life and Breakage Variability

Unpredictable tool life creates unplanned downtime. A 12 mm end mill rated for 90 minutes in 4140 might break after 25 if coolant pressure drops or chips recut. Each breakage costs 10-20 minutes plus a scrapped feature. Shops that move to tool presetters, RFID tracking, and sister tooling reduce breakage events by 60-80%.

Material Handling and Pallet/Machine Starvation

In pallet-pool systems the constraint often sits at the load station. Operators struggle to keep up with unloading, cleaning, and reloading pallets while the machine screams for the next one. A European medical implant shop discovered their £800k 16-pallet HMC was starved 28% of the time. Adding a second load station and better scheduling lifted output 24%.

In-Process and Final Inspection Queues

Parts waiting for CMM or hand inspection stop flow. If the quality department can only verify 40 pieces per shift but machining produces 60, inventory piles up and effective throughput is capped at 40.

Spindle Power or Rigidity Limits

Hard metals like titanium or Inconel expose spindle torque limits. Aggressive parameters cause deflection or chatter, so programmers back off feeds and depths. High-pressure through-tool coolant, balanced toolholders, and tuned parameters often buy 30-50% more metal removal rate before hitting the power wall.

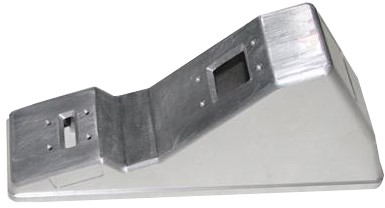

cnc aluminum milling china brass cnc machining

Proven Methods to Pinpoint the Current Constraint

Blockage and Starvation Analysis (Turning-Point Method)

The simplest and most reliable method for serial lines or cells. Record for each machine the percentage of time it is blocked (finished but downstream not ready) and starved (ready but no part from upstream). The machine where blockage starts dominating is the constraint. Multiple papers validate this approach in CNC-inclusive systems.

Active Period Method

Measures the duration of uninterrupted blockage periods. The resource with the longest average blockage duration is usually the bottleneck.

Real-Time Data Collection via MTConnect or OPC-UA

Modern machines stream spindle load, axis position, program block, and alarm states. Dashboards can calculate blockage/starvation in real time and highlight the shifting constraint as product mix changes.

Discrete-Event Simulation

Build a model in FlexSim, Siemens Plant Simulation, or similar. Run different schedules and failure rates. The station that most frequently has parts waiting upstream is the constraint under those conditions.

Value Stream Mapping with Timed Observations

Old-school but still powerful. Walk the floor with a stopwatch and map every queue and process. The longest queue or slowest process box almost always points to the constraint.

How to Elevate the Constraint Once Identified

  1. Exploit – get every possible minute out of it. Run sister tools, optimize parameters, schedule longest jobs to it.

  2. Subordinate – protect its rhythm. Release material only as needed (drum-buffer-rope), add buffers upstream, offload non-critical ops.

  3. Elevate – spend money or effort to break it. Add capacity, automate loading, upgrade coolant, buy faster tool changers.

  4. Repeat – the constraint will move; start over.

Example elevation sequence from a real transfer line:Initial constraint → CNC boring station (72 s cycle).Exploitation → balanced rough/finish bars, higher pressure coolant → 62 s.Subordination → adjusted upstream stations to match 62 s pace.Elevation → added second boring spindle per head → 48 s.New constraint moved to part wash; they added a second washer.

Three Detailed Examples from Published Work

A 2022 study on a flexible manufacturing system containing six CNC lathes and mills used real-time sensor data and buffer levels to detect shifting bottlenecks. They found the coordinate measuring machine was the hidden constraint 38% of the time. Moving probing onto the machines and reserving CMM for final audit raised system throughput 19%.

Another 2024 review compared 15 different bottleneck detection methods on simulated CNC cells. Data-driven shifting-bottleneck algorithms outperformed static methods by 15-25% in dynamic environments with random breakdowns and varying batch sizes.

A 2020 methodology combined TOC with discrete-event simulation for a job shop with 12 CNC machines. Structured identification followed by targeted SMED and tooling improvements delivered 42% higher throughput over 18 months.

Conclusion

Every CNC operation has a constraint that caps how many parts it can profitably produce. Finding it accurately and attacking it systematically is the single highest-leverage activity a manufacturing engineer or shop owner can undertake. The tools exist—simple blockage analysis works in most cases, while simulation and real-time data handle complex or shifting bottlenecks.

The shops winning today are the ones that treat constraint identification as a daily habit rather than an annual project. They measure, act, measure again, and watch the constraint move—then chase the new one. The result is higher output from existing assets, shorter lead times, and the ability to take on more profitable work without proportional increases in overhead.

Start this week: pick one cell or line, collect blockage/starvation data for three shifts, and draw the turning-point chart. The constraint will jump off the page. Fix it, and the entire floor feels the difference.

brass machined parts

Q&A

  1. My machines show 70-80% spindle utilization. Can there still be a major constraint?
    Yes—high utilization often hides starvation/blockage. Look at cutting time vs. total cycle.

  2. We run mostly one-off or very small batches. Is TOC still useful?
    Absolutely. In high-mix the constraint is almost always setup time or first-piece approval.

  3. How much buffer stock should I keep in front of the constraint?
    Typically 2-6 hours of work—enough to absorb normal variation without masking problems.

  4. Will adding automation always increase throughput?
    No—automation frequently moves the constraint to the robot or to programming/setup.

  5. How often does the constraint change in a typical job shop?
    Often weekly or even daily as part mix and batch sizes shift.
