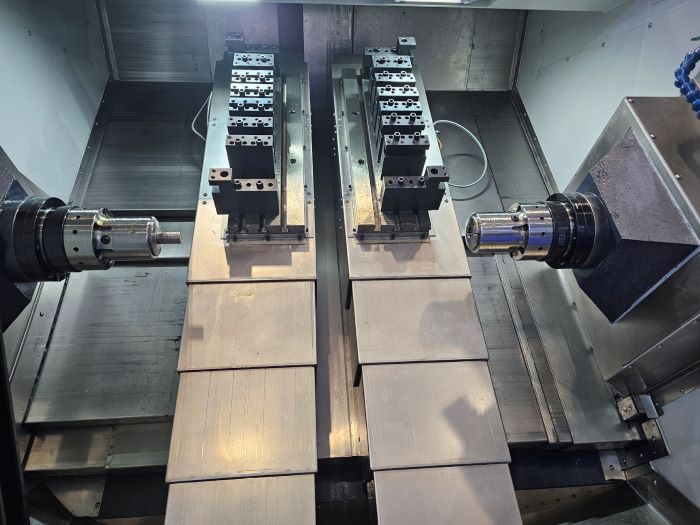

Every shop floor veteran has felt it: you load a new program, hit cycle start, and immediately start second-guessing the feeds and speeds. Crank the override knob up to shave minutes off the job and the part comes off the table with visible taper or chatter marks. Back everything down to safe numbers and the customer starts asking why the quote was so high. That tension between cutting fast and cutting right never goes away – it just changes shape depending on the material, the machine, the tolerance on the print, and how much the part is actually worth.
The last five years have brought better spindles, stiffer frames, and controllers that can look ahead thousands of blocks, but the basic physics is still the same as it was on the old Bridgeports with tape readers. More speed means more heat, more force, and more vibration. More accuracy means lighter cuts, smaller stepovers, slower feeds, and usually a lot more air cutting. The only thing that has really changed is where the knee in the curve sits and how far we can push before things fall apart.
This article pulls from real shop experience and from papers published between 2022 and 2024 so the numbers are current. The goal is simple: give you a framework you can take back to your own machines tomorrow and decide – on a part-by-part basis – exactly how much speed you are willing to trade for the accuracy the job demands.
A 12 mm four-flute end mill with 50 mm stickout in 7075 aluminum deflects about 8 µm at 0.08 mm/tooth and 40 % radial engagement. Double the chip load to 0.16 mm/tooth and deflection jumps to roughly 18 µm. The feature you just machined is now undersized on the entry side and oversized on the exit side. That is pure geometry – no thermal effects yet.
A typical HSK63 spindle running 15 kW continuous for 15 minutes can grow 25–35 µm in Z. Most of that happens in the first eight minutes. If you are holding ±10 µm on a titanium hip stem, you either wait for thermal steady-state (slow) or you map the growth curve and let the control compensate (still costs time and money).
The stability lobe diagram for a given tool-machine pair has deep pockets where you can run five to ten times the “safe” chip load without chatter. Miss the pocket and the same tool chatters at half the depth. Finding those pockets manually is painful; most shops just stay conservative and leave a lot of metal removal rate on the table.
In G64 (exact stop off) the control rounds corners to keep feedrate constant. Switch to G61.1 or Fanuc AICC level 2 and the machine slows dramatically on every direction change to keep contour error under a micron. On a complex mold core with hundreds of small segments the cycle time difference can be 300–400 %.
A 2023 paper on cold work tool steel (AISI D2) machined with polycrystalline CBN inserts showed that raising spindle speed from 8000 to 12 000 rpm dropped surface roughness from 0.45 µm Ra to 0.18 µm Ra while form error rose 35 % because of increased radial forces. The authors built a random forest model that predicted the Pareto front – the best compromise was around 10 200 rpm and 0.028 mm/tooth.
A separate 2022 study that treated energy consumption and surface quality as simultaneous objectives in face milling of 6061-T6 found that running spindle speed at 65–75 % of the tool manufacturer maximum, combined with 65–80 % radial engagement, gave the shortest cycle time while staying under 0.8 µm Ra. Cycle time dropped 28 % compared to the conservative settings most job shops still use.
In micro-milling of a magnesium alloy the same year, cutting speed above 80 m/min eliminated built-up edge completely and improved Ra, but dimensional error doubled because cutting forces spiked and excited tool vibration. The takeaway: past a certain point, chasing surface finish with speed alone backfires hard.
These three studies – all done on industrial-grade machines with standard tooling – match what I see every week on the floor.
Typical print calls for ±0.025 mm on hole location, 3.2 µm Ra max, thin walls, deep pockets, and 15–25 kg of chips per part. Roughing is king. Most Tier 1 suppliers now run high-efficiency toolpaths (Mastercam Dynamic, hyperMILL MAXX, NX ProfitMilling, etc.) at 0.18–0.25 mm/tooth, 8–12 % stepover, 50–70 % radial engagement. Machines are routinely removing 3–5 liters per minute of 7075. Finishing is a separate operation with 0.3–0.5 mm stock left, light passes, and full contour control. The speed gain in roughing far outweighs the extra finishing time.
Core and cavity tolerances ±0.005 mm, SPI-A2 or better finish, no hand polishing allowed on many medical jobs. Here accuracy wins every time. Stepover 0.15–0.25 mm with ballnose or barrel tools, feed per tooth 0.015–0.035 mm, high-accuracy mode on, constant spindle load control, spring passes, and often on-machine inspection between operations. A 400 × 250 mm automotive lens cavity can easily take 9–11 hours of finish time. Barrel tools have been the single biggest time-saver in the last three years – same finish quality in 60–70 % less time.
Ti6Al4V, CoCrMo, 17-4PH stainless. Tolerances ±0.010 mm or tighter, Ra <0.4 µm, no burrs, full traceability. Most validated processes are deliberately conservative – 40–60 % of catalog feeds and speeds. Many shops run volumetric compensation maps updated every 30 minutes and real-time thermal compensation turned on. Cycle time is long, but a scrapped $8,000 knee femoral costs more than running slow.
Parts per year in the tens or hundreds of thousands. Tolerance ±0.05–0.08 mm is plenty. Goal is maximum metal removal rate with acceptable tool life. High-feed mills in roughing, 80–100 % radial engagement, feeds that would make an aerospace programmer cry. Finishing is minimal – one or two light passes. Toolpath software that keeps stock uniform is critical because the machine never slows down for thin areas.
Here the decision changes every job. Functional prototype needed tomorrow morning? Run aggressive, accept ±0.05 mm and polish the faces by hand. Customer wants a show part for marketing photos? Slow everything down, multiple spring passes, diamond paste on a cotton wheel afterward. The flexibility is the whole point.
Rough with as much radial engagement as the fixture and remaining stock allow.
Leave uniform stock for finishing – 0.4 mm is a good default for aluminum, 0.25 mm for steels and titanium.
Turn high-accuracy mode off during roughing and semi-finishing; the time savings are huge and contour error doesn't matter yet.
Use barrel tools or circle-segment cutters on any freeform surface that will justify the tool cost.
Map spindle warm-up on every new machine and let the control compensate – it's free accuracy.
Run a quick air cut with vibration monitoring (phone app works) before the real job to find chatter zones.
Keep two or three proven “process packages” in your postprocessor and CAM templates – one for max removal, one for mold finish, one for medical.
Adaptive control systems that watch spindle load or external accelerometers and adjust feedrate in real time (Sandvik CoroPlus, Okuma OSP “Servo Navi”, Fanuc “Machining Condition Select”) routinely let shops run 25–40 % higher average feedrate without chatter surprises.
On-machine probing with automatic offset updates eliminates manual touch-offs and catches thermal drift before it ruins parts.
Barrel and lens-style finishing tools from Emuge, LMT, OSG, etc., reduce finishing time dramatically on gentle curvatures.
None of these eliminate the tradeoff – they just give you more room on the right side of the curve.
Speed and accuracy will always be opponents in CNC machining. The machine that can rough a pocket in three minutes and then hold half a micron on the same setup does not exist and probably never will. What does exist today is enough data, tooling, and control technology to make deliberate, repeatable choices instead of guessing.
The shops that make the most money are not the ones that always run the fastest or always hit the tightest tolerance. They are the ones that look at the print, the material, the quantity, and the real cost of scrap, then pick the exact spot on the speed-accuracy curve that makes sense for that job. Sometimes that spot is 85 % speed and 15 % accuracy. Sometimes it is the opposite. The important thing is knowing where you are and why.
Get that decision right every time and everything else – on-time delivery, profit margin, customer loyalty – takes care of itself.
How much slower is high-precision mode really on a typical 3D contour?
On a 500 × 300 mm mold surface with lots of small segments I've seen 3–4× longer cycle time. On simple prismatic parts the penalty is usually under 15 %.
Is thermal compensation worth the money on a 50-taper horizontal for aluminum aerospace parts?
If your Z travel is over 800 mm or you run overnight unattended, absolutely. ROI is often under six months from reduced scrap alone.
When do I switch from high-speed mode to exact-stop mode in the same program?
Roughing and semi-finishing: stay in high-speed (G64). Start of finishing pass: switch to G61.1 or AICC level 2. Most postprocessors let you insert the switch with one click.
How can I tell if tool deflection is the problem before I measure the part?
Cut a simple square pocket at two different feedrates and measure wall taper. If the difference is more than a couple of microns, deflection is dominating.
What single change has given the biggest speed/accuracy improvement in the last two years?
Adopting barrel tools for mold and aerospace finishing surfaces. Shops that switched are routinely cutting finishing time in half while improving or maintaining surface finish.
