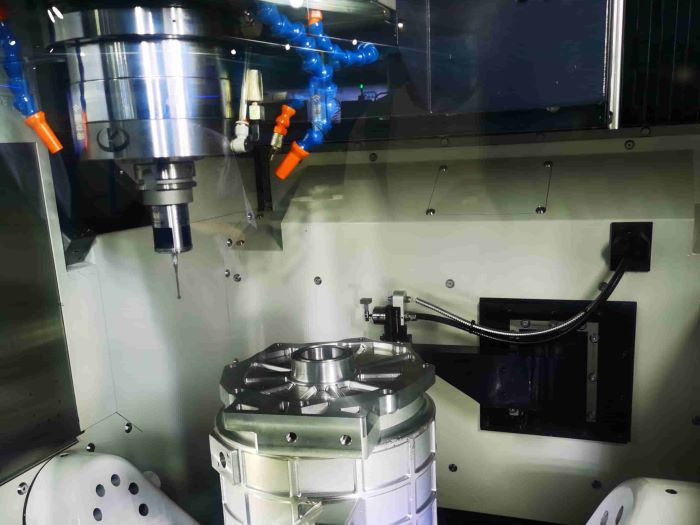

Workholding remains one of the most critical yet overlooked aspects of CNC machining. Every machinist knows the frustration of finishing a long cycle only to find the part has moved slightly or warped after release. Tight tolerances demand rigid support during cutting, but excessive clamping pressure can leave permanent distortion that no amount of finishing can correct. The challenge lies in applying enough force to resist tool loads while keeping the workpiece stress-free once the clamps open.
This balance becomes harder as parts grow thinner, materials become more exotic, and cycle times shrink. A typical aerospace bracket machined from 7075 aluminum might tolerate 200 pounds of clamp force across soft jaws, but the same force on a 0.125-inch wall section can produce 0.015 inches of bow. Similar issues appear in automotive connecting rods, medical implants, and turbine casings. The goal is straightforward: hold the part securely without introducing errors that show up on the CMM.
The following sections examine the mechanics behind clamping distortion, review proven workholding methods, and highlight practical ways to achieve high holding power with minimal deformation. Real shop examples and findings from peer-reviewed studies provide the foundation for each recommendation.
During roughing operations, cutting forces can reach several hundred pounds. The fixture must generate enough friction to prevent any movement. Friction force equals the coefficient of friction multiplied by the normal clamp force. For steel on steel with a coefficient of 0.15, roughly 1000 pounds of clamp force is needed to resist 150 pounds of tangential load. Increase the coefficient with serrated jaws or carbide coatings, and the required clamp force drops.
Problems arise when the applied force exceeds the material's elastic limit locally. Aluminum 6061 yields at about 40 ksi, so a 0.5-square-inch contact patch can deform permanently at only 20,000 pounds total load—far less than many hydraulic vises deliver without careful control.
Distortion typically comes from three sources: uneven pressure distribution, point loading on thin sections, and thermal expansion differences. A classic case involves a vise jaw that contacts only the outer 20 % of a part face. The unsupported center bows inward under load and springs back unevenly when released.
Another frequent issue occurs with long parts held at the ends. Clamping a 24-inch aluminum beam in two vises creates a bending moment that can produce 0.010 inches of center deflection even before the tool touches the part. Temperature adds complexity—friction heat under the jaws can raise local temperature 50 °F, causing differential expansion in large plates.
Accurate force measurement prevents guesswork. Torque wrenches on manual vises provide repeatable results when paired with a force-to-torque conversion chart supplied by the vise manufacturer. Hydraulic and pneumatic systems benefit from inline pressure transducers that display actual jaw force on the controller screen.
One automotive supplier installed load cells under the movable jaw of six vises. Data showed that morning setups averaged 12 % higher force than afternoon setups because hydraulic oil warmed and thinned. Adding a simple pressure regulator cut force variation to 3 % and reduced bore distortion on connecting rods from 0.018 mm to 0.004 mm.
Kurt-style vises remain the default choice for rectangular blocks and housings. Screw mechanisms deliver high force quickly, and modular jaws allow custom profiles. However, parallel errors as small as 0.001 inches across the jaw face create high-pressure ridges that indent soft materials.
A Midwest shop machining 4140 steel gearbox covers discovered that standard hard jaws left visible marks at 800 pounds. Switching to aluminum soft jaws machined 0.005 inches under part size spread the load and eliminated marks while maintaining the same holding power. The key was machining the jaws in-place to guarantee perfect parallelism.
Three-jaw chucks provide fast centering for round stock, but the wedge action concentrates force at three points. Thin-wall tubing often bells out under heavy grip. Collet systems solve this by gripping over the full circumference. A pump manufacturer reduced ovality on stainless impellers from 0.025 mm to 0.003 mm by changing from a power chuck to a precision collet at 60 % lower clamping pressure.
Four-jaw chucks offer independent adjustment for irregular castings, but setup time increases. Many shops now use compensating four-jaw designs that float slightly to equalize pressure.
Toe clamps and step clamps allow access to five sides of the part. Their low profile suits plate work, but the small contact area limits safe force. Mitee-Bite Pitbull clamps rate 2000 pounds each yet bite only 0.060 inches deep. Using six clamps around a 12-inch plate distributes load evenly and keeps deflection below 0.002 inches on 0.250-inch aluminum.
Vacuum chucks apply uniform pressure across the entire bottom surface. At 25 inHg, a 10×10-inch area generates nearly 1000 pounds of holding force with zero localized stress. Aerospace shops routinely machine 0.060-inch thick 2024 aluminum skins on vacuum pallets without measurable distortion.
Gasket design matters—soft silicone cords seal better than hard O-rings on slightly uneven surfaces. Adding a perforated sub-plate with shallow pockets prevents thin sheets from dimpling under vacuum.
Electro-permanent magnetic chucks deliver up to 100 pounds per square inch with no moving parts. The magnetic field penetrates several millimeters into the part, distributing force evenly. A tool-and-die shop replaced mechanical clamps on a surface grinder and cut flatness errors on hardened D2 blocks from 0.0008 inches to 0.0002 inches.
Pole extensions help with irregular shapes. Small filler pieces machined from mild steel bridge gaps and maintain full magnetic circuit strength.
Newer systems incorporate strain gauges or pressure sensors that feed data to the machine controller. If cutting forces increase during a deep slot, the fixture automatically reduces clamp pressure to prevent deformation. One European study showed adaptive hydraulic chucks reduced distortion on thin aerospace ribs by 78 % compared to fixed-pressure setups.
Retrofitting existing vises is straightforward—replace the hydraulic cylinder with a servo-controlled unit and add load cells. Payback typically occurs within eight months through lower scrap rates.
Adaptive clearing toolpaths maintain constant chip load and cut tangential forces by 30-40 %. Lower forces allow lighter clamping without chatter. A transmission housing that required 600 pounds of clamp force with conventional pocketing ran successfully at 350 pounds using high-efficiency roughing.
Aluminum: Prefer vacuum or soft jaws; limit localized pressure to 80 psi.
Titanium: Use carbide-coated jaws or magnetic with pole extensions; avoid excessive heat buildup.
Composites: Low-pressure vacuum with breather mesh; never use metal edge clamps.
Cast iron: Serrated jaws work well, but clean contact surfaces to prevent slippage.
Finite element analysis predicts stress concentrations before any metal is cut. Import the part model, apply clamp locations, and run a static solve. Hot spots above 70 % of yield strength require design changes—wider contact areas, additional support pins, or reduced pressure.
One connector manufacturer shortened fixture development from three weeks to three days by simulating every new part. Distortion problems dropped from 12 % to under 1 % of production runs.
Finite element models showed that clamping the big-end bore directly caused 0.022 mm distortion. Relocating clamps to the shank and adding a center support pin reduced distortion to 0.005 mm while maintaining rigidity during heavy roughing.
Initial attempts with strap clamps produced 0.035 inches of ovality on 0.180-inch walls. A vacuum pallet with adjustable edge locators held the casing round within 0.003 inches throughout five-axis machining.
Cobalt-chrome stems machined in a magnetic chuck with custom pole extensions achieved 5-micron profile tolerance without jaw marks. Cycle time fell 18 % because no soft jaw machining was required between batches.
Document torque or pressure settings for every job—store them in the program header.
Check jaw parallelism weekly with 0.0001-inch shim stock.
Use colored torque markers on bolts to spot loose clamps during the shift.
Run a light facing pass after clamping to reveal any high spots before full-depth cuts.
Keep a distortion log; patterns reveal fixture wear or material changes.
Achieving maximum clamp force without part distortion requires understanding the interplay between fixture design, material behavior, and cutting conditions. Traditional vises and chucks still handle most work, but vacuum, magnetic, and adaptive systems now solve problems that were once accepted as inevitable. Shops that measure actual forces, simulate setups, and adjust toolpaths routinely hold tolerances that seemed impossible a decade ago.
Start small—add load monitoring to one critical fixture and track results for a month. The data will guide further improvements. Consistent, repeatable workholding is the foundation of lights-out machining and high-volume precision. Master it, and every other process downstream becomes easier.
Q1: How much clamp force is safe for 0.100-inch thick 7075 aluminum?
A: Keep localized pressure below 70 psi using soft jaws or vacuum; test with a 0.002-inch indicator for movement.
Q2: Will magnetic chucks lose holding power on rough surfaces?
A: Yes—mill a clean reference face or use pole extensions to bridge gaps.
Q3: What causes parts to spring after unclamping even when no tool pressure was applied?
A: Residual stress from casting/forging released by clamp pressure; anneal before machining if possible.
Q4: Can I use vacuum for steel parts?
A: Only with friction-enhancing coatings or mechanical stops; steel needs magnets for reliable heavy cuts.
Q5: How often should I recalibrate hydraulic vise pressure?
A: Monthly, or any time oil is changed—viscosity shifts alter delivered force.
