Die casting is a manufacturing process that has gained significant popularity in various industries due to its ability to produce complex and highly detailed parts. This article explores the intricacies of die casting, its advantages, limitations, and the factors that contribute to the production of detailed components.

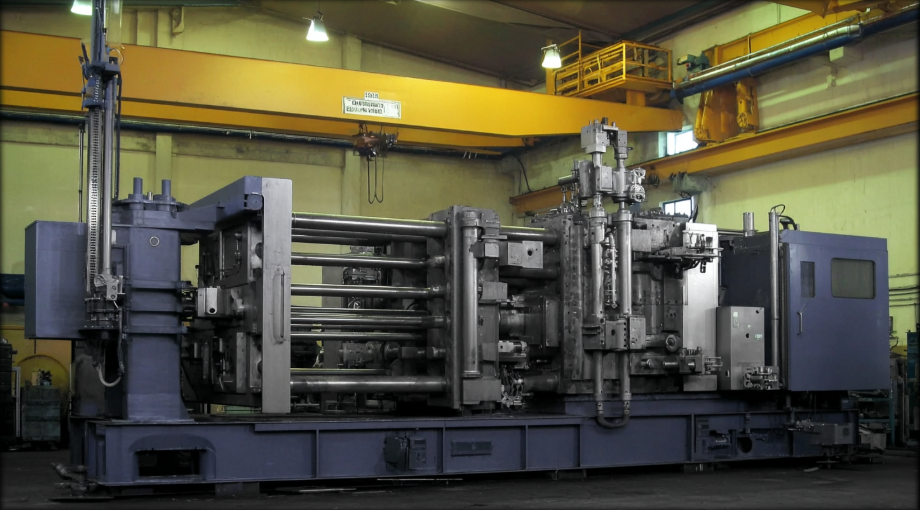

Die casting is a metal casting process that involves forcing molten metal into a mold cavity under high pressure. The molds, known as dies, are typically made from steel and are designed to withstand the high pressures and temperatures involved in the process. This method is widely used for producing parts in various materials, including aluminum, zinc, and magnesium. The precision of die casting allows for the creation of intricate designs that would be difficult or impossible to achieve with other manufacturing methods. As a result, die casting has become a preferred choice for industries that require high-quality components, such as automotive, aerospace, and electronics.
The die casting process can be broken down into several key steps. Initially, the die is preheated to ensure that the molten metal flows smoothly into the mold. This preheating is crucial as it helps to reduce the viscosity of the molten metal, allowing it to fill the mold more effectively. Once the die is ready, molten metal is injected into the mold at high pressure. The pressure used in die casting can reach up to several thousand psi, which ensures that the metal fills every detail of the mold. After the metal cools and solidifies, the die is opened, and the finished part is ejected. This process can be repeated rapidly, making it suitable for high-volume production. The ability to produce large quantities of parts quickly and efficiently is one of the key reasons why die casting is favored in mass production environments.

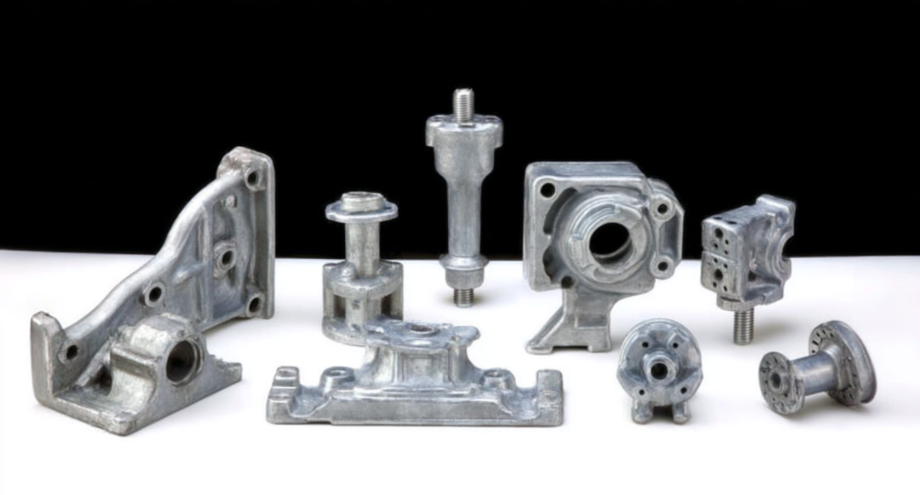

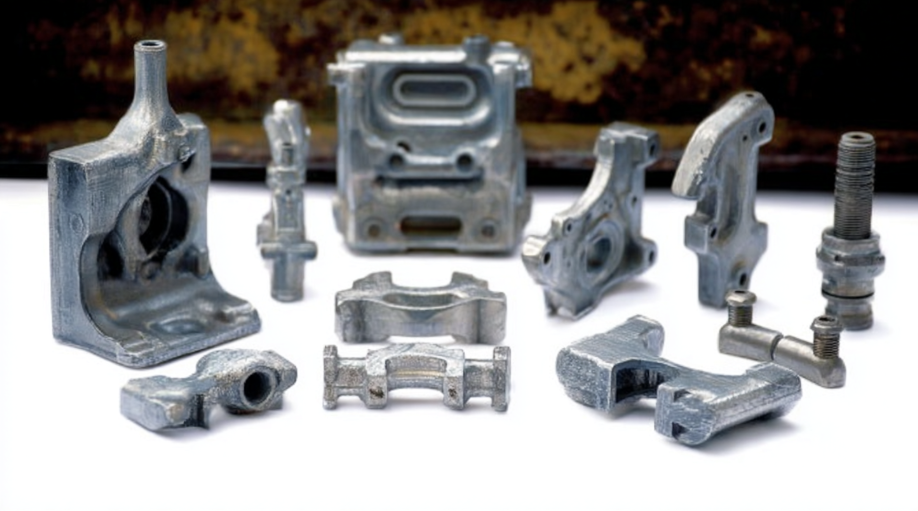

One of the most significant advantages of die casting is its ability to produce parts with high precision and intricate details. The high-pressure injection of molten metal ensures that the material fills every nook and cranny of the mold, resulting in components that closely match the design specifications. This level of detail is particularly beneficial in industries such as automotive and electronics, where precision is paramount. The ability to achieve tight tolerances means that parts can be assembled with minimal machining, reducing production time and costs. Furthermore, the consistency in quality across multiple parts makes die casting an ideal choice for applications where uniformity is critical.
Die cast parts often exhibit a superior surface finish compared to those produced by other manufacturing methods. The smoothness of the die and the rapid cooling of the molten metal contribute to a fine surface texture. This characteristic reduces the need for extensive post-processing, saving time and costs in production. A high-quality surface finish is not only aesthetically pleasing but also functional, as it can enhance the performance of the part by reducing friction and wear. In applications where appearance is important, such as consumer electronics and automotive trim, the excellent surface finish of die cast parts can significantly enhance the overall product appeal.
Die casting is known for its material efficiency. The process minimizes waste by using only the necessary amount of metal to create the part. Additionally, any excess metal can often be recycled and reused in future casting processes. This efficiency not only reduces costs but also makes die casting a more environmentally friendly option. The ability to recycle materials contributes to a more sustainable manufacturing process, aligning with the growing emphasis on environmental responsibility in industry. Manufacturers are increasingly looking for ways to reduce their carbon footprint, and die casting's material efficiency plays a significant role in achieving these goals.
Die casting allows for a wide range of design possibilities. Complex geometries, thin walls, and intricate features can be achieved, making it suitable for various applications. Designers can create parts that are not only functional but also aesthetically pleasing, enhancing the overall product design. The versatility of die casting extends to the types of materials that can be used, allowing for the selection of metals that best suit the specific requirements of the application. This flexibility enables manufacturers to innovate and develop new products that meet the evolving needs of consumers and industries alike.
While die casting offers numerous advantages, it is essential to consider the initial tooling costs. The creation of the dies can be expensive, particularly for complex designs. This upfront investment may not be feasible for low-volume production runs, making die casting more suitable for high-volume applications. The cost of tooling can be a barrier for small manufacturers or startups looking to enter the market. However, for larger production runs, the cost per part decreases significantly, making die casting a cost-effective solution in the long run. Manufacturers must carefully evaluate their production needs and consider the return on investment when deciding whether to utilize die casting.
Die casting is primarily limited to non-ferrous metals, such as aluminum, zinc, and magnesium. While these materials offer excellent properties for many applications, the inability to use ferrous metals can be a drawback for certain industries. Additionally, the choice of material can impact the final properties of the cast part, such as strength and corrosion resistance. For applications requiring ferrous materials, alternative manufacturing methods may need to be considered. Understanding the material properties and their implications on the final product is crucial for designers and engineers to ensure that the right material is selected for each application.
Although die casting allows for intricate designs, there are still some constraints to consider. Features such as undercuts or very thin walls may pose challenges during the casting process. Designers must work within these limitations to ensure that the parts can be successfully produced without compromising quality. Effective communication between designers and manufacturers is essential to navigate these constraints and optimize the design for the die casting process. By understanding the capabilities and limitations of die casting, designers can create parts that are not only functional but also manufacturable.
The design of the mold plays a crucial role in the level of detail that can be achieved in die casting. A well-designed mold will facilitate the smooth flow of molten metal and ensure that all features are accurately reproduced. Factors such as gate design, venting, and cooling channels must be carefully considered to optimize the casting process. The complexity of the mold design can significantly impact production efficiency and the quality of the final part. Investing in high-quality mold design and manufacturing can lead to better outcomes and reduced production costs over time.
The choice of material significantly impacts the detail and quality of the final part. Different metals have varying flow characteristics, solidification rates, and mechanical properties. Selecting the appropriate material for the specific application is essential to achieving the desired level of detail and performance. For instance, aluminum is often chosen for its lightweight properties and excellent corrosion resistance, while zinc is favored for its strength and durability. Understanding the specific requirements of the application and the properties of available materials is critical for successful die casting.
The parameters of the die casting process, including injection speed, pressure, and temperature, must be carefully controlled to produce high-quality parts. Variations in these parameters can lead to defects such as porosity or incomplete filling, which can compromise the detail and integrity of the final product. Advanced monitoring and control systems are increasingly being implemented in die casting operations to ensure that these parameters are maintained within optimal ranges. By closely monitoring the process, manufacturers can achieve consistent quality and minimize defects, ultimately leading to better overall performance of the die cast parts.
The automotive industry is one of the largest consumers of die-cast components. Parts such as engine blocks, transmission housings, and decorative trim pieces are commonly produced using this method. The ability to create lightweight yet strong components is particularly advantageous in automotive applications, where fuel efficiency and performance are critical. As the automotive industry continues to evolve, particularly with the rise of electric vehicles, the demand for innovative die-cast solutions is expected to grow. Manufacturers are exploring new materials and designs to meet the changing needs of the market, further solidifying die casting's role in automotive production.
In the electronics sector, die casting is used to manufacture housings, heat sinks, and other die casting components that require precise dimensions and excellent thermal conductivity. The smooth surface finish of die-cast parts also enhances the aesthetic appeal of electronic devices. As technology advances, the demand for smaller and more complex electronic components continues to rise. Die casting provides a solution for producing these intricate parts while maintaining high quality and performance standards. The ability to create lightweight and thermally efficient components is particularly valuable in the fast-paced electronics industry.
Die casting is widely used in the production of consumer products, including kitchen appliances, tools, and decorative items. The versatility of the process allows manufacturers to create a wide range of products that meet consumer demands for both functionality and design. As consumer preferences shift towards more sustainable and aesthetically pleasing products, die casting offers the flexibility to adapt to these trends. Manufacturers can leverage die casting to produce innovative designs that appeal to modern consumers while maintaining high standards of quality and performance.
As technology continues to evolve, so does the die casting process. Innovations such as 3D printing and advanced simulation software are being integrated into die casting operations. These advancements allow for more efficient mold design, improved process control, and the ability to produce even more complex geometries. The integration of automation and robotics in die casting processes is also on the rise, enhancing production efficiency and reducing labor costs. As manufacturers adopt these technologies, the potential for die casting to produce highly detailed and complex parts will continue to expand.
With increasing awareness of environmental issues, the die casting industry is focusing on sustainability. Efforts are being made to reduce energy consumption, minimize waste, and utilize recycled materials. These initiatives not only benefit the environment but also enhance the overall efficiency of the die casting process. Manufacturers are exploring ways to implement sustainable practices throughout the production cycle, from material sourcing to waste management. As sustainability becomes a priority for consumers and businesses alike, die casting's commitment to environmentally friendly practices will be a key factor in its continued success.
The demand for customized casting products is on the rise, and die casting is adapting to meet this need. Manufacturers are exploring ways to offer more flexible production options, allowing for shorter lead times and the ability to produce smaller batches of customized parts without sacrificing quality. This shift towards customization is driven by changing consumer preferences and the need for manufacturers to respond quickly to market demands. By leveraging die casting's capabilities, manufacturers can create tailored solutions that meet the unique needs of their customers, enhancing competitiveness in the marketplace.
Die casting is a powerful manufacturing process that can produce highly detailed parts with precision and efficiency. While it has its limitations, the advantages it offers make it a preferred choice in various industries. As technology continues to advance and sustainability becomes a priority, die casting is poised to remain a vital component of modern manufacturing. The ability to create intricate designs and high-quality components will ensure that die casting remains relevant in the ever-evolving landscape of production. By embracing innovation and sustainability, the die casting industry can continue to thrive and meet the demands of the future.
Die casting can achieve tolerances as tight as ±0.005 inches, depending on the part's size and complexity. However, typical tolerances range from ±0.010 to ±0.020 inches for most applications.
Vacuum die casting removes air from the mold cavity before injecting molten metal, which helps prevent defects such as porosity and improves the filling of intricate details. This process results in higher-quality parts with better surface finishes.
Best practices include designing with uniform wall thickness, avoiding sharp corners, and incorporating draft angles to facilitate mold release. Additionally, using proper gate and vent designs can enhance metal flow and reduce defects.
Common materials for die casting include aluminum, zinc, magnesium, and copper alloys. Each material offers unique properties, such as lightweight characteristics, corrosion resistance, and strength, making them suitable for various applications.
Industries that benefit significantly from die casting include automotive, aerospace, electronics, and consumer goods. These sectors require high-precision components that can be produced efficiently and cost-effectively, making die casting an ideal choice.
