CNC (Computer Numerical Control) machining has revolutionized the manufacturing industry by providing precision, efficiency, and versatility. Among the various CNC processes, CNC turning and CNC milling are two of the most widely used techniques. Each method has its unique advantages and is suited for different types of part geometries. This article explores the differences between CNC turning and CNC milling, focusing on their applications, advantages, and limitations for various part geometries.
CNC turning is a machining process that involves rotating a workpiece against a cutting tool to remove material and create cylindrical shapes. The workpiece is typically held in a chuck and rotated at high speeds while the cutting tool moves linearly along the length of the part. This process is ideal for producing parts with symmetrical shapes, such as shafts, pins, and bushings. The precision of CNC turning allows for the creation of parts that meet stringent tolerances, which is crucial in industries such as aerospace and automotive, where even minor deviations can lead to significant issues.
CNC turning machines, commonly known as lathes, are designed to handle specific geometries effectively. The primary features of CNC turning include:
Rotational Motion: The workpiece rotates, allowing for the creation of cylindrical and conical shapes. This motion is fundamental to the process, as it enables the cutting tool to engage with the material uniformly, resulting in a smooth finish.
Linear Tool Movement: The cutting tool moves along the length of the workpiece, enabling precise material removal. This linear movement can be programmed to follow complex paths, allowing for the creation of intricate features on the part.
High Speed and Efficiency: CNC turning can achieve high production rates, making it suitable for mass production. The ability to quickly set up and change tools also contributes to its efficiency, reducing downtime between production runs.
CNC turning is particularly effective for parts that require high precision and a smooth finish. Common applications include:
Shafts: Used in various machinery, shafts often require precise diameters and lengths. The ability to produce shafts with tight tolerances is essential for ensuring proper fit and function in mechanical assemblies.
Bushings: These cylindrical components are used to reduce friction between moving parts. The smooth surface finish achieved through CNC turning helps to minimize wear and extend the lifespan of the components.
Bolts and Nuts: Fasteners that require specific thread profiles can be efficiently produced using CNC turning. The process allows for the creation of threads with high accuracy, which is critical for ensuring the integrity of mechanical connections.

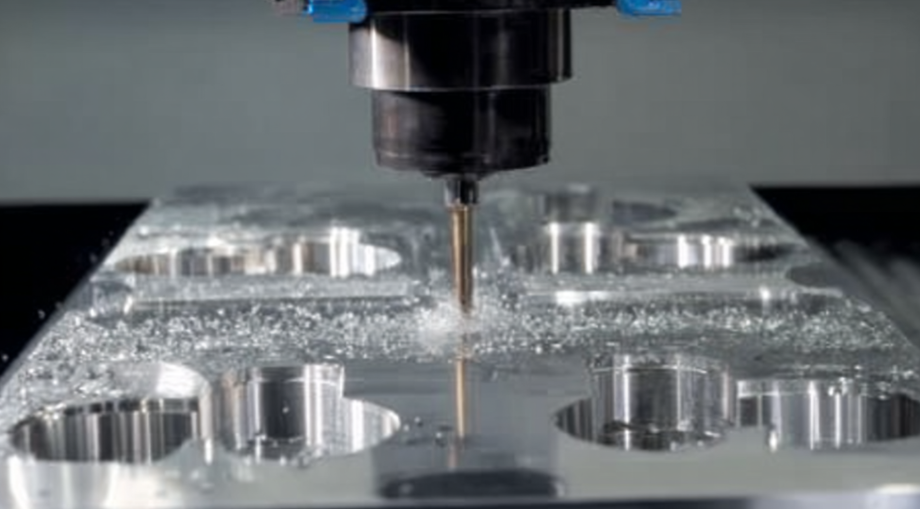

CNC milling, on the other hand, is a machining process that involves the use of rotating cutting tools to remove material from a stationary workpiece. The workpiece is typically mounted on a table that can move in multiple directions, allowing for the creation of complex shapes and features. This flexibility makes CNC milling a preferred choice for a wide range of applications, from simple parts to intricate designs.
CNC milling machines are versatile and can handle a wide range of geometries. The primary features of CNC milling include:
Multi-Directional Cutting: The cutting tool can move in multiple axes, allowing for the creation of intricate shapes. This capability enables the production of parts with complex contours, pockets, and features that would be impossible to achieve with CNC turning alone.
Variety of Tooling Options: Different cutting tools can be used to achieve various finishes and geometries. The ability to switch between tools quickly allows for greater flexibility in production, accommodating different part designs without significant delays.
Flexibility: CNC milling can accommodate a wide range of materials, including metals, plastics, and composites. This versatility makes it suitable for industries such as aerospace, automotive, and medical, where diverse materials are often required.
CNC milling is suitable for parts that require complex geometries and detailed features. Common applications include:

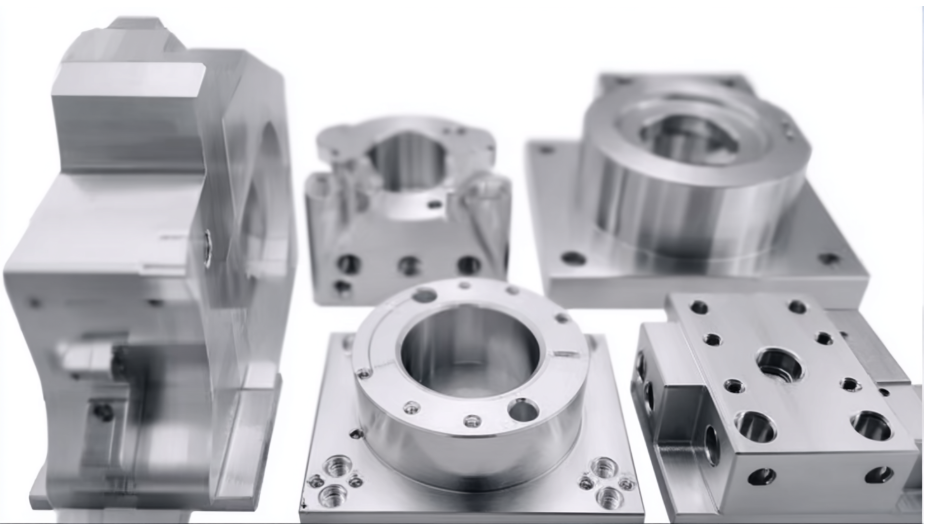

Complex Components: Parts with intricate designs, such as brackets and housings, are often produced using CNC milling. The ability to create detailed features allows manufacturers to produce components that meet specific design requirements.
Flat Surfaces: CNC milling is ideal for creating flat surfaces and precise dimensions. This capability is essential for applications where surface flatness is critical, such as in the assembly of mechanical systems.
3D Shapes: The ability to move in multiple axes allows for the production of three-dimensional shapes. This feature is particularly valuable in industries that require custom parts with unique geometries, such as prototyping and low-volume production.
When comparing CNC turning and CNC milling, it is essential to consider the specific part geometries and the requirements of the manufacturing process. Each method has its strengths and weaknesses, making them suitable for different applications.
CNC turning excels in producing cylindrical parts due to its rotational motion. The process allows for precise control over the diameter and length of the part, making it ideal for shafts, pins, and other cylindrical CNC turning components. The high-speed rotation of the workpiece ensures that material is removed evenly, resulting in a smooth surface finish. In contrast, CNC milling can produce cylindrical features but may not achieve the same level of precision as turning for these specific geometries. The complexity of milling operations can introduce variations in the final dimensions of cylindrical parts.
CNC milling is the preferred method for creating complex shapes and features. The ability to move in multiple axes allows for the production of intricate designs that would be challenging to achieve with CNC turning. For parts that require detailed features, such as pockets, grooves, and contours, CNC milling is the more suitable option. The flexibility of CNC milling also enables manufacturers to adapt quickly to design changes, making it an excellent choice for prototyping and custom parts.
When it comes to creating flat surfaces, CNC milling is the clear winner. The process allows for precise control over the surface finish and dimensions, making it ideal for applications that require flatness and accuracy. CNC turning, while capable of producing flat surfaces, is not as efficient or precise for this type of geometry. The limitations of turning in creating flat features can lead to additional machining steps, increasing production time and costs.
The choice of material can also influence the decision between CNC turning and CNC milling. Both methods can work with a variety of materials, but certain materials may be better suited for one process over the other.
CNC turning is often preferred for machining metals, especially for parts that require high strength and durability. The process can efficiently remove material from hard metals, such as steel and titanium, while maintaining tight tolerances. The high cutting speeds and precise tool movements in CNC turning contribute to the production of high-quality metal components. CNC milling can also handle metals, but the cutting tools may wear more quickly due to the increased complexity of the machining process. This wear can lead to higher tool replacement costs and longer lead times for production.
CNC milling is generally more effective for machining plastics and composites. The ability to use various cutting tools and the flexibility of the milling process allow for better control over the material removal rate, resulting in a smoother finish. The lower cutting forces involved in milling plastics can also reduce the risk of material deformation. CNC turning can be used for plastics, but the process may not achieve the same level of detail as milling, particularly for complex geometries.
CNC turning offers several advantages that make it a preferred choice for specific applications:
High Precision: The rotational motion of CNC turning allows for tight tolerances and high precision in cylindrical parts. This precision is crucial in industries where components must fit together perfectly to ensure proper function.
Efficiency: CNC turning can achieve high production rates, making it suitable for mass production of cylindrical components. The ability to quickly change tools and set up new jobs contributes to its efficiency, allowing manufacturers to meet tight deadlines.
Simplicity: The process is straightforward, making it easier to set up and operate compared to CNC milling. This simplicity can lead to reduced training times for operators and lower overall production costs.
CNC milling also has its unique advantages that make it suitable for various applications:
Versatility: CNC milling can handle a wide range of geometries, making it suitable for complex parts. This versatility allows manufacturers to produce a diverse array of components from a single machine.
Detailed Features: The ability to create intricate designs and features is a significant advantage of CNC milling. This capability is essential for industries that require custom parts with specific design elements.
Material Flexibility: CNC milling can work with various materials, including metals, plastics, and composites. This flexibility allows manufacturers to adapt to changing market demands and produce components from different materials as needed.
While CNC turning has many advantages, it also has limitations:
Geometry Restrictions: CNC turning is primarily suited for cylindrical shapes, making it less effective for complex geometries. This limitation can restrict the types of parts that can be produced using turning alone.
Tool Wear: The cutting tools used in CNC turning can wear out quickly, especially when machining hard materials. This wear can lead to increased maintenance costs and downtime for tool replacement.
CNC milling also has its drawbacks:
Setup Complexity: The setup process for CNC milling can be more complex and time-consuming compared to CNC turning. This complexity can lead to longer lead times for production, particularly for small batch runs.
Production Speed: CNC milling may not achieve the same production speeds as CNC turning for certain geometries. The time required for tool changes and setup can impact overall efficiency, especially in high-volume production environments.
Both CNC turning and CNC milling are essential machining processes that serve different purposes in the manufacturing industry. CNC turning is ideal for producing cylindrical parts with high precision and efficiency, while CNC milling excels in creating complex shapes and detailed features. The choice between the two methods depends on the specific part geometries, material considerations, and production requirements. Understanding the strengths and limitations of each process is crucial for manufacturers to make informed decisions and optimize their machining operations. By leveraging the unique advantages of CNC turning and milling, manufacturers can enhance their production capabilities and meet the demands of an ever-evolving market.
Recent advancements in CNC turning technology include the integration of automation and robotics, which enhance production efficiency and reduce labor costs. Additionally, improvements in software algorithms allow for better tool path optimization, resulting in reduced cycle times and improved surface finishes. The use of advanced materials for cutting tools has also increased tool life and performance.
CNC milling and turning can be combined in a process known as multi-tasking or hybrid machining. This approach allows manufacturers to perform both turning and milling operations on a single machine, reducing setup times and improving accuracy. By using a multi-axis CNC machine, complex geometries can be achieved without the need for multiple setups, streamlining the production process.
The cost implications of choosing CNC turning versus CNC milling depend on several factors, including the complexity of the part, material type, and production volume. CNC turning is generally more cost-effective for high-volume production of cylindrical parts due to its speed and efficiency. In contrast, CNC milling may incur higher costs for setup and tooling, especially for complex geometries, but it offers greater flexibility for custom parts.
CNC turning is best suited for metals such as steel, aluminum, and titanium, which require high strength and durability. It can also handle some plastics. CNC milling, on the other hand, is versatile and can work with a wider range of materials, including metals, plastics, composites, and wood. The choice of material often depends on the specific requirements of the part being produced.
CNC turning typically produces a smoother surface finish on cylindrical parts due to the continuous cutting action of the rotating tool. The finish can be enhanced further with appropriate cutting speeds and tool materials. CNC milling can achieve high-quality finishes as well, but the surface quality may vary depending on the complexity of the part and the type of tooling used. Generally, CNC milling may require additional finishing processes for intricate designs to achieve the desired surface quality.
