CNC (Computer Numerical Control) machining has revolutionized the manufacturing industry by providing precision and efficiency in the production of complex parts. Among the various CNC machining processes, CNC turning and CNC milling are two of the most commonly used techniques. While both processes are essential in modern manufacturing, they differ significantly in their operations, applications, and the types of parts they produce. This article will explore the differences between CNC turning and CNC milling, highlighting their unique characteristics, advantages, and applications.
CNC turning is a machining process that involves rotating a workpiece against a cutting tool to create cylindrical parts. The workpiece is typically mounted on a spindle and rotated at high speeds while the cutting tool moves linearly along the length of the workpiece. This process is primarily used to produce parts with rotational symmetry, such as shafts, pins, and bushings. The ability to create these parts with high precision makes CNC turning a preferred choice in industries where accuracy is paramount.
The CNC turning process begins with the selection of the appropriate material, which can range from metals to plastics. Common materials used in CNC turning include aluminum, brass, steel, and various polymers, each chosen for their specific properties and applications. The workpiece is then secured in a chuck, which holds it firmly in place during the machining operation. The CNC lathe, which is the machine used for turning, is programmed with specific instructions that dictate the speed, feed rate, and depth of cut. This programming is crucial, as it ensures that the cutting tool operates within the desired parameters to achieve the required tolerances.
As the workpiece rotates, the cutting tool moves along its length, removing material to achieve the desired shape and dimensions. The process can be performed in various ways, including rough turning, finish turning, and threading, depending on the required specifications of the final product. Rough turning is typically used to remove large amounts of material quickly, while finish turning provides the final dimensions and surface finish. Threading operations can create internal or external threads, which are essential for many mechanical applications.
CNC turning offers several advantages that make it a preferred choice for many manufacturing applications. One of the primary benefits is its ability to produce highly accurate and repeatable parts. The precision of CNC turning allows manufacturers to create components that meet tight tolerances, which is crucial in industries such as aerospace and automotive. In these sectors, even the slightest deviation can lead to significant issues, making the accuracy of CNC turning invaluable.
Another advantage of CNC turning is its efficiency. The process can be automated, allowing for continuous production with minimal human intervention. This not only reduces labor costs but also increases production speed, making it ideal for high-volume manufacturing. The automation of CNC turning also leads to reduced human error, further enhancing the quality of the produced parts.
Additionally, CNC turning is versatile. It can accommodate a wide range of materials and can be used to create various shapes and features, including grooves, threads, and complex profiles. This versatility makes CNC turning suitable for a diverse array of applications, from simple components to intricate designs. The ability to switch between different materials and part designs quickly is a significant advantage in today’s fast-paced manufacturing environment.
CNC milling, on the other hand, is a machining process that involves the use of rotating cutting tools to remove material from a stationary workpiece. Unlike CNC turning, where the workpiece rotates, CNC milling utilizes a stationary workpiece that is moved in multiple directions to achieve the desired shape. This process is commonly used to create flat surfaces, complex geometries, and intricate designs. The flexibility of CNC milling allows it to be used in a wide range of industries, from aerospace to consumer electronics.
The CNC milling process begins with the selection of the workpiece material, which can include metals, plastics, and composites. Common materials for CNC milling include steel, aluminum, titanium, and various plastics, each selected based on the specific requirements of the part being produced. The workpiece is secured to the milling table, and the CNC milling machine is programmed with specific instructions regarding the cutting tools, speeds, and feed rates. This programming is essential for ensuring that the milling operation is executed accurately and efficiently.

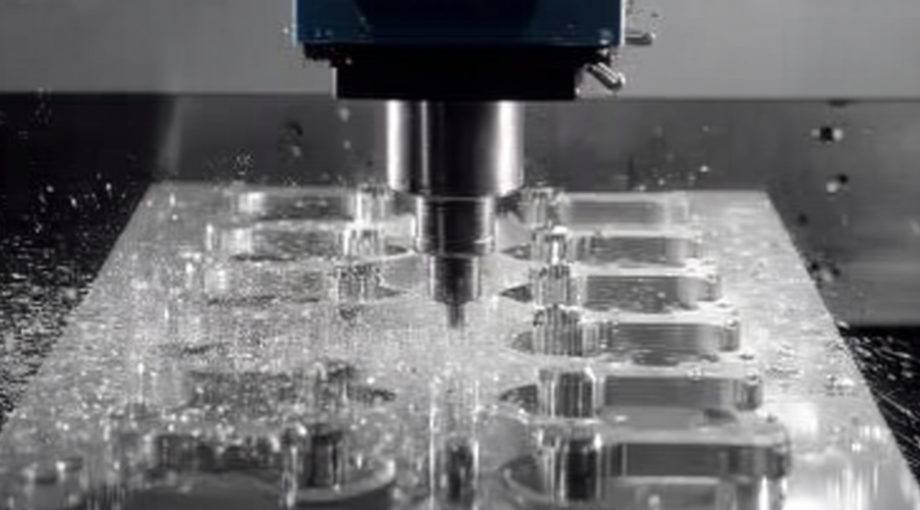

During the milling operation, the cutting tool rotates at high speeds while the workpiece is moved in various directions, including up and down, left and right, and even at angles. This multi-axis movement allows for the creation of complex shapes and features, such as pockets, slots, and contours. The ability to perform 3D milling operations significantly expands the design possibilities for manufacturers, enabling them to create parts that meet specific functional and aesthetic requirements.
CNC milling offers several advantages that make it a popular choice in the manufacturing industry. One of the key benefits is its ability to produce complex geometries with high precision. The multi-axis movement of the milling machine allows for intricate designs that would be difficult or impossible to achieve with other machining processes. This capability is particularly valuable in industries where design complexity is a critical factor, such as in the production of molds and dies.
Another advantage of CNC milling is its flexibility. The process can be easily adapted to accommodate different materials and part designs. This adaptability makes CNC milling suitable for a wide range of applications, from prototyping to large-scale production. The ability to quickly change tooling and adjust machining parameters allows manufacturers to respond rapidly to changing market demands and customer requirements.
CNC milling also allows for the use of various cutting tools, enabling manufacturers to achieve different surface finishes and features. This versatility in tooling can enhance the overall quality of the finished product. For instance, manufacturers can choose from a variety of end mills, face mills, and ball nose cutters to achieve the desired surface finish and dimensional accuracy. This flexibility in tool selection is a significant advantage in achieving high-quality results.
While CNC turning and CNC milling share some similarities, they have distinct differences that set them apart. Understanding these differences is crucial for manufacturers when selecting the appropriate machining process for their specific needs.
The most significant difference between CNC turning and CNC milling lies in the movement of the workpiece. In CNC turning, the workpiece rotates while the cutting tool remains stationary. This rotation allows for the creation of cylindrical shapes and features. In contrast, CNC milling involves a stationary workpiece that is moved in multiple directions while the cutting tool rotates. This movement enables the production of flat surfaces and complex geometries. The choice between these two processes often depends on the specific shape and features required for the part being manufactured.
CNC turning is primarily used to produce parts with rotational symmetry, such as shafts, bushings, and pins. These components typically have a cylindrical shape and require precise dimensions along their length. On the other hand, CNC milling is used to create a wide variety of parts, including flat surfaces, intricate designs, and complex shapes. This makes CNC milling suitable for applications that require more than just cylindrical features. The ability to produce both simple and complex parts is a significant advantage of CNC milling, allowing manufacturers to meet diverse customer needs.
The tooling and setup for CNC turning and CNC milling also differ significantly. CNC turning typically requires fewer tools, as the process primarily relies on a single cutting tool that moves along the length of the workpiece. In contrast, CNC milling often requires multiple cutting tools to achieve different features and surface finishes. This can lead to more complex setups and longer preparation times for CNC milling operations. The complexity of the setup process can impact production efficiency, making it essential for manufacturers to consider their specific production requirements when choosing between these two processes.
In terms of production speed and efficiency, CNC turning is often faster for producing cylindrical parts due to the continuous rotation of the workpiece. The automated nature of CNC turning allows for high-volume production with minimal downtime. CNC milling, while capable of producing complex shapes, may require more time for tool changes and setup adjustments, potentially leading to longer production cycles. However, advancements in CNC milling technology, such as high-speed machining and improved tooling, have significantly enhanced the efficiency of milling operations, allowing manufacturers to achieve faster production times.
CNC turning and CNC milling are utilized in various industries, each with its specific applications. CNC turning is commonly used in the automotive, aerospace, and medical industries for producing components such as shafts, valves, and fittings. These industries require high precision and reliability, making CNC turning an ideal choice. CNC milling, on the other hand, is widely used in industries that require intricate designs and complex geometries, such as electronics, consumer goods, and machinery. The versatility of CNC milling allows manufacturers to produce a wide range of products, from simple brackets to complex housings.
CNC turning and CNC milling are two essential machining processes that play a vital role in modern manufacturing. While both techniques offer precision and efficiency, they differ significantly in their operations, applications, and the types of parts they produce. CNC turning is ideal for creating cylindrical parts with high accuracy, while CNC milling excels in producing complex shapes and intricate designs. Understanding these differences is crucial for manufacturers when selecting the appropriate machining process for their specific needs. As technology continues to advance, both CNC turning and CNC milling will remain integral to the manufacturing landscape, driving innovation and efficiency in the production of high-quality components. The ongoing development of CNC technology promises to enhance the capabilities of both processes, enabling manufacturers to meet the ever-evolving demands of the market.
Common materials for CNC turning include metals like aluminum, brass, steel, and plastics. CNC milling can also use these materials, along with composites and other specialized materials, depending on the part requirements.
CNC turning achieves precision through the use of computer-controlled lathes that follow programmed instructions for speed, feed rate, and depth of cut, allowing for tight tolerances and repeatable results.
CNC milling is best suited for parts that require complex geometries, such as intricate designs, flat surfaces, pockets, and contours. It is commonly used in industries like aerospace, automotive, and electronics.
Yes, CNC turning and milling can be used together in a manufacturing process. Many modern CNC machines are capable of both turning and milling, allowing for the production of complex parts that require features from both CNC processes.
Key factors include the shape and complexity of the part, the required tolerances, the material being used, production volume, and the specific features needed. Understanding these factors helps manufacturers select the most efficient and effective machining process.
