Tight-tolerance work in CNC production is where the real money and the real headaches live. When customers ask for ±0.0005 in (or tighter) on a 5,000-piece runs, the margin between profit and scrap becomes razor thin. Aerospace housings, medical implants, hydraulic spools, transmission gears—none of them forgive even a half-micron drift. Shops that consistently hit those numbers don't rely on luck or hero machinists working overtime. They build systems that remove variation long before the spindle ever turns.
The push for zero rejects has only grown stronger in the last few years. Raw material costs are up, lead times are still shaky, and customers now write penalties into contracts for every rejected lot. At the same time, in-process inspection tools, better coatings, and smarter software have made once-impossible tolerances routine—if the process is dialed in correctly. This article walks through the exact steps shops are using right now to hold ±0.0002 to ±0.001 in production without slowing the machine down or driving costs through the roof. Everything here comes from daily practice and from peer-reviewed papers that measured real parts, not just modeled them.

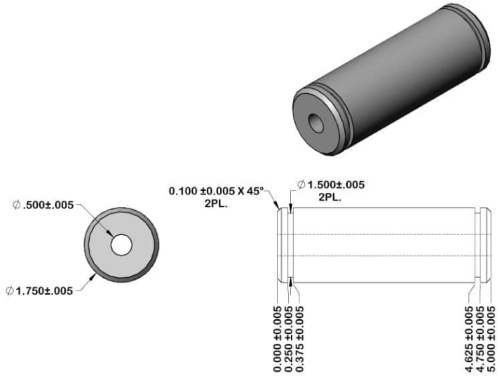

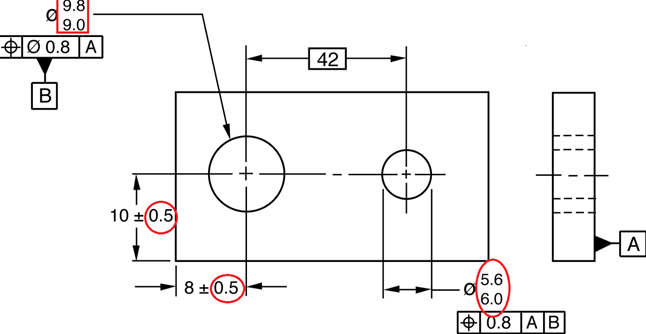

Prototypes usually run in lots of one or five. If one part is off by 0.0008 in, you tweak the offset and move on. Production is different. A 0.0008 in shift across 2,000 pieces is 2,000 scrapped parts, a missed shipping date, and an angry customer. Statistical process capability (Cpk) becomes the language that separates profitable runs from disasters. Most contract shops today are expected to deliver Cpk ≥ 1.33 on critical features; many OEMs now demand ≥ 1.67.
Thermal growth, tool wear, fixture repeatability, and material variation all compound in long runs. A tolerance that looked safe on the tenth part can drift out by the five-hundredth if the process isn't actively controlled.
Material choice is the first line of defense. Aluminum 6061-T6 machines beautifully and stays dimensionally stable, but 7075 can spring 0.001 in after roughing if stresses aren't relieved. Stainless 17-4 PH in Condition A is soft enough to hold ±0.0003 in easily; once it's aged to H900 the same program can open up to ±0.0015 in because of hardness scatter.
Titanium Ti-6Al-4V ELI is common for implants, but its low thermal conductivity means heat stays in the shear zone. One medical shop found that switching to Grade 23 (ELI) instead of Grade 5 reduced diameter growth from 0.0009 in to 0.0003 in on the same lathe and tooling, simply because the material was more homogeneous.
Invar and Kovar are used when coefficients of thermal expansion must stay below 1.5 ppm/°C, but both work-harden aggressively. Slow feeds and sharp positive-rake inserts are mandatory to keep cutting forces (and resulting deflection) low.
Even the best spindle is useless if the part moves 0.0004 in between ops. Hydraulic vises with ground jaws repeat to about 0.0005 in—good enough for many jobs, but not for true tight-tolerance work. Shops running ±0.0003 in or better usually machine custom soft jaws or use zero-point systems (Lang, Jergens, or Erowa). A 5-axis trunnion with Hirth coupling can repeat within 0.0002 in all day long.
Vacuum fixtures with porous sintered plates have become common for thin aerospace covers. One contractor machines 0.060 in thick 7075 webs with flatness 0.0004 in across 18 in simply by pulling 28 inHg vacuum and freezing the plate to the table—no clamp marks, no distortion.
Carbide is table stakes. The difference comes in substrate, coating, and geometry. For aluminum ±0.0005 in work, polished TiB2 or ZrN-coated carbide with 0.010–0.015 in nose radius and 45° helix is standard. For stainless and titanium, variable-helix, variable-pitch end mills with AlTiN or AlCrN coating reduce chatter and keep runout under 0.0002 in for hundreds of parts.
Insert grade matters just as much on turning centers. A shop making 316L hydraulic bodies switched from generic CNMG inserts to a dedicated grade with 0.008 in honed edge and chipbreaker designed for light depths. Diameter variation dropped from ±0.0007 in to ±0.00025 in over a 400-piece run with the same insert lasting the entire lot.
Speed and feed charts from tool vendors are starting points, not gospel. Real optimization comes from measuring actual tool deflection and temperature. Most shops running tight tolerances today keep chip load between 0.0015 and 0.004 ipt and adjust spindle rpm so that tool engagement stays below 8–10 % radial for finishing passes.
High-pressure through-tool coolant (1,000–1,500 psi) has become almost mandatory for deep-hole work and titanium. One aerospace supplier drilling 15×D holes in 17-4 PH reduced taper from 0.0012 in to 0.0003 in simply by raising pressure from 300 psi to 1,200 psi—better chip evacuation, lower heat, less drill wander.
Waiting for QC to catch a drift is too late in production. Modern machines have Renishaw or Blum probes that measure critical features between operations and update work offsets automatically. A European gear shop machines planetary carriers with bore position ±0.0004 in using on-machine probing after roughing and again before finishing. The controller adjusts for measured stock condition and thermal growth—rejects went from 3.8 % to 0.06 % in six months.
Control charts and process capability studies aren't paperwork for the quality department. Operators plot diameter, concentricity, or flatness every 20–50 pieces. When the chart shows seven points trending up, they change the insert or adjust offset before a single part goes out of tolerance.
Pre-control (red-yellow-green zones) is simpler for line workers and catches shifts faster than X-bar/R charts in many shops.
Zero rejects on tight-tolerance CNC work is no longer a marketing claim—it is daily reality in hundreds of shops once they treat variation as the enemy instead of an unavoidable nuisance. Start with stable materials and repeatable workholding. Choose tooling that survives full production runs without measurable wear. Lock in cutting parameters that keep forces and heat predictable. Measure constantly, react instantly, and use basic statistics to stay ahead of drift.
The payoff is measurable: scrap rates below 0.1 %, on-time delivery above 98 %, and customers who stop shopping your competitors. The path is straightforward, the tools are available today, and the only thing left is disciplined execution.
Q1: My older Haas VF-2 can't seem to hold better than ±0.001 in. Is the machine the problem?
A: Usually not. Check ballscrews for backlash, spindle runout, and level the machine again. Most 15-year-old Haas machines hold ±0.0004 in all day with good maintenance and proper tooling.
Q2: How much slower do I have to run to hit ±0.0003 in on 17-4 PH?
A: Not much. Keep surface speed 350–450 sfm, feed 0.003–0.005 ipt, depth ≤ 0.030 in on finish pass, and use high-pressure coolant pressure. Cycle time penalty is normally under 15 %.
Q3: Is cryogenic machining worth it for titanium implants?
A: For lots above 500 pieces, yes. Tool life doubles and dimensional stability improves enough to skip some semi-finish ops.
Q4: Do I need 5-axis for every tight-tolerance part?
A: No. 3-axis with good fixturing and on-machine probing covers 85 % of jobs. Reserve 5-axis for compound angles or undercuts.
Q5: How do I convince management to invest in zero-point workholding?
A: Show them the math: one scrapped 30-piece lot of Inconel usually pays for a full Erowa system.
