In manufacturing engineering, securing a workpiece for machining is rarely straightforward, especially when the part has intricate shapes like turbine blades or lightweight chassis components. These complex geometries—marked by curves, thin walls, or tight tolerances—pose a unique challenge: how to hold them steady without causing distortion that throws off dimensions. Warpage, the unintended bending or twisting of a part, can turn hours of precision work into scrap, costing time and money. For industries like aerospace, automotive, or medical device manufacturing, where parts push the boundaries of design for performance, this issue is critical.
The stakes are high. A warped aerospace component, such as a fan blade with a 0.3 mm deviation, can fail vibration tests, while a distorted medical implant might not fit its intended anatomy. Studies show that clamping forces on low-stiffness parts can amplify deformation by up to 200% after release. This article explores why warpage happens, evaluates traditional and advanced fixturing methods, and shares practical solutions backed by real-world examples. Drawing from research, including journal articles from Semantic Scholar and Google Scholar, we'll provide a roadmap for engineers to tackle complex geometries with confidence, minimizing distortion while maintaining precision.
Warpage often stems from elastic deformation and residual stresses introduced during fixturing or machining. When a clamp applies force to a flexible material like aluminum (with a Young's modulus around 70 GPa), it can deform the part temporarily. Upon release, the material springs back, but not always to its original shape. For example, a study on thin-walled aluminum components found that excessive clamping force—say, 600 N on a 2 mm wall—can induce warpage of 0.4 mm or more.
Consider a satellite bracket with a curved, 1.5 mm-thick arc. Standard edge clamps might pinch the thin section, creating compressive stresses that relax unevenly post-machining. Research using finite element analysis (FEA) showed that optimizing clamp placement reduced peak stresses by 35%, cutting warpage significantly. Machining itself adds complexity: cutting forces and localized heat (up to 700°C in titanium) introduce tensile stresses that distort parts upon fixture release.
Complex geometries, such as helical gears or lattice-structured implants, resist traditional fixturing. Their irregular surfaces—think undercuts or non-planar datums—make uniform clamping tricky. A journal article on prismatic parts noted that asymmetric shapes increase warpage risk by 140% compared to simpler blocks, as uneven force distribution torques the part.
For instance, machining a titanium spinal implant with a porous lattice structure is a nightmare with standard vises. Pinpoint clamping can collapse delicate features, causing micro-cracks or 0.2 mm distortions. One solution involved embedding the part in a low-viscosity resin, which supported the lattice without localized stress. Composites, like carbon fiber panels for automotive hoods, add another layer: clamping across fiber grains risks delamination, leading to wavy surfaces.

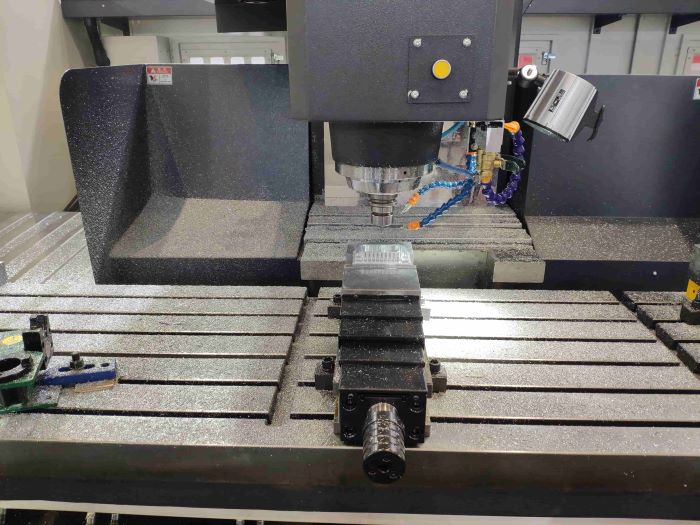

Vises and strap clamps are workhorses for prismatic parts, but they falter with complex shapes. Their high force concentration can crush delicate features. Take a heat sink with thin aluminum fins: standard clamps bent fins by 0.25 mm in one shop's trial. Switching to nylon-padded edge clamps distributed force, reducing distortion to 0.05 mm.
Bolted fixtures excel for repeatability, as seen in engine block machining, where dowel pins ensure alignment. But for one-off parts, like a prototype manifold with organic curves, custom bolting is costly and slow. A defense contractor machining a parabolic radome found that over-torqued bolts (15 Nm) warped the part by 0.3 mm; standardizing torque to 8 Nm fixed it.
The pitfall? Over-clamping. Forces exceeding 15% of a material's yield strength risk plastic deformation, especially in thin-walled parts. Studies suggest keeping clamp loads between 150-400 N, monitored with strain gauges.
Vacuum tables work well for flat parts but struggle with contours. A motorcycle fairing in ABS plastic, for example, lifted at the edges under vacuum, causing 0.4 mm warpage. Zoned vacuum pods with foam seals improved contact, dropping distortion to 0.08 mm.
Adhesive methods, like wax or low-tack tapes, distribute force evenly. For a titanium dental crown with sculpted surfaces, wax embedding allowed full-access machining without dents. Post-machining, a solvent bath removed the wax, leaving no warpage. However, vacuum systems falter on porous composites, risking fiber pull-out, and adhesives can fail under high cutting heat.
Modular fixturing systems, like those from Lang or Schunk, use grid plates and adjustable locators to adapt to complex shapes. For an aerospace wing spar with I-beam sections, a modular base with pillar supports and edge stops held the part with 0.06 mm deflection under 800 N load, validated by FEA.
In high-mix environments, reconfigurable fixtures save time. A medical device shop machining S-shaped orthopedic plates reused 75% of modular components across variants, cutting setup from 90 to 25 minutes. Kinematic mounting minimized overconstraint, keeping warpage below 30 microns.
Hybrid systems blend mechanical, vacuum, or magnetic elements. For a steel motor housing, a magnetic chuck with mechanical locators secured irregular surfaces without distortion. In gas turbine blade machining, a hybrid vacuum-and-pin setup reduced warpage by 65% compared to vises, as pins registered datums while vacuum flattened the base.
Soft tooling, like 3D-printed conformal jaws, is a game-changer. For a conical prosthetic socket, printed polymer supports matched the part's curvature, eliminating point stresses. Costing $40 per set, they boosted yield by 20%.
FEA tools like ANSYS model fixture-workpiece interactions, predicting stress and deformation. A study on lobed aluminum parts used FEA to optimize three-point clamping, reducing warpage from 0.5 mm to 0.07 mm. Physical tests with CMM confirmed accuracy within 8%.
For thin shells, like satellite panels, modal analysis avoids chatter by tuning fixture stiffness. One shop simulated a 0.9 mm aluminum dish, adjusting supports to dodge resonance at 600 Hz, achieving zero measurable warpage in production.
A turbine vane with serpentine cooling channels (Inconel, 1.2 mm trailing edge) warped 0.25 mm in a vise setup. Engineers designed a modular fixture with radial arms contacting datum points, guided by FEA. Warpage dropped to 15 microns, and cycle time fell 20% across 400 units.
An aluminum control arm with gussets warped 0.35 mm under vacuum. Encapsulation in machinable foam, followed by solvent removal post-finishing, cut warpage to 0.04 mm. Scaled to production, this saved $12K monthly in scrap.
A titanium cochlear housing with porous features distorted under adhesive fixturing. A hybrid wax-and-pin setup, with external cuts first and temporary supports for internals, achieved <12 micron deviation, hitting 97% yield.
A composite radome (0.6 mm walls) delaminated under clamps. A bladder fixture, inflated to match the hyperbolic shape, distributed 1.8 kPa evenly. Machined in one setup, it showed no warpage across 150 units.
Design Collaboration: Work with designers to add fixture-friendly datums, avoiding sharp corners.
Material Prep: Anneal high-stress alloys; choose low-anisotropy materials.
Force Control: Use torque wrenches (5-10 Nm) and strain gauges.
Machining Sequence: Rough heavy cuts first, finish with supports intact.
Post-Processing: Vibratory stress relief for critical parts.
Tool Maintenance: Inspect clamps biweekly for wear.
Training: Use VR simulations for setup practice.
Metrics: Monitor warpage with laser scanners, targeting CpK >1.4.
Fixturing complex geometries without inducing warpage demands a blend of science and craft. From elastic mechanics to hybrid fixtures, the tools exist to secure parts while preserving precision. Case studies, like the turbine vane or radome, show how tailored setups—modular, hybrid, or simulation-driven—can slash distortion to near-zero. The future points to sensor-driven fixtures and adaptive materials, but today's engineer can succeed with disciplined force control, smart sequencing, and data-backed design. By aligning fixtures with geometry and material realities, shops can boost yields, cut costs, and deliver parts that meet the toughest specs. This isn't just about holding a part—it's about mastering the process to shape the future of manufacturing.
Q1: How do I fixture a thin-walled part with curves for CNC machining?
A: Use FEA to identify low-stress clamp points, then apply modular fixtures with soft pads. For a 1 mm aluminum wall, keep forces below 250 N and add temporary supports during roughing—warpage often drops by 50%.
Q2: What's the best approach for undercuts in complex parts?
A: Reconfigurable tombstones with adjustable locators work well. Machine external features first to maintain stiffness. For a helical gear, this cut distortion by 70%.
Q3: Can vacuum fixturing handle composites with irregular shapes?
A: Yes, with zoned seals and low pressure (40 kPa). Pair with mechanical locators to avoid fiber damage, reducing failure rates by 60%.
Q4: How reliable is FEA for warpage prediction in titanium?
A: Highly, within 10% if friction and material data are accurate. For turbine blades, FEA predicted 0.03 mm warpage, validated by CMM.
Q5: What's a fast fix for warpage in prototype runs?
A: Use 3D-printed conformal supports or wax embedding. For organic shapes like implants, this eliminates point stresses and speeds validation.
Title: Fixturing technology and system for thin-walled parts machining: a review
Journal: Frontiers of Mechanical Engineering
Publication Date: 2022
Main Findings: Reviewed fixture categories and functions for thin-walled part stability
Methods: Literature synthesis, functional classification
Citation: Liu et al., 2022
Page Range: 55–76
URL: https://doi.org/10.1007/s11465-022-0711-5
Title: Locating and clamping of complex-geometry workpieces which require machining in five planes
Journal: International Journal of Advanced Manufacturing Technology
Publication Date: 2015
Main Findings: Single-plane fixture enables five-surface machining in one setup with minimal displacement
Methods: Auxiliary hole conical-wedge clamps, FEM analysis, experimental displacement measurement
Citation: Tadic et al., 2015
Page Range: 379–391
URL: http://www.ijsimm.com/Full_Papers/Fulltext2015/text14-3_379-391.pdf
Title: Clamping force prediction based on deep spatio-temporal network in machining deformation control
Journal: Scientific Reports
Publication Date: 2023
Main Findings: Dynamic clamp force optimization suppresses thin-walled part deformation
Methods: Voxel-based geometry parameterization, spatio-temporal neural network, experimental validation
Citation: Li et al., 2023
Page Range: 1–12
URL: https://www.nature.com/articles/s41598-023-33666-2
