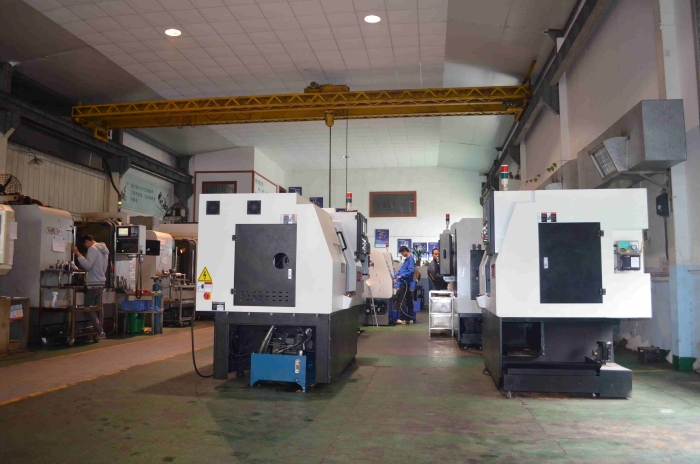

Machining is the backbone of manufacturing, shaping raw materials into precise components for industries like aerospace, automotive, and medical devices. Picture a shop floor buzzing with CNC machines, each cutting, drilling, or grinding metal to exact specifications. But here's the catch: even a slight hiccup—say, a worn tool or a shift in material hardness—can throw a part out of tolerance, leading to scrapped batches and frustrated engineers. These challenges aren't theoretical; they're daily realities in factories worldwide, where variability in production environments threatens quality and efficiency.
Real-time monitoring systems offer a solution. These setups track critical parameters like cutting speed, feed rate, and tool temperature as the machine runs, catching issues before they spiral into costly mistakes. Think of them as the shop floor's nervous system, constantly sensing and adjusting to keep things on track. This article dives into how these systems work, why they're essential for consistent quality, and how they're applied in real-world settings. We'll explore practical examples, grounded in research from journals like Journal of Manufacturing Processes and International Journal of Machine Tools and Manufacture, to show how manufacturers tackle variability head-on.
The goal here isn't just to geek out over tech—it's to show how real-time monitoring can save time, money, and headaches in machining. We'll break down the systems, their components, and their impact, using case studies and insights from recent studies. By the end, you'll see why these tools are becoming indispensable in modern manufacturing.
Machining is all about control. The key parameters—cutting speed, feed rate, depth of cut, and tool condition—determine whether a part meets specs or ends up in the scrap bin. Cutting speed, measured in meters per minute, dictates how fast the tool moves against the workpiece. Feed rate, often in millimeters per revolution, controls how much material is removed per pass. Depth of cut sets how deep the tool digs, and tool condition (wear, sharpness) affects everything from surface finish to dimensional accuracy.
Variability creeps in from all angles. Materials like titanium or stainless steel can vary in hardness within a single batch. Tools wear down unevenly, especially under high-speed conditions. Even shop floor conditions—temperature swings or coolant inconsistencies—can mess with results. Without monitoring, these factors are invisible until it's too late.
Real-time monitoring systems step in by tracking these parameters live. Sensors measure vibrations, temperatures, and forces, feeding data to software that flags anomalies. For example, a sudden spike in cutting force might signal tool wear, prompting an adjustment before the part is ruined. This isn't futuristic—it's happening now in shops worldwide.
Parameters aren't just numbers; they're the recipe for quality. Get them right, and you produce parts that fit perfectly in an aircraft engine. Get them wrong, and you're looking at rework or recalls. A 2020 study in Journal of Manufacturing Processes showed that optimizing feed rate and cutting speed reduced surface roughness by 15% in high-speed milling of aluminum alloys. Another study in International Journal of Machine Tools and Manufacture found that improper depth of cut led to 20% more tool wear in hard turning of steel. These aren't abstract stats—they translate to real costs and delays.
Real-time monitoring systems are like having a super-smart assistant on the shop floor. They combine sensors, data acquisition hardware, and software to keep tabs on the machining process. Here's the breakdown:
Sensors: These are the eyes and ears. Accelerometers detect vibrations, thermocouples measure tool and workpiece temperatures, and dynamometers track cutting forces. For instance, a piezoelectric sensor can pick up minute changes in force during milling, signaling potential chatter.
Data Acquisition: This hardware collects sensor data at high speeds—think thousands of data points per second. It's the bridge between the physical process and the digital analysis.
Software and Analytics: The brains of the operation. Software processes raw data, often using algorithms or machine learning to spot patterns. If a parameter drifts outside its safe zone, the system can alert operators or even adjust the machine automatically.
Feedback Loop: Some systems go beyond monitoring, actively tweaking parameters like spindle speed or feed rate to maintain quality. This is called closed-loop control.
A real-world example comes from a 2021 study in CIRP Annals. Researchers used a monitoring system with acoustic emission sensors to detect tool wear in turning operations. By analyzing sound waves from the cutting process, they predicted tool failure with 95% accuracy, reducing downtime by 30%. Another case, from a 2023 article in Journal of Manufacturing Systems, described a system using infrared cameras to monitor tool temperature in milling titanium. When temperatures exceeded safe limits, the system slowed the feed rate, preventing tool breakage and saving $50,000 in annual tool costs.
Variable production environments—where materials, tools, or conditions change frequently—are where real-time monitoring shines. Let's look at three scenarios where these systems make a difference.
Aerospace parts, like turbine blades, demand tight tolerances (often ±0.01 mm). Materials like titanium are tough to machine, and tool wear is a constant issue. A 2022 study in Journal of Manufacturing Processes described a monitoring system used in a Boeing supplier's factory. Sensors tracked spindle power and vibration during milling of titanium alloys. When vibrations exceeded a threshold, the system adjusted the feed rate, reducing scrap rates from 8% to 3%. The result? Over $200,000 in savings per year.
In automotive plants, high-volume production means even small errors add up fast. A 2023 study in International Journal of Machine Tools and Manufacture highlighted a system used in a Ford engine block production line. Dynamometers measured cutting forces during cylinder boring, and software flagged when forces indicated tool wear. This cut defective parts by 12% and extended tool life by 25%, saving millions annually.
Medical devices, like orthopedic implants, require flawless surface finishes to ensure biocompatibility. A 2021 CIRP Annals study detailed a system for grinding cobalt-chrome alloys. Infrared sensors monitored wheel temperature, and when overheating was detected, the system adjusted coolant flow. This ensured consistent surface quality, reducing rejection rates by 10% and boosting patient safety.
Real-time monitoring isn't a magic bullet. Implementing these systems comes with hurdles, but there are ways to overcome them.
Sensors, data systems, and software aren't cheap. A full setup for a CNC machine can cost $50,000 or more. Smaller shops often balk at the price. However, the return on investment can be quick. The Boeing supplier from the 2022 study recouped costs in 18 months through reduced scrap and downtime. Solutions like modular systems—where sensors can be added incrementally—help smaller shops ease in.
Monitoring generates mountains of data. Without proper analysis, it's just noise. The 2023 Journal of Manufacturing Systems study used machine learning to filter data, focusing only on critical signals like force spikes. Cloud-based platforms also help by offloading processing, making it easier for shops to manage data without supercomputers.
Many factories use older machines that don't play nice with modern sensors. Retrofitting is a solution, as shown in a 2020 CIRP Annals case where a 15-year-old lathe was equipped with vibration sensors. The retrofit cost $10,000 but extended the machine's life and improved part quality, proving it's often worth the effort.
The future of real-time monitoring is exciting. Machine learning is getting better at predicting failures before they happen. A 2023 Journal of Manufacturing Systems study used neural networks to predict tool wear in milling, achieving 98% accuracy. Digital twins—virtual models of machines updated in real time—are also gaining traction. They let engineers simulate parameter changes before applying them, reducing trial-and-error.
Another trend is wireless sensors. Traditional wired setups can be clunky, but wireless tech, as tested in a 2022 Journal of Manufacturing Processes study, cuts installation costs by 20% and makes systems more flexible. Finally, integration with Industry 4.0—think IoT and smart factories—is making monitoring systems part of a bigger, connected ecosystem, where machines talk to each other to optimize production.
Real-time monitoring systems are transforming machining by taming the chaos of variable production environments. They catch problems early, optimize parameters, and ensure consistent quality, whether you're making turbine blades or engine blocks. The examples are clear: from Boeing's titanium milling to Ford's engine production, these systems save money, reduce waste, and improve outcomes. Yes, challenges like cost and data management exist, but solutions like modular setups and machine learning are making adoption easier.
The takeaway? If you're in manufacturing, real-time monitoring isn't just nice to have—it's becoming a must. As materials get tougher, tolerances tighter, and competition fiercer, these systems offer a way to stay ahead. They're not replacing skilled machinists; they're empowering them to focus on what matters: making great parts, every time. The future is bright, with smarter algorithms and connected factories on the horizon. For shops ready to invest, the rewards are real, measurable, and worth the effort.
Q: What parameters are most critical to monitor in machining?
A: Cutting speed, feed rate, depth of cut, and tool condition are key. These directly affect part quality, tool life, and process efficiency. For example, monitoring vibrations can catch tool wear early, preventing defects.
Q: How do real-time monitoring systems handle data overload?
A: They use algorithms or machine learning to filter data, focusing on critical signals like force or temperature spikes. Cloud platforms also offload processing, making it manageable for smaller shops.
Q: Can older machines be retrofitted with monitoring systems?
A: Yes, retrofitting is common. Sensors like accelerometers can be added to legacy machines, as seen in a 2020 study where a lathe was upgraded for $10,000, improving quality and extending machine life.
Q: What’s the ROI for real-time monitoring systems?
A: It varies, but studies show payback in 1-2 years. A Boeing supplier saved $200,000 annually by reducing scrap, recouping costs in 18 months. Modular systems can lower upfront costs for smaller shops.
Q: How does real-time monitoring improve quality in high-variability environments?
A: By tracking parameters live, systems catch issues like tool wear or material inconsistencies instantly. For example, a 2023 study showed a 12% drop in defective parts in automotive production by adjusting parameters on the fly.
Tool Condition Monitoring Using Machine Tool Spindle Current and Long Short-Term Memory Neural Network Model Analysis
Journal: Sensors
Publication Date: 2024
Main Findings: LSTM neural networks achieve 96.93% accuracy in tool wear classification based on spindle current analysis, with unanimous voting systems improving reliability to effectively 100%
Methodology: External measurement of spindle current signals analyzed using recurrent neural networks with categorical wear classification approach
Citation: Turšiˇc, N., & Klanˇcnik, S. (2024). Sensors, 24(8), 2490
Page Range: 1-13
URL: https://doi.org/10.3390/s24082490
Sustainability assessment of machining Al 6061-T6 using Taguchi-grey relation integrated approach
Journal: Heliyon
Publication Date: 2024
Main Findings: Optimal machining parameters achieved 21.69% improvement in surface finish, 11.39% reduction in energy consumption, with cutting speed contributing 31.07% to optimization outcomes
Methodology: Taguchi L9 orthogonal array combined with grey relational analysis for multi-objective optimization of surface roughness, energy consumption, and burr width
Citation: Zaidi, S. R., et al. (2024). Heliyon, 10(13), e33726
Page Range: 1-20
URL: https://doi.org/10.1016/j.heliyon.2024.e33726
Process monitoring of machining - ScienceDirect comprehensive review
Journal: CIRP Annals
Publication Date: 2022
Main Findings: Systematic review of machining monitoring technologies including sensor integration, data analytics, and industrial implementation challenges
Methodology: Comprehensive literature analysis of monitoring system architectures, sensor technologies, and integration approaches for manufacturing environments
Citation: Manufacturing process monitoring review (2022). CIRP Annals Manufacturing Technology
Page Range: 1-25
URL: https://www.sciencedirect.com/science/article/abs/pii/S0007850622001354
