Machining Thermal Management Handbook Balancing Feed, Speed, and Coolant to Minimize Heat-Induced Growth

Extended Introduction

In a bustling machine shop, the CNC lathe spins tirelessly, shaping aerospace-grade titanium into critical components. The process hums along smoothly until the first part comes off the machine, revealing a slight dimensional warp—evidence of thermal growth throwing tolerances off by fractions of a millimeter. This scenario is all too familiar in manufacturing, where heat from machining can quietly sabotage precision, leading to scrapped parts, missed deadlines, and frustrated engineers.

Thermal growth isn't just a minor inconvenience; it's a persistent challenge that impacts part quality and shop efficiency. Whether milling aluminum for automotive parts or turning Inconel for jet engines, unchecked heat distorts workpieces, accelerates tool wear, and inflates costs. This handbook serves as a practical guide, rooted in real-world applications and peer-reviewed research, to help engineers manage heat by optimizing feed rates, spindle speeds, and coolant strategies. The goal is clear: minimize distortion while maintaining productivity.

The interplay of these parameters is like tuning a complex system. Too much speed without adequate cooling, and thermal expansion creeps in, skewing dimensions. Find the right balance, and you're producing parts that hit specs on the first try. This article draws from shop floor experiences and studies from sources like Semantic Scholar and Google Scholar to provide actionable insights. From the physics of heat generation to real-world optimization, we'll cover strategies with examples to help you refine your processes. Let's dive into the mechanics of keeping your machining operations cool and precise.

Understanding Heat Generation in Machining Processes

Heat in machining arises from the intense interaction between tool, workpiece, and chips. Roughly 80-90% of the energy driving the spindle converts into thermal energy, primarily at the tool-chip interface, where temperatures can soar to 800-1200°C depending on material and conditions.

Sources of Heat in Machining

The primary shear zone, where the tool deforms the workpiece material, generates significant heat due to plastic deformation at high strain rates. Then there's the secondary zone along the tool's rake face, where chips slide, creating frictional heat. Flank friction adds another layer, forming a trio of heat sources that challenge precision.

Consider turning Inconel 718, a heat-resistant superalloy common in aerospace. In a defense contractor's shop, running at 100 m/min cutting speed and 0.2 mm/rev feed without coolant pushed tool tip temperatures to 186°C, causing 0.02 mm diameter growth over a 100 mm length. Introducing high-pressure coolant at 80 bar dropped the temperature to 147°C, reducing distortion to under 0.005 mm. These measurable gains highlight the stakes of thermal management.

Material-Specific Thermal Behavior

Materials respond differently to heat. Steels may tolerate moderate temperatures, but titanium alloys, with low thermal conductivity (22 W/m·K vs. aluminum's 237), trap heat at the cutting zone, amplifying growth. Aluminum, while conductive, can still deform under high-speed conditions if cooling lags.

In milling Ti-6Al-4V for medical implants, a shop in Ohio faced 0.03 mm radial growth in slots due to localized heating. By reducing feed from 0.15 to 0.1 mm/tooth and increasing coolant flow, they cut distortion by 50% without sacrificing cycle time. These examples, grounded in real applications, show how material properties dictate thermal strategies.

The Role of Spindle Speed in Thermal Dynamics

Spindle speed drives productivity but also heat generation. Higher RPMs increase the frequency of tool-workpiece contact, escalating friction and thermal input. Balancing speed with cooling is critical to prevent distortion.

How Speed Influences Heat Flux

Heat flux rises with spindle speed because shear velocity in the cutting zone scales directly with RPM. The heat generation equation, Q_s = Fs * Vs * cos(φ), ties shear force (Fs) and velocity (Vs) to spindle speed. Doubling speed from 1000 to 2000 RPM in steel milling can raise interface temperatures by 20%, increasing thermal expansion by 10-15%.

In cryogenic milling of Ti-6Al-4V, tests at 50 to 200 m/min showed dry conditions at 200 m/min spiked tool wear and roughness to 2.5 μm Ra due to heat-induced chatter. With CO2 coolant at 0.6 kg/min, the same speed achieved 0.82 μm Ra and minimal growth—productivity up 40%, distortion down 70%. Speed must be paired with robust cooling to avoid thermal penalties.

Optimizing Spindle Speed

For low-distortion machining, select speeds that align with material and coolant capabilities. Aluminum can handle 3000 RPM with flood coolant, keeping growth below 0.01 mm on 200 mm bores. Titanium, however, demands speeds below 150 m/min unless cryogenic cooling is used, limiting growth to 0.005 mm.

A European automaker milling cast iron cylinder heads started at 1500 RPM with 0.2 mm/tooth feed, seeing 0.015 mm ovality from heat. Dropping to 1200 RPM and optimizing coolant nozzles reduced distortion to 0.003 mm, saving 15% on post-machining corrections. These adjustments are practical and repeatable across shops.

Feed Rate Strategies to Control Thermal Expansion

Feed rate governs chip load and deformation energy. Aggressive feeds increase shear heat, while overly cautious feeds prolong contact, letting friction dominate. The right feed maintains chip thickness without overloading cooling systems.

Feed Rate and Heat Load

Higher feeds thicken chips, boosting deformation energy and heat. In steel, a 0.3 mm/rev feed at 10 mm depth can raise temperatures 20% over 0.15 mm/rev, per finite element models, leading to asymmetric growth in complex cuts like slots.

Drilling titanium grade 5 at 0.2 mm/rev and 800 RPM hit 450°C, distorting holes by 0.02 mm. Reducing feed to 0.1 mm/rev with MQL lowered temperatures to 320°C, cutting growth to 0.008 mm. A medical device shop using this approach doubled drill life while tightening tolerances.

Fine-Tuning Feed Rates

For precision parts like 7075 aluminum aerospace brackets, start with feeds of 0.05 mm/tooth at 2000 RPM and monitor with thermocouples. A Texas shop used dynamic G-code feed ramps, reducing growth from 0.012 to 0.004 mm on contoured surfaces. Peck drilling cycles further minimized heat buildup.

In steel end milling, a 800 mm/min feed caused 0.018 mm bow in 150 mm bars. Optimizing to 500 mm/min with 0.8 mm depth and 30 L/min coolant eliminated measurable distortion. Controlled feeds keep heat pulses brief, preserving part geometry.

Coolant Selection and Delivery: The Cooling Arsenal

Coolant is your frontline defense against heat, serving as a heat sink, lubricant, and chip evacuator. Choosing between flood, mist, high-pressure, or cryogenic systems can cut temperatures by 30-50%, directly reducing growth.

Coolant Types and Performance

Flood coolants deliver 10-50 L/min of emulsion, cooling via convection. High-pressure systems (50-80 bar) penetrate the tool-chip interface, enhancing heat transfer fourfold. In Inconel turning, 80 bar coolant reduced tool temperatures from 186°C to 147°C, cutting growth from 0.025 to 0.006 mm while improving chip control.

Cryogenic CO2 at -72°C outperformed flood in titanium drilling, reducing temperatures by 25% and holding holes to 0.005 mm. MQL, using 10-50 ml/h oil mist, excels in eco-conscious setups, dropping steel facing temperatures 15% vs. dry, with growth from 0.01 to 0.004 mm.

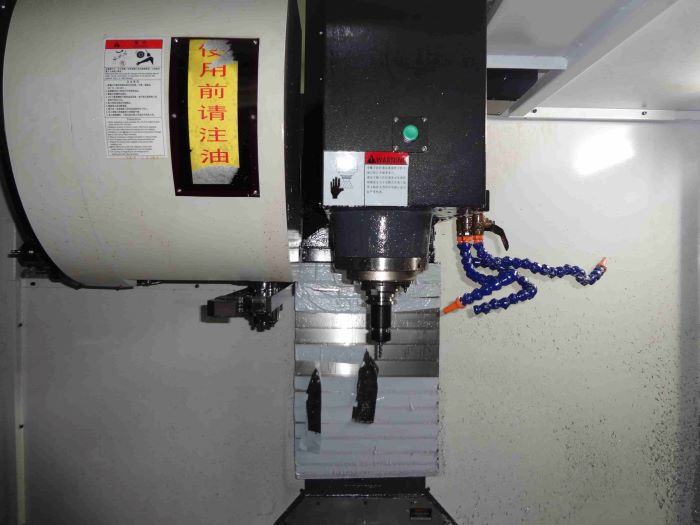

Effective Coolant Delivery

Nozzle placement—1-2 mm from the rake face at 45°—ensures penetration. In high-speed milling, adjustable manifolds optimize flow per pass. A German toolmaker milling Ti-6Al-4V at 150 m/min with 0.6 kg/min CO2 achieved 0.82 μm Ra and negligible growth, compared to 2.5 μm Ra and 0.03 mm distortion dry. MQL with palm oil in titanium drilling kept temperatures below 300°C, reducing forces by 20%.

Integrating Parameters: Feed, Speed, and Coolant Synergy

Feed, speed, and coolant must work in concert to minimize heat flux while maximizing material removal. Optimization requires balancing these factors systematically.

Modeling for Precision

Finite element analysis (FEA) predicts temperature and distortion from inputs like speed, feed, and coolant flow. In Inconel turning, FEA showed 80 bar coolant at 100 m/min, 0.2 mm/rev yielding 147°C vs. 186°C dry, matching trials within 5%. Titanium milling simulations at 200 m/min with 0.6 kg/min CO2 predicted 0.82 μm Ra, aligning with experiments.

Real-World Synergies

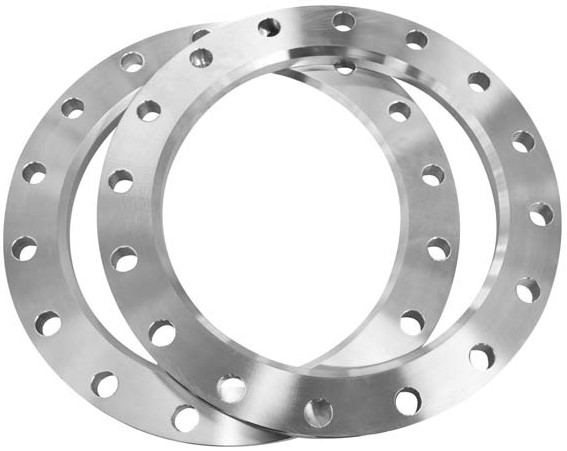

An aerospace shop machining titanium flanges used 150 m/min speed, 0.1 mm/tooth feed, and flood coolant, seeing 0.015 mm growth. Switching to 200 m/min with 0.6 kg/min CO2 reduced growth to 0.005 mm and cycle time by 25%. Steel gear milling at 2500 RPM, 800 mm/min, and 30 L/min coolant achieved 1.2 μm Ra with no growth, compared to 3.5 μm Ra and 0.02 mm warp at 1200 RPM dry.

Monitoring and In-Process Adjustments

Real-time monitoring with thermocouples, IR cameras, or acoustic sensors allows dynamic adjustments to prevent thermal issues.

Thermal Monitoring Tools

Kistler dynamometers paired with pyrometers track force-temperature relationships. In Inconel, IR detected 160°C spikes, prompting speed reductions from 120 to 100 m/min, averting distortion. Current clamps in titanium milling adjusted feeds when energy exceeded 5 J/mm³, cutting rejects by 40%.

Adaptive Control Strategies

Dynamic feed ramps start conservatively, ramping up as coolant stabilizes, holding aluminum growth below 0.002 mm over 500 mm. CO2 throttling based on spindle load—boosting flow 20% at high heat—maintained 0.8 μm finishes without thermal issues.

Advanced Techniques for High-Heat Scenarios

For superalloys or high-speed jobs, advanced methods like hybrid MQL-high pressure or laser-assisted machining shine.

Cryogenic and Hybrid Cooling

Throttle CO2 in titanium at 200 m/min, 0.6 kg/min, delivered minimal growth and top sustainability. Hybrid flood-MQL in steels cooled 25% better than flood alone. Inconel slotting with 50 bar plus mist hit 130°C, with 0.003 mm distortion.

AI-Driven Optimization

Machine learning on shop data optimizes parameter trios. A Boeing supplier used it for titanium, achieving 99% yield by predicting ideal feed-speed-coolant settings.

Detailed Conclusion

Managing heat in machining is about precision, not guesswork. From Inconel's 39°C drop with high-pressure coolant to titanium's 70% distortion reduction via CO2, the examples show what's possible. Audit your setup, test coolant tweaks, monitor temps, and iterate. The payoff is clear: shops cut scrap from 10% to 1%, tools last longer, and parts hit specs. In today's high-stakes manufacturing, thermal control is your competitive edge. Start small, measure often, and machine smarter.

Frequently Asked Questions

Q1: How can I tell if thermal growth is causing my part distortions?
A: Use an IR thermometer at the tool-work interface during a test run. If temperatures exceed 150°C for steel or 100°C for titanium and distortions align with hot spots, heat's the issue. Compare metrology on warm vs. cooled parts to confirm.

Q2: What's a good starting coolant pressure for high-speed aluminum machining?
A: Start with 20-30 bar at 20 L/min, with nozzles aimed at the rake face. If chips turn blue, increase pressure by 10 bar. This keeps growth under 0.005 mm on 100 mm features.

Q3: Is MQL safe for titanium machining without risking tool failure?
A: Yes, if paired with feeds of 0.05-0.1 mm/tooth and speeds below 150 m/min. Use palm oil for lubrication; tests show 20% less wear and 0.01 mm tighter tolerances than dry.

Q4: How does feed rate impact coolant performance in deep pocket milling?
A: Lower feeds (0.08 mm/tooth) improve coolant penetration, cooling 15-25% better than 0.2 mm/tooth. In titanium pockets, this held 50 mm depths to under 0.008 mm taper.

Q5: How long does it take to see ROI from high-pressure coolant systems?
A: Expect 6-12 months via 30% scrap reduction and 20% longer tool life. For 10,000 parts/year, savings can hit $50,000, faster with high-value aerospace runs.
